Setting All Sub Channel Factor/Offset (All SubChannel Factor/Offset -
CAN or CAN FD Data Conversion Condition)
4.
Tap All SubChannel Factor/Offset, or press the soft key. The following screen appears.

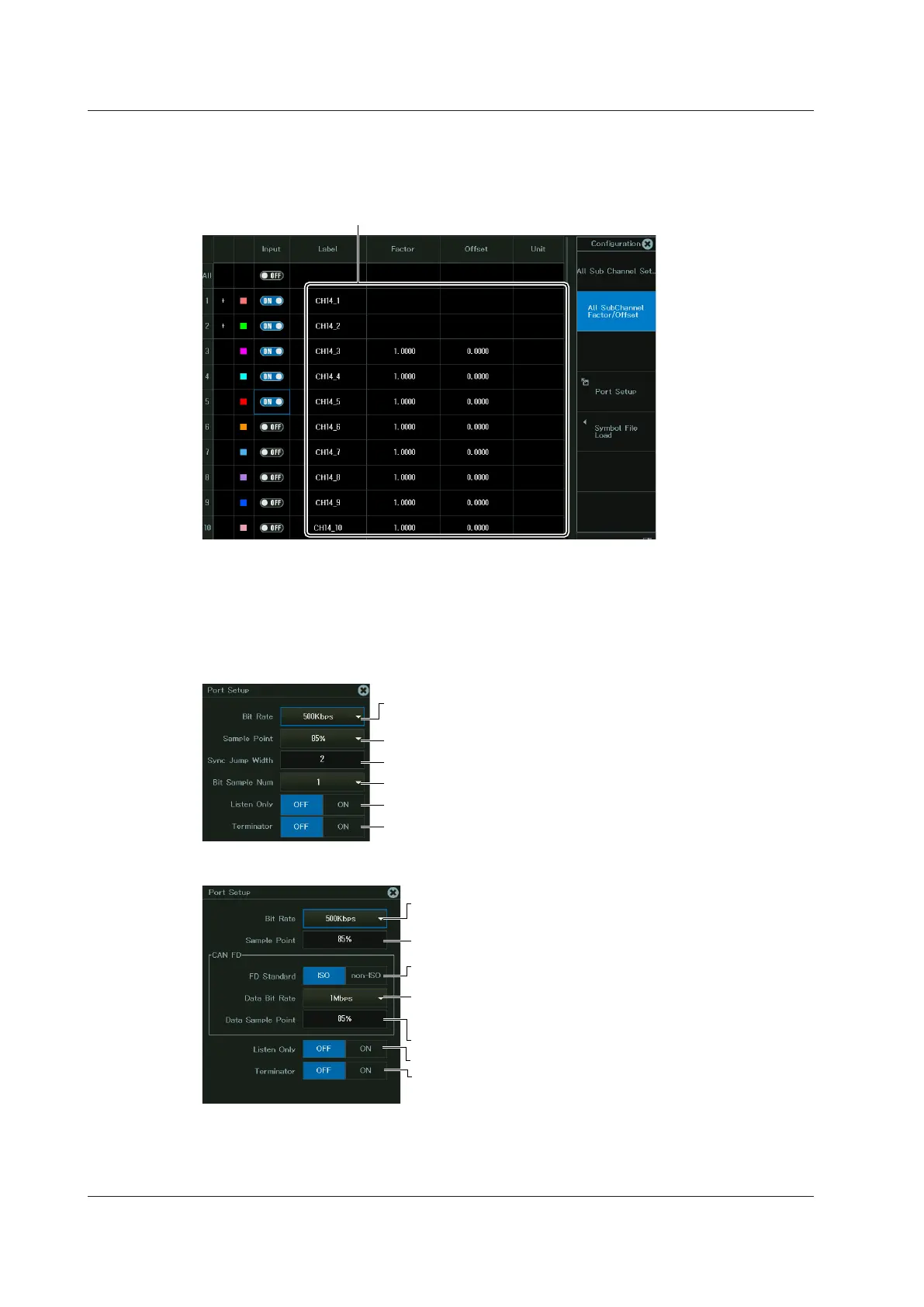

CAN or CAN FD data conversion conditions
5.
Tap each item. Use the displayed input box to set the items.
Port Setup (Port Setup)
4.
Tap Port Setup, or press the soft key. The following screen appears.
CAN Bus Signal Monitoring (for the 720240 (CAN MONITOR), 720241 (CAN & LIN)
modules)
Set the bit rate (10k, 20k, 33.3k, 50k, 62.5k, 66.7k, 83.3k,
100k, 125k, 200k, 250k, 400k, 500k, 800k, 1Mbps).
Set the sample point (71%, 78%, 85%).
Set the sync jump width (1 to 4).
Set the number of sample points (1, 3).
Turns listen only on or off
Turns the terminator on or off
CAN and CAN FD Bus Signal Monitoring (for the 720242 (CAN/CAN FD) module)
Set the bit rate (10k, 20k, 33.3k, 50k, 62.5k, 66.7k, 83.3k,
100k, 125k, 200k, 250k, 400k, 500k, 800k, 1Mbps).
Set the data bit rate (10k, 20k, 33.3k, 50k, 62.5k, 66.7k,
83.3k, 100k, 125k, 200k, 250k, 400k, 500k, 800k, 1M, 2M,
3M, 4M, 5Mbps).
Set the CAN FD standard (ISO, non-ISO).
Set the sample point (65% to 90%).
Set the data sample point (65% to 90%).
Turns listen only on or off
Turns the terminator on or off
