YOKOGAWA ScopeCorder DL950 User Manual

2-39
IM DL950-02EN
Loading Definition Files (Symbol File Load)
4.
Tap Symbol File Load, or press the soft key. A file list appears.
5.
On the file list, tap a symbol file (SBL file).
For details on file list operations, see section 19.10.
6.
Tap Load. A confirmation message appears.
7.
Tap OK. The symbol file is loaded.

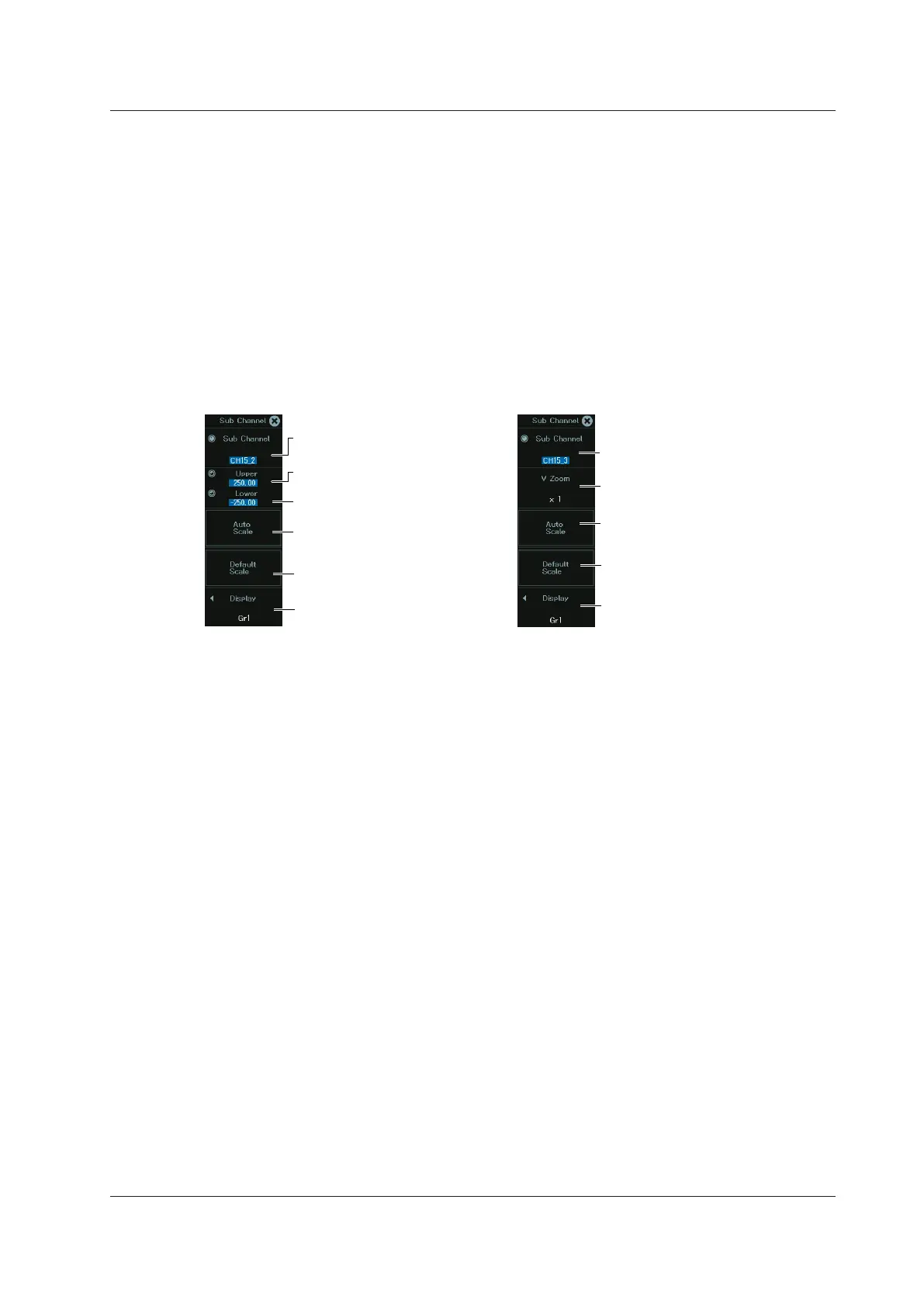

Setting the Scale and Display Groups (Sub Channel)
3.
Tap Sub Channel, or press the soft key.
When the Data Type (Value Type) is Logic
Set the upper
display range limit.
Executes auto scale
Executes default scale
Vertical zoom
Set the lower display
range limit.
Executes auto scale
Executes default scale
Select the sub channel that
you want to set.
Select the sub channel that
you want to set.
When the Data Type (Value Type) Is
Unsigned, Signed, or Float
Display settings
► sec. 2.1
Display settings
► sec. 2.1
2.9 Configuring the Monitoring of CAN and CAN FD Bus Signals (/VCE option)
