One-Shot Output Setup (One shot out Setup)
3.
Tap One Shot Out Setup, or press the soft key. The following screen appears.

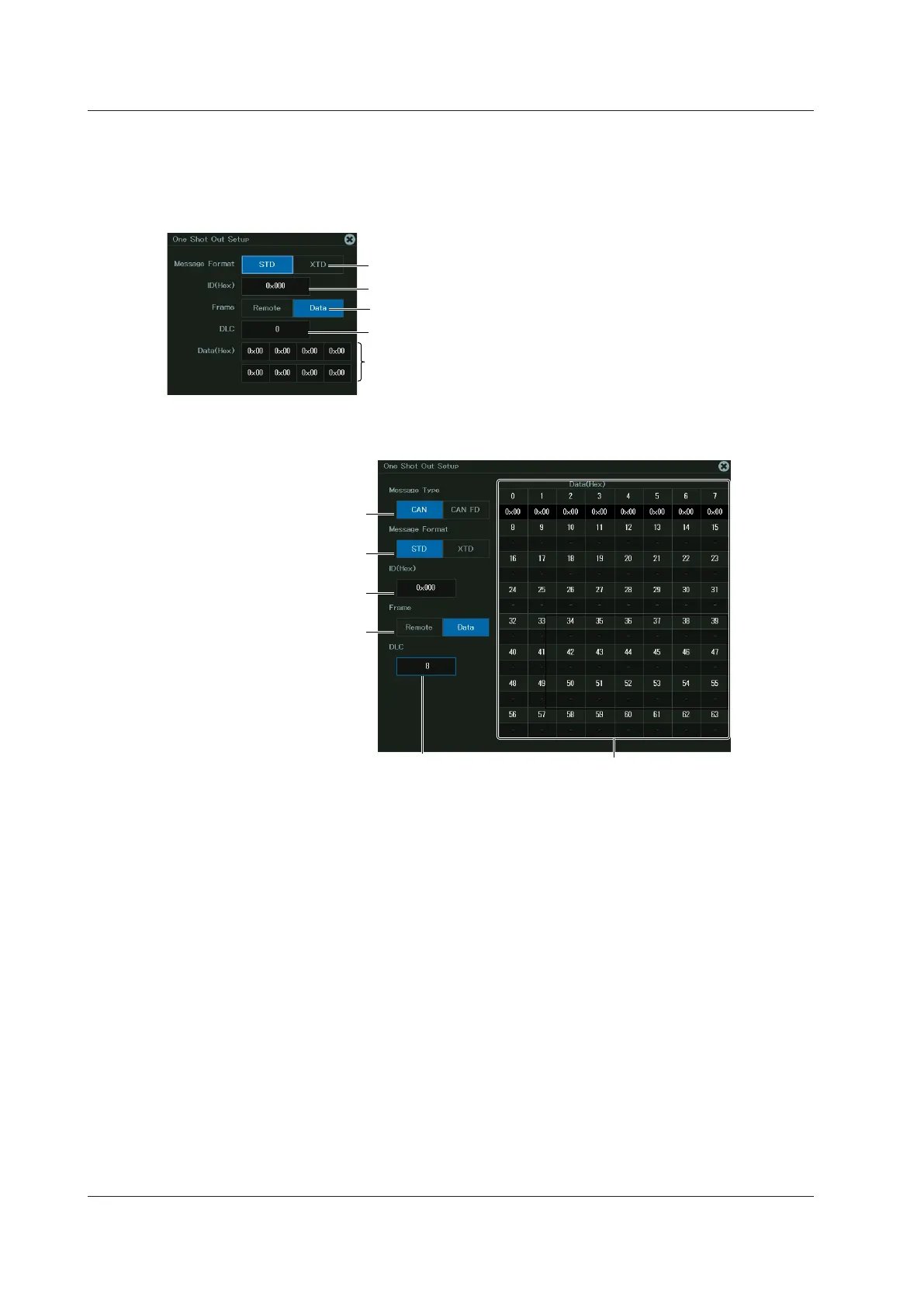

CAN Frame One-Shot Output (for the 720240 (CAN MONITOR), 720241 (CAN & LIN) modules)
* Can only be set when Frame is set to Data.
Set the message format (STD, XTD).
Set the message ID.
Set the frame (Remote, Data).
Set the data area byte size (0 to 15).*
Set the data.
CAN or CAN FD Frame One-Shot Output (for the 720242 (CAN/CAN FD) module)
* Can only be set when Frame is set to Data.
Set the frame (Remote, Data).
You can set this only when the
message type is CAN.
It is fixed to Data for CAN FD.
Set the message type
(CAN, CAN FD).
Set the message format
(STD, XTD).
Set the message ID.
Set the data area byte size (0 to 15).*
Data*
The number of transmission
data bytes that can be set varies
depending on the message type
and DLC settings.
► Next page
