Detail Setup (Detail)
2.

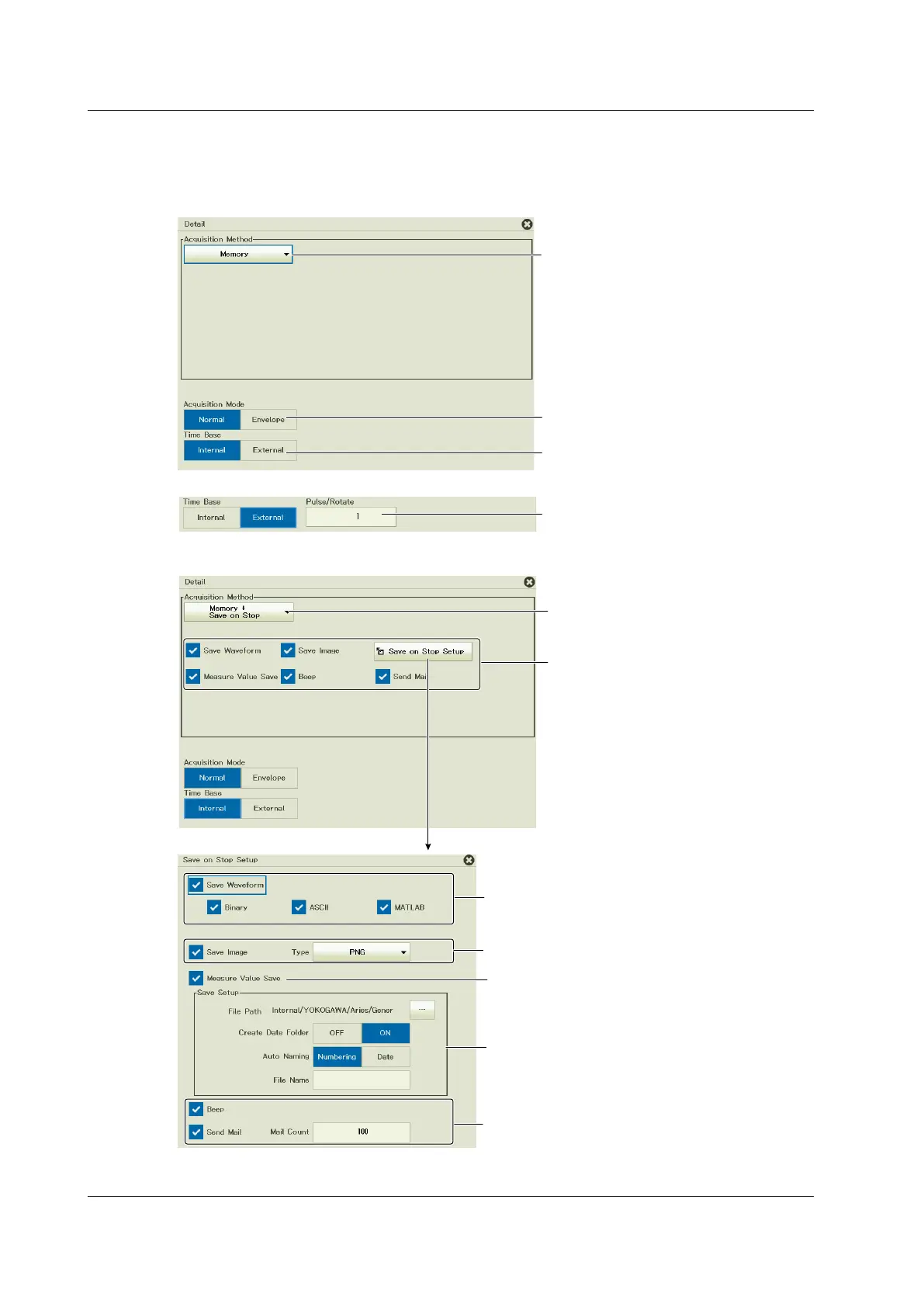

Tap Detail, or press the soft key. The following screen appears.
When Acquisition Method Is Set to Memory
Set the acquisition method.
Select Memory.
Set the time base.
When the time base is External
Set the pulse count or
rotation count.
Set the acquisition mode.
► sec. 3.1
When Acquisition Method Is Set to Memory + Save on Stop
Set the acquisition method.
Select Memory + Save on Stop.
Set action to perform when data
acquisition is completed.
Detail setup
Turn waveform data saving on or off,
and set the data format.
Turns waveform parameters
saving on or off
Set the save destination and the file
name for waveform parameters.
Turns beep sound and mail
transmission on or off
Turn image data saving on or off, and set
the data format.
3.2 Setting Conditions for Waveform Acquisition (Recorder mode)
