3-10
IM DL950-02EN
Capture Mode (Capture Mode)
Set when to start or stop waveform acquisition when the START/STOP button is pressed.
There are two capture modes: Auto and On Start.
Auto (Auto): Low-speed sampling and high-speed sampling waveforms are aquired from
when acquisition is started until it is stopped. In high-speed sampling, when
the acquirable history waveform data is acquired, old history waveforms are
overwritten in order.
On Start (On Start): In low-speed sampling, when the specified record length of data or 10
divisions of data is acquired after starting waveform acquisition, waveform
acquisition stops. In high-speed sampling, when the acquirable history
waveform data is acquired, waveform acquisition stops.
Display Format (Format)
1.

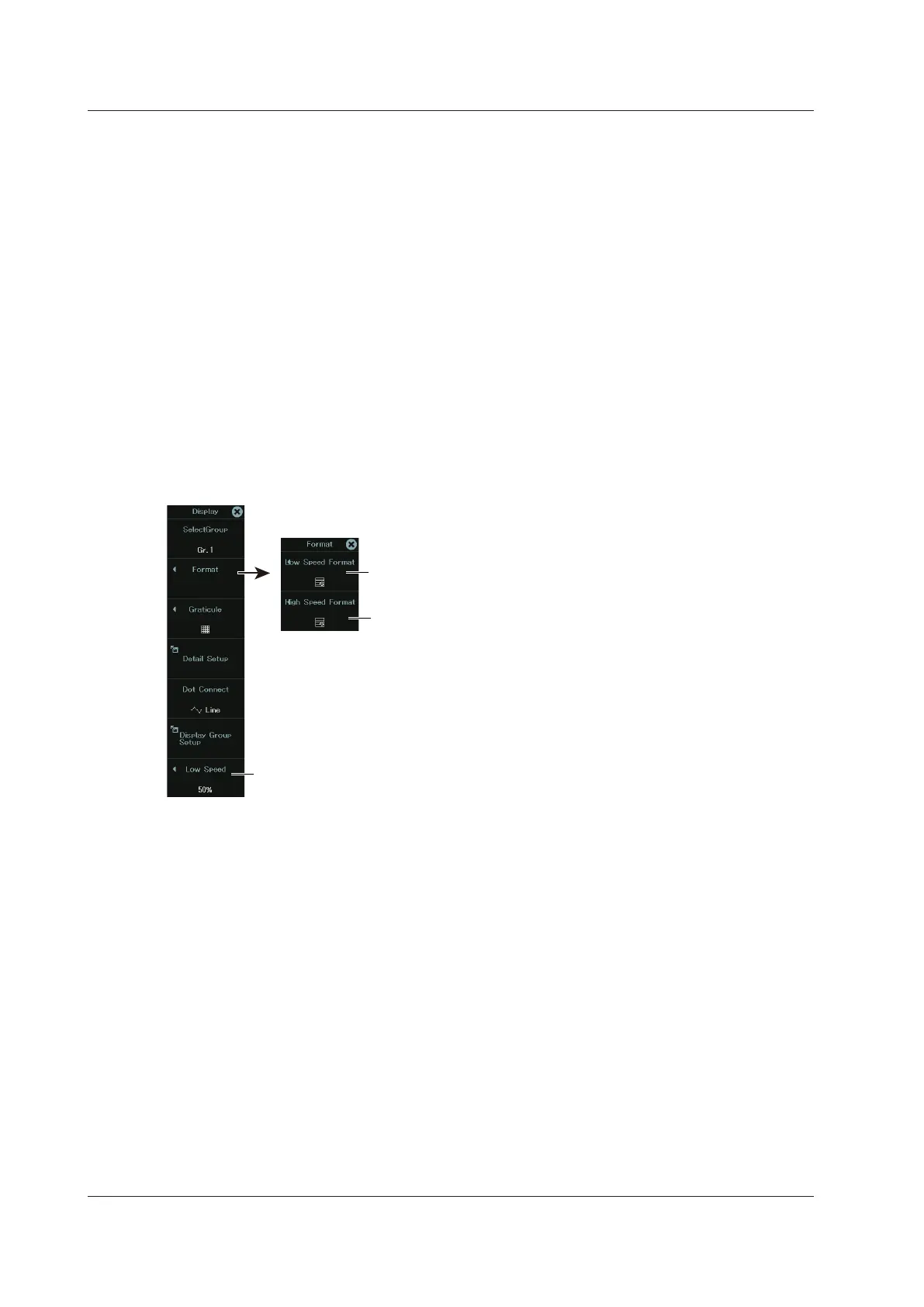

With dual capture turned on, on the waveform screen’s MENU, tap DISPLAY > DISPLAY, or
press DISPLAY. The Display menu appears.
2.
Tap Format, or press the soft key.
Display format (number divisions) of
low-speed sampling waveforms
Set the display ratio of low-speed
sampling waveforms.
Display format (number divisions) of
high-speed sampling waveforms
3.
Set the display format (number divisions) for low-speed sampling and high-speed sampling.
For details on the display format and other settings, see chapter 5, “Display.”
Configuring the Waveform Display Area
2.
Tap Low Speed, or press the soft key.
3.
Set the percentage of the entire waveform display area that the low-speed sampling waveform
will occupy.
3.4 Using the Dual Capture Feature (Scope mode only)
To Next Page
