ZOOM
For details on zoom, see chapter 7, “Zooming In on or Out of Waveforms.”
1.
With dual capture turned on, on the waveform screen’s MENU, tap ANALYSIS > ZOOM, or
press ZOOM. The Zoom menu appears.
Selects low-speed or
high-speed
Turns zoom waveform
display on or off
Set the zoom position.
Moves the zoom
position to the most
recent data position

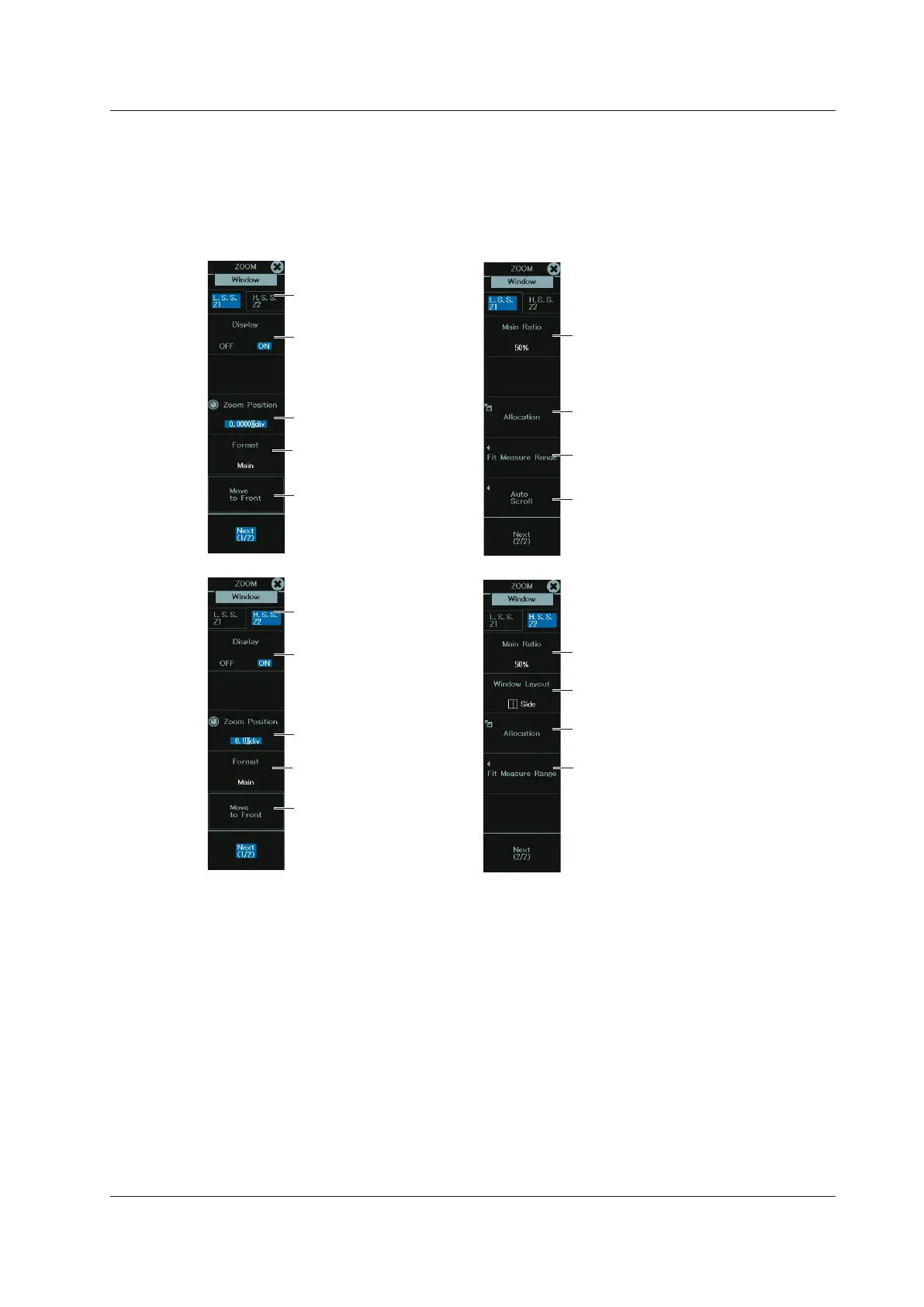

Low-speed sampling ZOOM menu (1/2)
Low-speed sampling ZOOM menu (2/2)
Set the zoom source
waveforms.
Automatically scrolls the
zoom position of low-speed
sampling
Set the main window’s
display ratio.
Set the waveform parameter
measurement range to the
zoom area.
Set the display format.
Selects low-speed or
high-speed
Turns zoom waveform
display on or off
Set the zoom position.
High-speed sampling ZOOM menu (1/2)
High-speed sampling ZOOM menu (2/2)
Set the arrangement of the main
window and zoom window
(Side, Vertical).
Set the zoom source
waveforms.
Set the main window’s
display ratio.
Set the display format.
Moves the zoom
position to the most
recent data position
Set the waveform parameter
measurement range to the
zoom area.
2.
Set the zoom waveforms for low-speed sampling and high-speed sampling.
