Zebra ZXP 9 Series User Manual

P1086708-001 ZXP Series 9 Card Printer Service Manual 103
Operation
Loading the Laminate

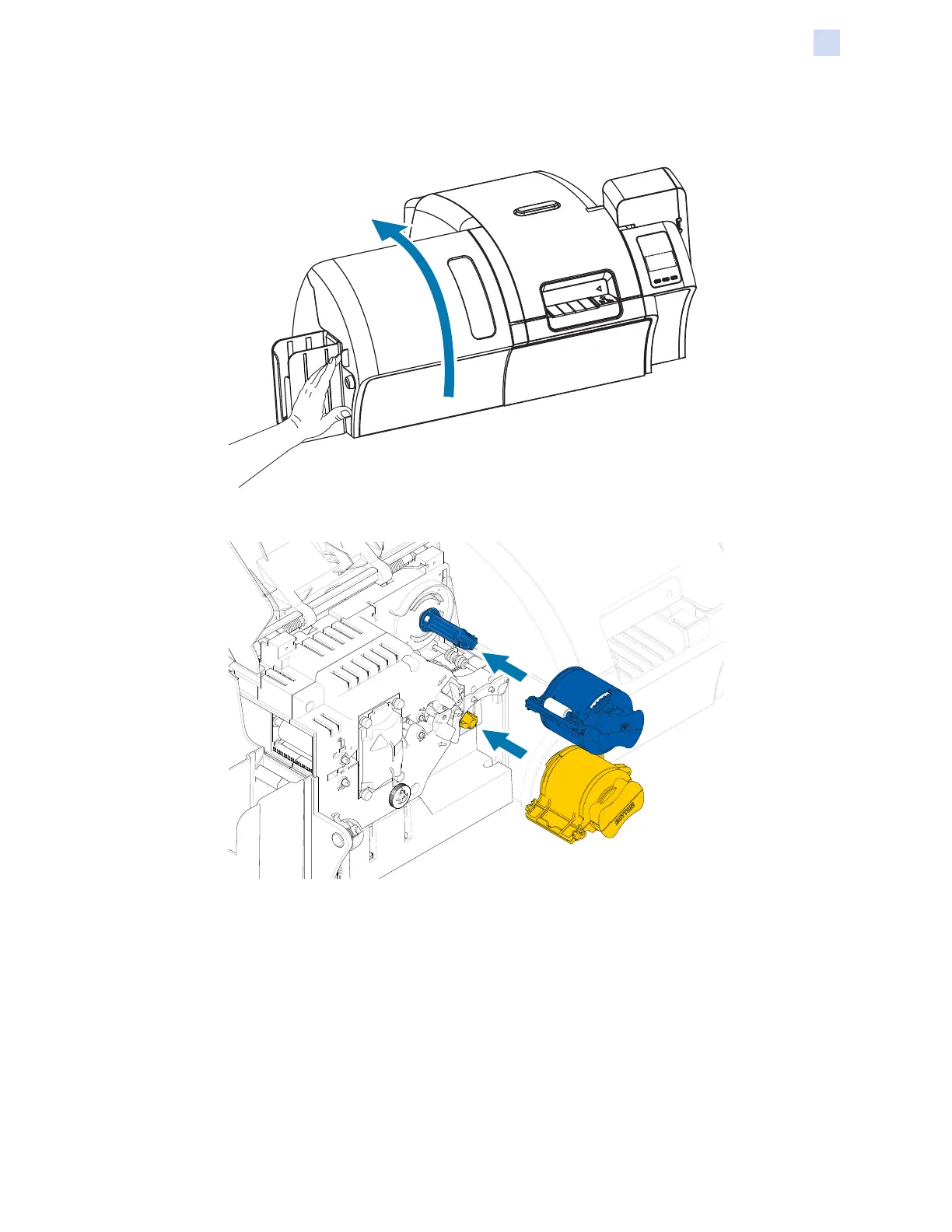

Step 12. Grasp the door at the side tab front and pull forward and lift the door to its upright
position.
Step 13. Slide the cassette onto the spindle.

Zebra ZXP 9 Series Specifications

General

Resolution	300 dpi
Card Capacity Output	100 cards
Memory	64 MB
Interface	USB, Ethernet
Operating Humidity	20% to 80% non-condensing
Print Technology	Dye Sublimation
Print Speed YMCK	Up to 190 cards/hour
Card Capacity Input	100 cards
Card Sizes	CR-80 ISO 7810
Connectivity	USB, Ethernet
Operating System	Windows, Linux
Options	Magnetic stripe encoding
Power Requirements	100-240V AC, 50/60Hz
Operating Temperature	15°C to 35°C
Card Thickness	10-40 mil
