268 ZXP Series 9 Card Printer Service Manual P1086708-001

Replacement Procedures for the Printer

Procedures: InTM Payout Assembly

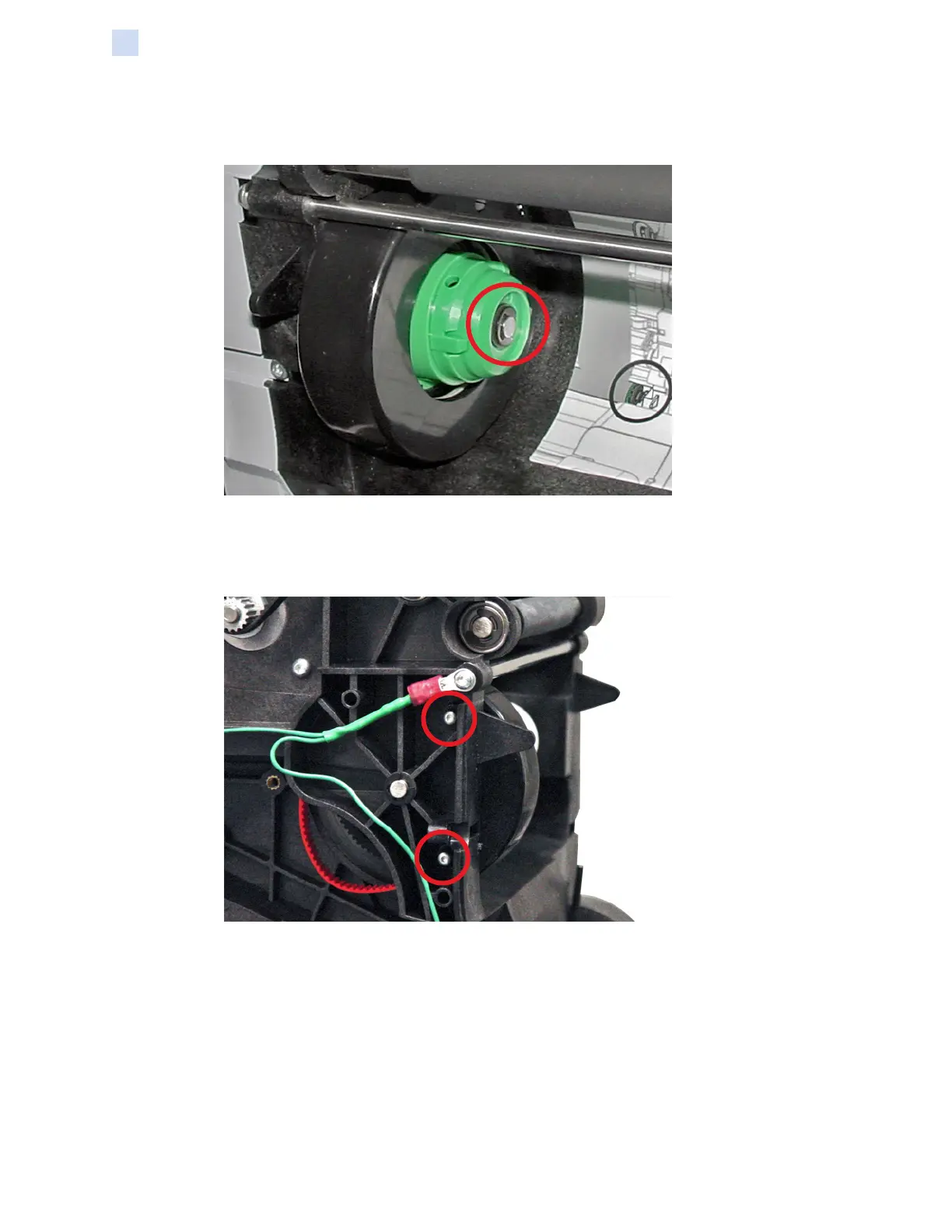

Step 12. With a small at-blade screwdriver, carefully remove the c-clip holding the spindle

hub in place and slide it off the shaft.

Step 13. Set the spindle hub aside.

Step 14. With a TORX T6 driver, remove the two screws (circled below) holding the spindle

cover in place.
