P1086708-001 ZXP Series 9 Card Printer Service Manual 269

Replacement Procedures for the Printer

Procedures: InTM Payout Assembly

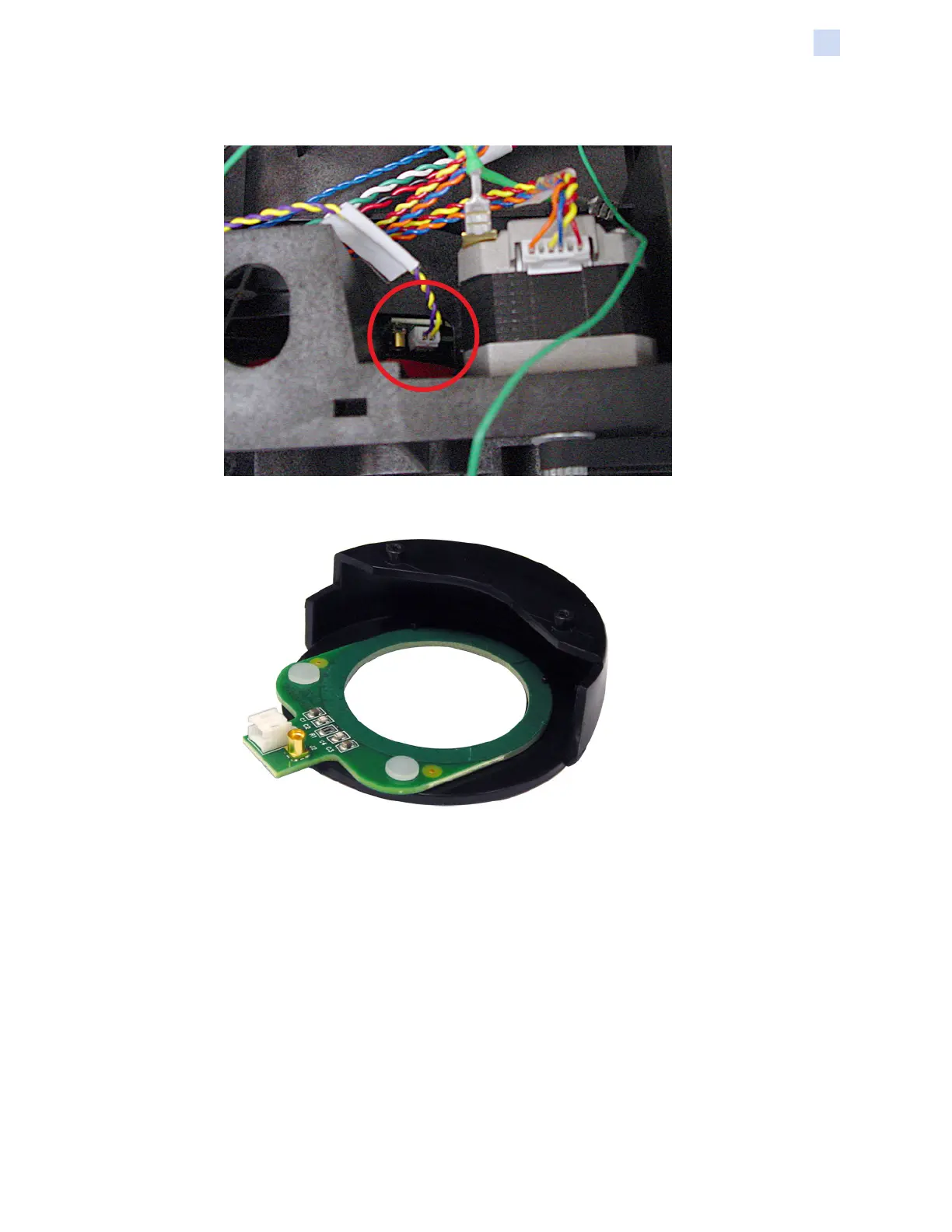

Step 15. Disconnect the plug to the InTM coupler PCBA.

Step 16. Remove the spindle cover (and InTM coupler PCBA).

Step 17. Set the spindle cover (and InTM coupler PCBA) aside.
