270 ZXP Series 9 Card Printer Service Manual P1086708-001
Replacement Procedures for the Printer
Procedures: InTM Payout Assembly

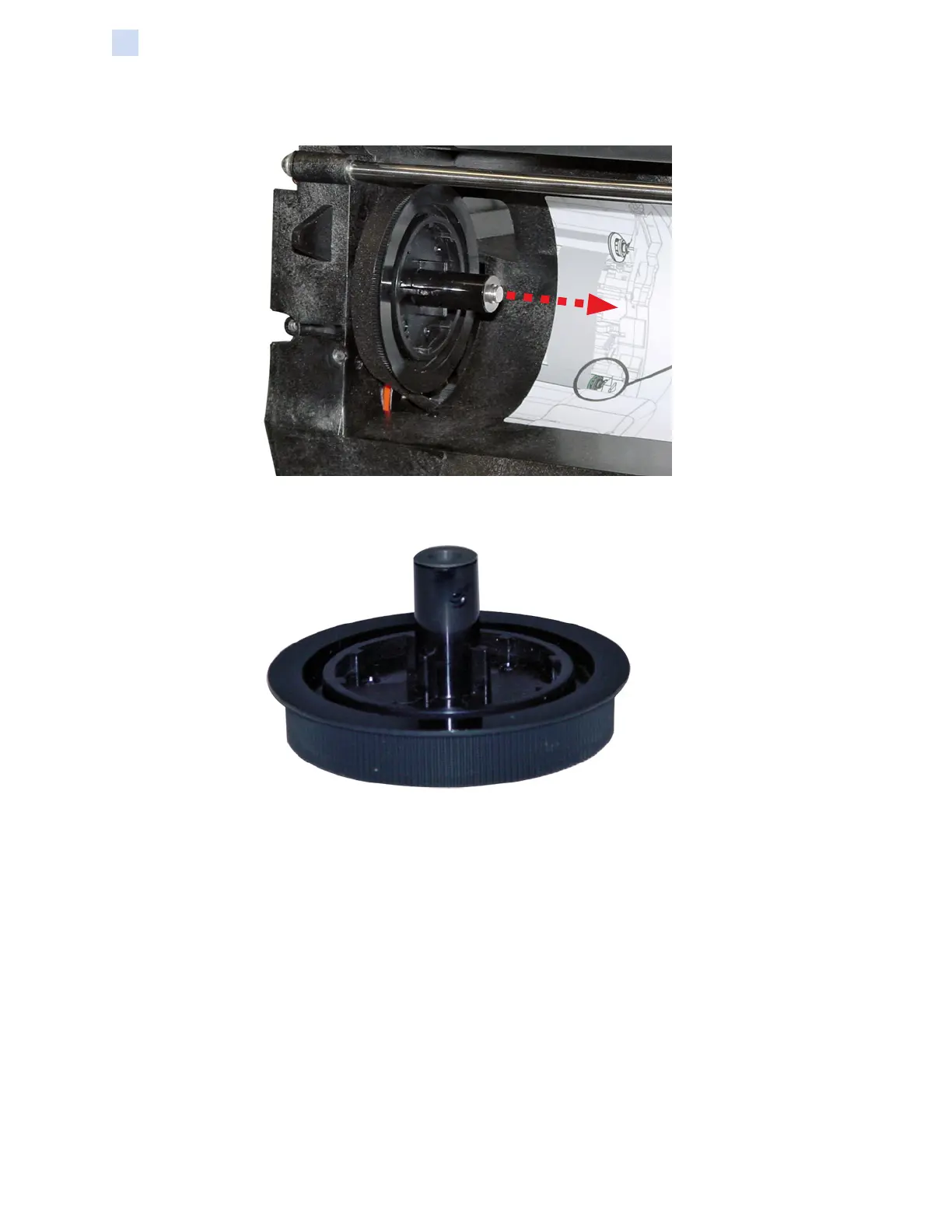

Step 18. Slide the pulley off the shaft.
Step 19. Set the pulley aside.
Replacement
Replacement is performed by reversing the removal steps. You will need to adjust the belt tension
using the InTM Payout Tool (see “Tests and Adjustments” on page 271).
