Replacement Procedures for the Printer
Procedures: Main PCBA
Restore the Driver and Printer Settings

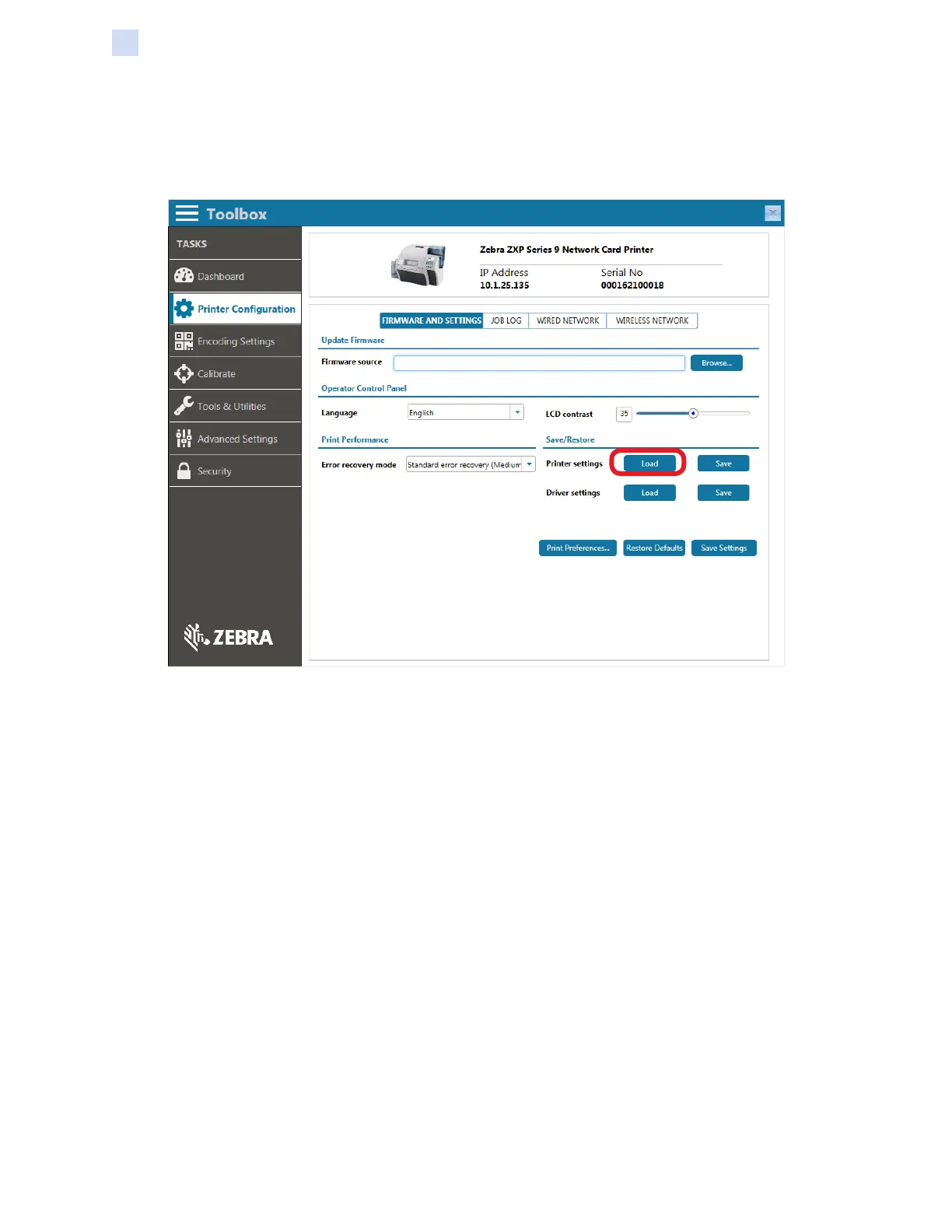

Step 5. From the Toolbox, select the Printer Conguration tab. From the Firmware and
Settings menu, restore the printer settings by clicking Load (circled below).
Step 6. Select the printer settings le and click Open.
Step 7. Adjust Ribbon Torque—see “Tests and Adjustments” on page 302.
Step 8. Enter Printhead Resistance— see “Tests and Adjustments” on page 286.
Step 9. Reset the Serial Numbers (printer, laminator)
Step 10. Adjust Patch Length and Position
