CELL-DYN
®
3/35 Sample Loader TS Guide 9140234B-June 1997
TROUBLESHOOTING
IP - 5 No Lights, Some Other Functions Work, 1 of 3
1 - 19
1
Search
Book TOC
Go Back

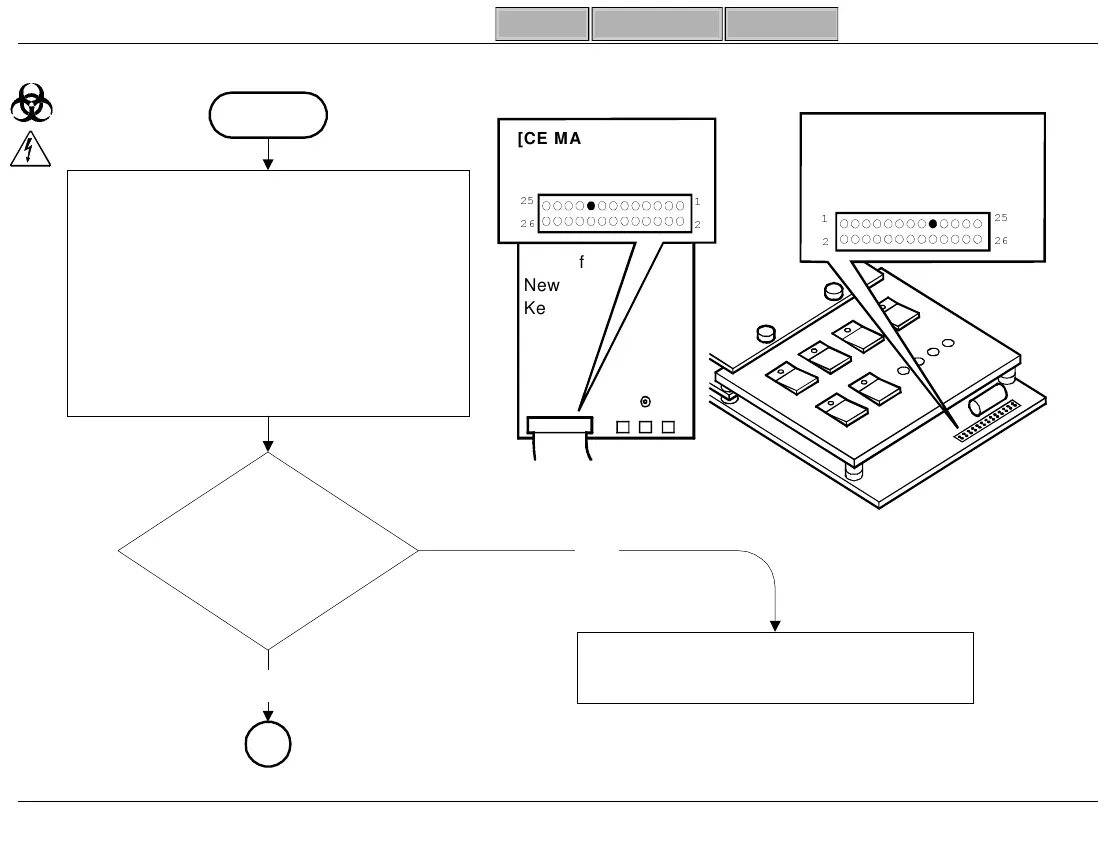

IP - 5 No Lights, Some Other Functions Work, 1 of 3
- Ensure Power Cord Properly
Connected and Sample Loader
Power
ON
(1)
- Seat CN1 on CPU Main Bd
- Seat Cable from CPU Main Bd
CN2 to Keyboard CN2
- Check +5V to Keyboard, See
figure on this page
Keyboard CN2
Pin 17(+) to GND
= +5V±0.2
?
Replace Keyboard (PL-9.3; See
Interrelationship Matrix - Pg. 3-4)
Yes
No
1
START
SL-116B
[NON- CE MARK]
Pin 17 to GND = +5V
CN2




[CE MARK]
Pin 17 to GND = +5V




Back of
New
Keyboard
