CELL-DYN
®
3/35 Sample Loader TS Guide 9140234B-June 1997
TROUBLESHOOTING
IP - 11 Alarm 4 (e and j) Time-out Moving X-Axis, 5 of 8
1 - 37
1
Search
Book TOC
Go Back

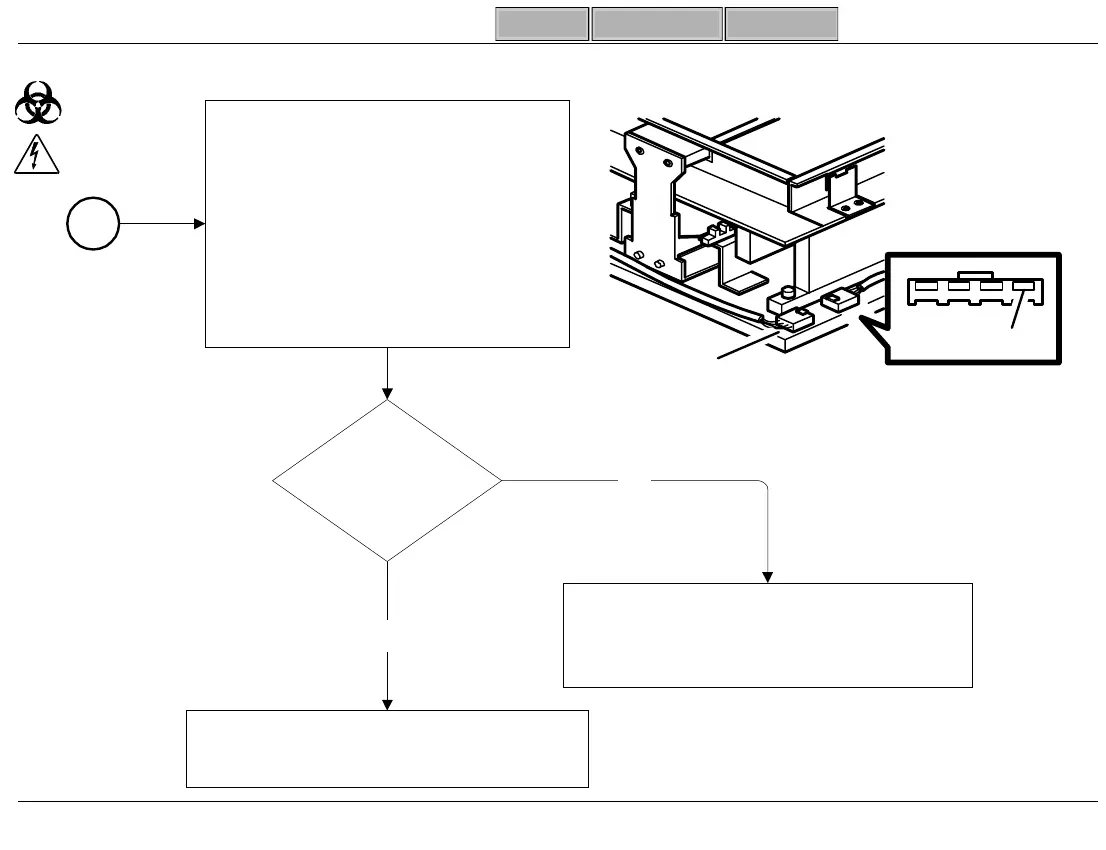

IP - 11 Alarm 4 (e and j) Time-out Moving X-Axis, 5 of 8
X-Axis Motor
Check OK
?
Replace X-Axis Motor and CPU Main
Bd. (PL-3.7 & PL-8.1; See
Interrelationship Matrix - Pg. 3-4)
Replace CPU Main Bd. (PL-8.1; See
Interrelationship Matrix - Pg. 3-4)
Yes
No
B2
Measure Ohms at X-Axis Motor
Side of In-Line Connection
1 to 2 =
≈
8 Ohms
3 to 4 =
≈
8 Ohms
1 to 3 = OPEN
1 to 4 = OPEN
2 to 3 = OPEN
2 to 4 = OPEN
SL-258B
1
X-Axis
In-Line Connector
for E & G Loaders
(F Loader - At Back of Tower)
