CELL-DYN
®
3/35 Sample Loader TS Guide 9140234B-June 1997
TROUBLESHOOTING
IP - 11 Alarm 4 (e and j) Time-out Moving X-Axis, 4 of 8
1 - 36
1
Search
Book TOC
Go Back

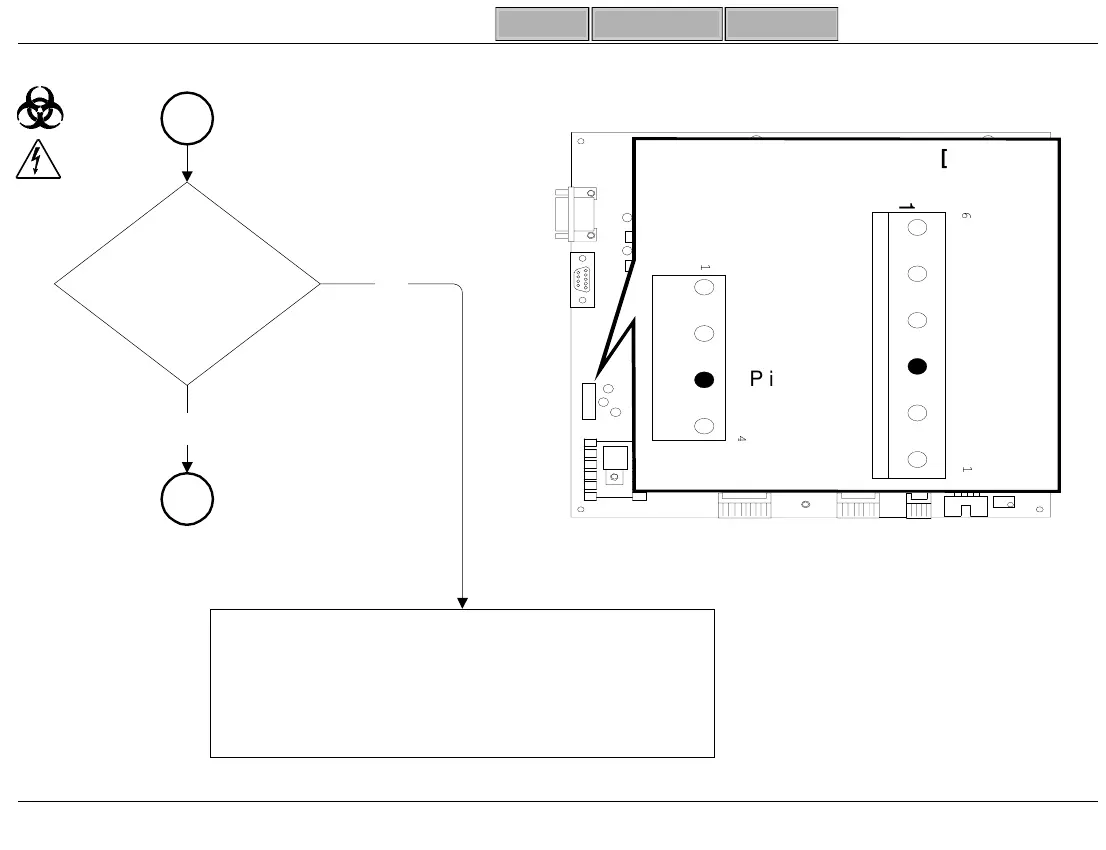

IP - 11 Alarm 4 (e and j) Time-out Moving X-Axis, 4 of 8
CPU Main Bd.
CN1 Pin 3 to GND
= +24V±1
?
No
Yes
B1
[CE MARK]
- Replace Power Supply (PL-10.7)
[NON-CE MARK]
- Replace +24V Power Supply (PL-10.8)
(See Interrelationship Matrix - Pg. 3-4)
SL-148D
CN1


Pin 3 =
+24V±1


CN1
[CE
MARK]
[NO N-
CE MARK]
B2
