CELL-DYN
®
3/35 Sample Loader TS Guide 9140234B-June 1997
TROUBLESHOOTING
IP - 6 Sample Loader Dead, No Lights, No Sounds, 3 of 4
1 - 24
1
Search
Book TOC
Go Back

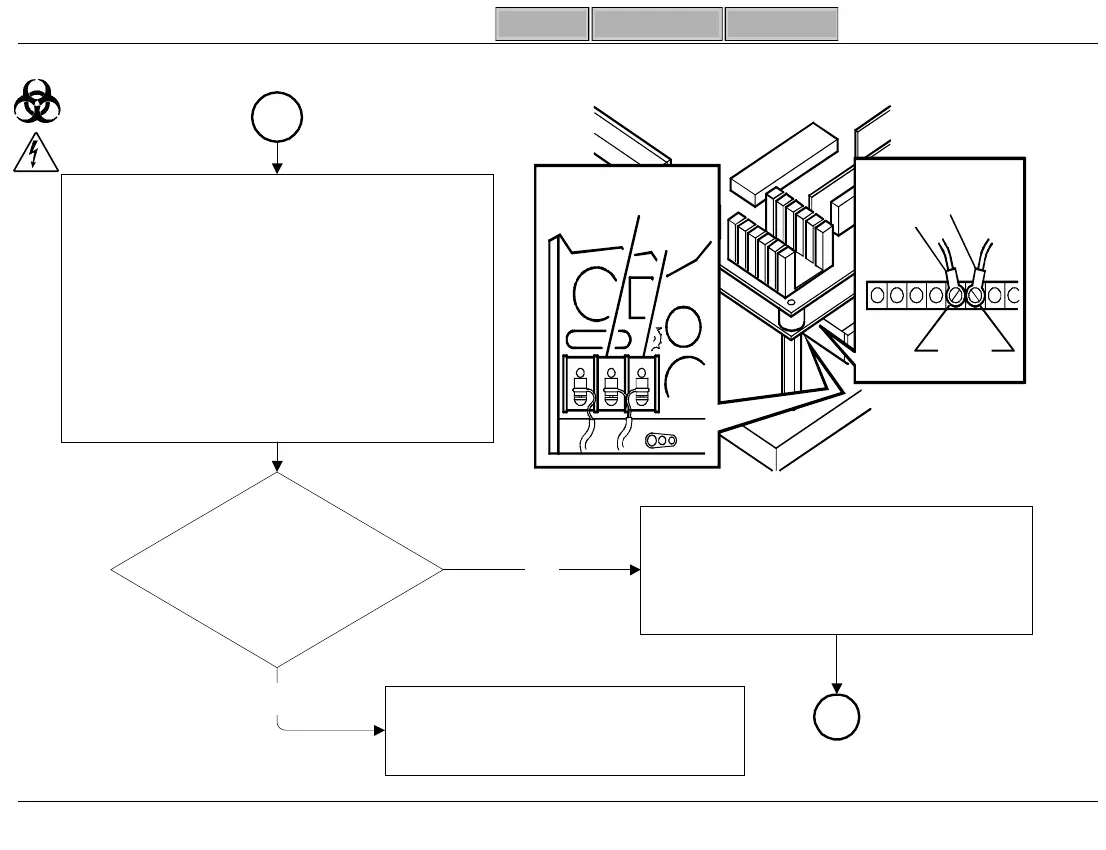

IP - 6 Sample Loader Dead, No Lights, No Sounds, 3 of 4
3
AC
Power on Power
Supply Input Gray and
White Wires
?
Yes
Remove Power Input Panel (2
screws) to Gain Access to Rear of
AC Line Filter (DO NOT disconnect
any Wires)
No
4
- Install Fuse
- Remove Sample Loader Covers
- Measure AC input to Power Supply
[NON-CE Mark]
Measure across
Gray and W hite wires on +24V
Power Supply
[CE MARK]
Remove CPU, Main
Bd, Measure across Gray and
White Wires on TB1
Replace Power Supply (PL-10;
See Interrelationship Matrix -
Pg. 3-4)
SL-118D
White
Gray
TB1
[CE- MARK]
AC
Power
White
Gray
[NON- CE MARK]
