IP - 9 Alarm 4 (c) Mixing Home And Contact Sensors, 1 of 3
1 - 29
1
Search
Book TOC
Go Back

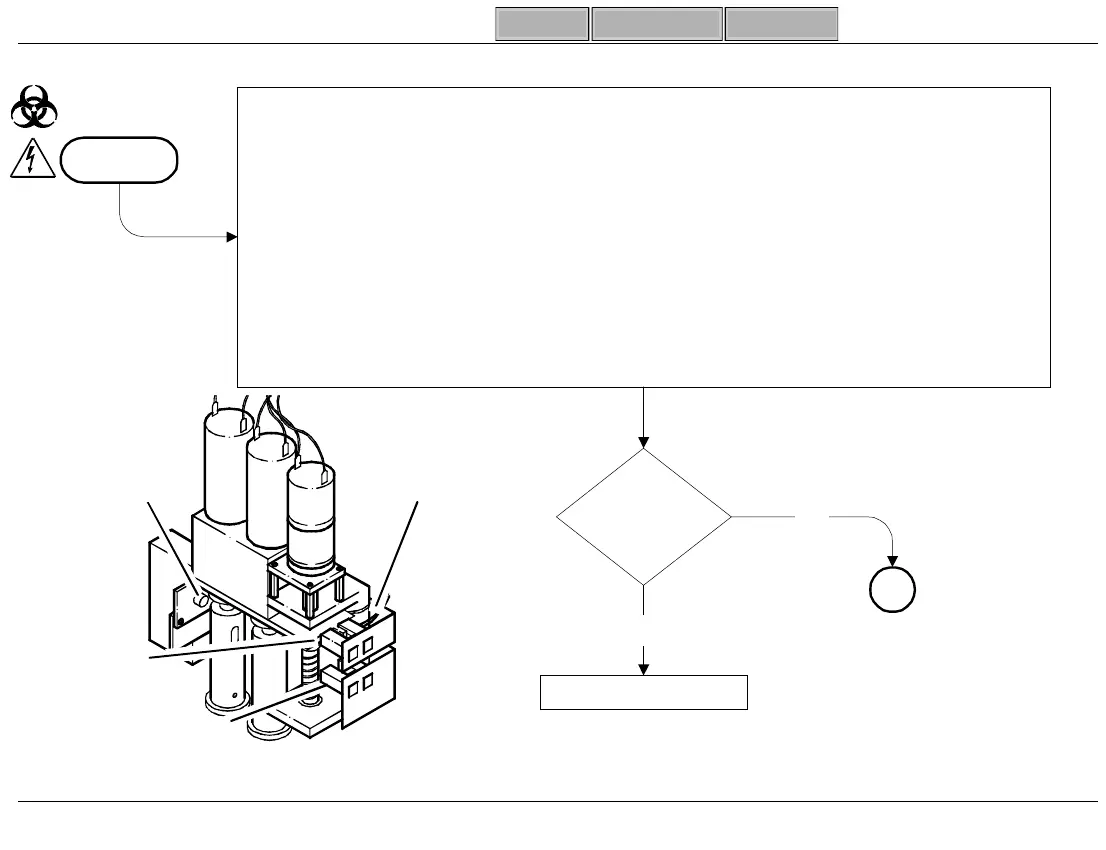

IP - 9 Alarm 4 (c) Mixing Home And Contact Sensors, 1 of 3
START
Problem
Corrected
?
Perform Total Call
Yes
No
1
- Power Sample Loader OFF
- Verify Good Electrical Connection at Both Home and Contact Sensors,
and at CPU Main Bd. CN5
- Check Contact Sensor Wiring
[CE MARK]
Reseat Contact Sensor In-Line Connector (on Tower)
[NON-CE MARK]
Verify wires to Contact Sensor Bd. are not broken
- Clean Both Sensors
- Push Up Paddle with Finger (movement should be smooth, not sticking)
SL-121E
Mixing
Contact
Sensor
Mixing
Home
Sensor
Mixing Limit
Sensor
[CE MARK]
Contact Sensor
In-Line Connector
