IP - 13 Alarm 4 (g and k) Time-out Moving Needles, 1 of 6
1 - 46
1
Search
Book TOC
Go Back

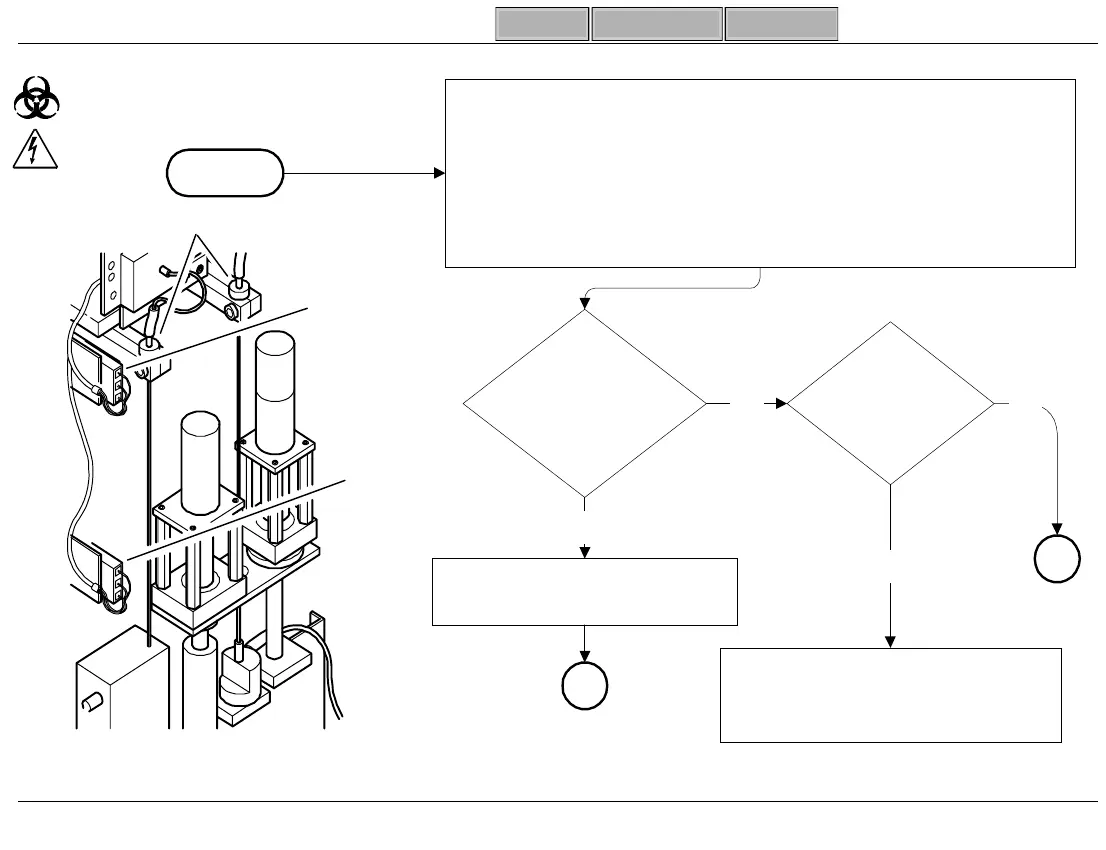

IP - 13 Alarm 4 (g and k) Time-out Moving Needles, 1 of 6
Needles Move
UP/DN
?
No
- Power Sample Loader OFF
- Clean and Lube Needle Rails
- Enter Manual Mode
- Move Needles UP/DN using
↑
N
↓
Keys
- Clean Needle Sensors
- Seat Sensor Connections and CN5 on CPU Main Bd.
- Correct Bent Needles
- Run With No Needle
START
1
Yes
2
SL-120B
Needle Sensors
Needle
Home
Needle
Limit
Collars
- Check Belt Tension
- Tighten Pulley Set Screws
- Correct Mechanical Problems
Needle
(Z1) Motor
Turns
?
Yes
No
