Abbott CELL-DYN 3000 - IP - 22 Alarm 2, Mixing Failure 6 of 6

28 Oct
1997 20:45
CELL-DYN
®
3/35 Sample Loader TS Guide 9140234B-June 1997
TROUBLESHOOTING
IP - 22 Alarm 2, Mixing Failure 6 of 6
1 - 87
1
Search
Book TOC
Go Back

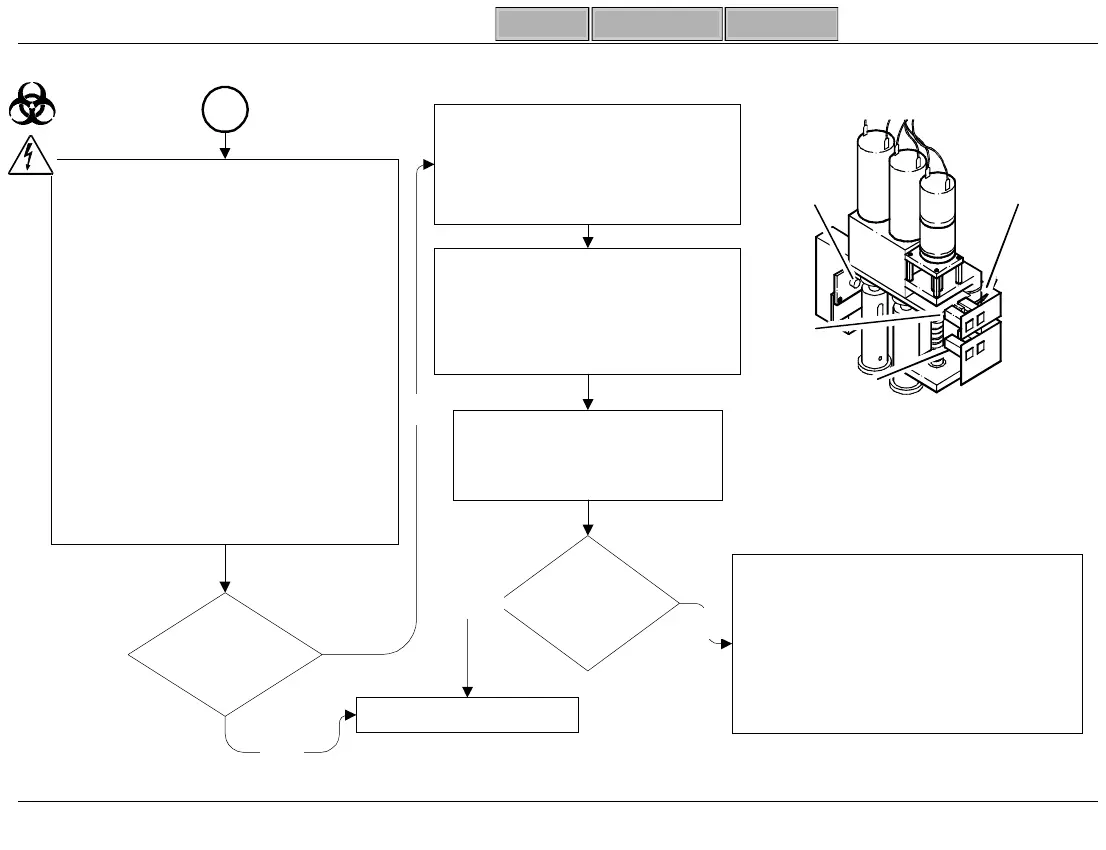

IP - 22 Alarm 2, Mixing Failure 6 of 6
Problem
Corrected
?
Perform VP-6.4 Mixing
Contact Sensor Check/
Adjustment
Perform Total Call
Yes
No
Replace Contact Sensor
(PL-4.8; see Interrelationship
Matrix - Pg. 3-4)
If Problem Persists, Replace
CPU Main Bd. (PL-8.1; see
Interrelationship Matrix, Pg 3-4)
No
Mixing Contact Sensor became
deactivated during mix.
Check the following:
- Ensure bottom of rack tube
positions 1- 10 are not worn.
Replace rack as necessary
(PL-2.2; see Interrelationship
Matrix, Pg. 3-4)
- Inspect Sample tubes: Ensure
tube caps are fully seated and
not defective
- Clean Contact Sensor
C
Push up with finger on
each Mixing Paddle.
Ensure Paddle moves up/
down freely, no sticking.
Problem
Corrected
?
Yes
Ensure wiring on Contact
Sensor Bd is not broken. IF
CE MARK, Check in-line
connector. (See Figure)
SL-121
E
Mixing
Contact
Sensor
Mixing
Home
Sensor
Mixing Limit
Sensor
[CE MARK]
Contact Sensor
In-Line Connector
