CELL-DYN
®
3/35 Sample Loader TS Guide 9140234B-June 1997
TROUBLESHOOTING
IP - 5 No Lights, Some Other Functions Work, 2 of 3
1 - 20
1
Search
Book TOC
Go Back

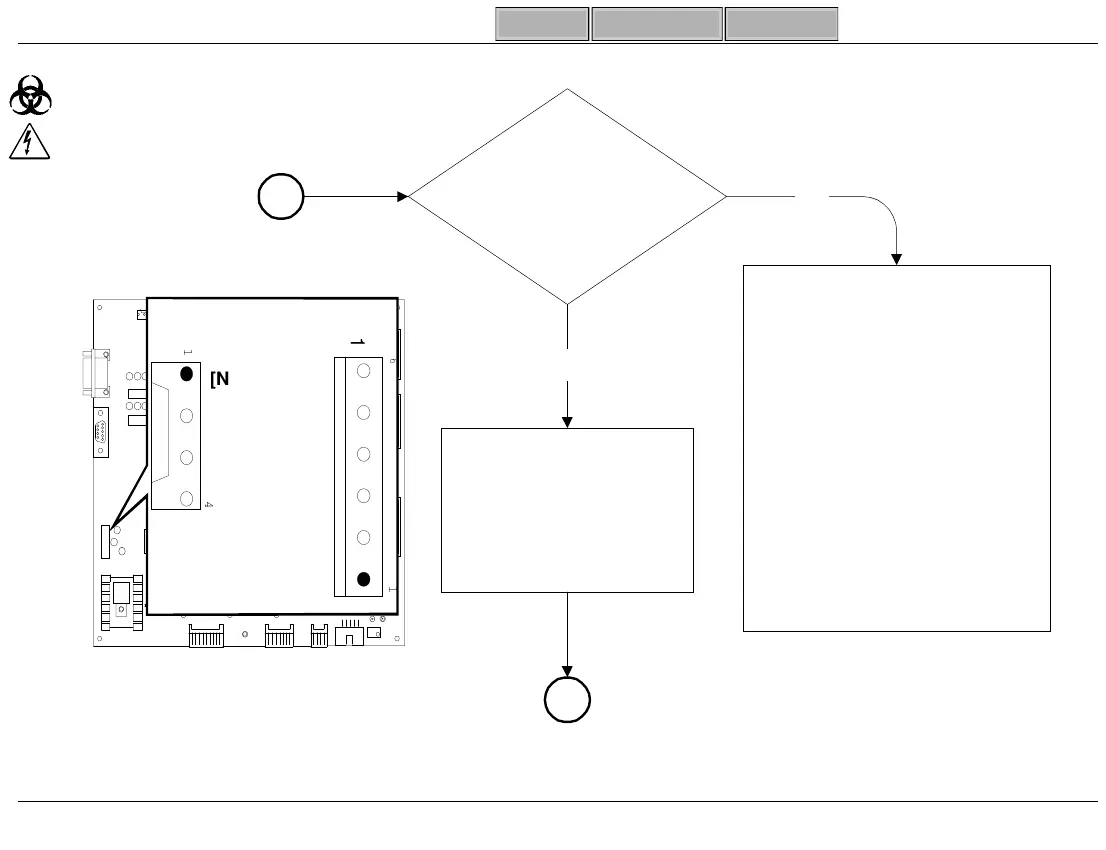

IP - 5 No Lights, Some Other Functions Work, 2 of 3
CPU Main Bd.
CN1 Pin 1(+) to GND =
+5V±0.2
?
1
-
Power Sample
Loader OFF
-
Disconnect Main Bd.
CN2
-
Power ON
Yes
No
2
[CE MARK]
-
Check polarity of
Keyboard Cable (Red
Stripe must face CN2 Pin
1 on Keyboard
-
If Cable OK Replace
Power Supply (
PL-10.7
)
[NON-CE MARK]
-
Replace +5V Power
Supply (
PL-10.9
) (See
Interrelationship Matrix -
Pg. 3-4
)
SL-127B
CN1


[NON-
CE MARK]
Pin 1
(+5V±0.2)
[CE MARK]
Pin 1
(+5V±0.2)


CN1
