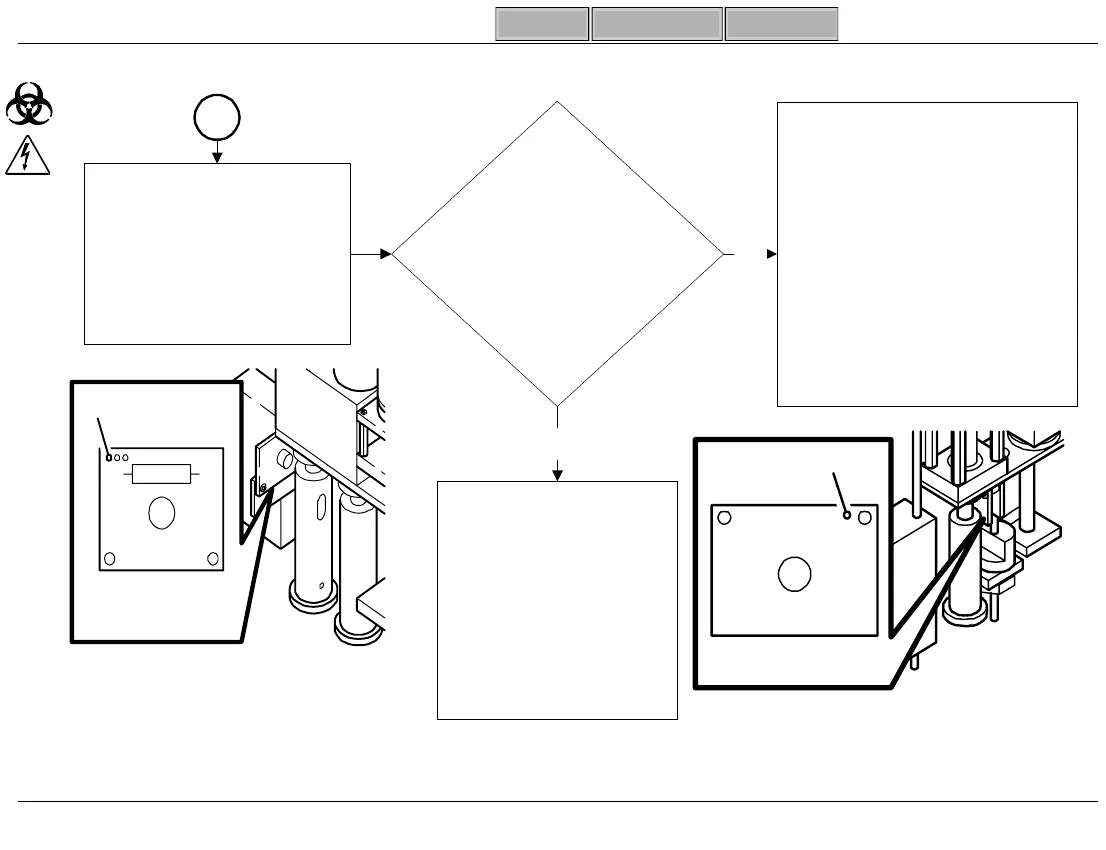

IP - 16 Alarm 4 (l) Time-out Moving Mixing Paddle, 2 of 7
1 - 61
1
Search
Book TOC
Go Back
IP - 16 Alarm 4 (l) Time-out Moving Mixing Paddle, 2 of 7
Contact
Sensor Bd. Pin 0
≥
0.7V Paddle UP
(Cutout Not Toward
Sensor)
≈
0.0V Paddle
DOWN
?
- Check Cabling and
Sensor Wiring
- If OK, Replace CPU
Main Bd. (PL-8.1;
See
Interrelationship
Matrix - Pg. 3-4)
- Reseat CN5 on CPU
Main Bd.
- Adding White Color
Around Top of Paddle
May Increase Voltage
Output.
- If Not, Replace Contact
Sensor (PL-4.8; See
Interrelationship Matrix -
Pg. 3-4)
Perform
- Mixer Head Position
Check (VP-6.1)
- Check Contact Sensor
Output (See Figure)
1
Yes
No
E&G Left Side
Pin 0
SL-210
B
Pin 0
F - Right Side
SL-218B
