TROUBLESHOOTING
IP - 13 Alarm 4 (g and k) Time-out Moving Needles, 2 of 6
1 - 47
1
Search
Book TOC
Go Back

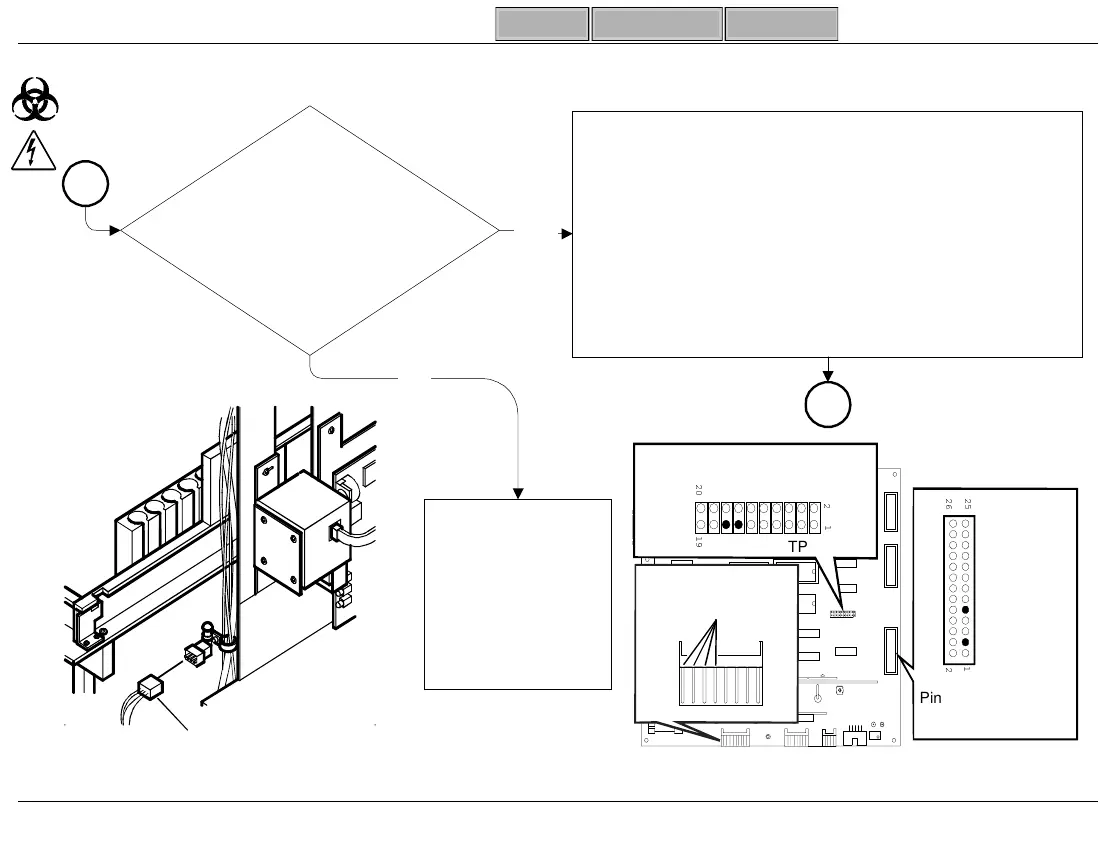

IP - 13 Alarm 4 (g and k) Time-out Moving Needles, 2 of 6
Needle Home
and Limit Sensors
at CPU Main Bd. = +5.0V
Blocked, 0.0V Unblocked
(See Figure)
?
1
No
Yes
- Ensure Needle (Z1) Motor Wires at CPU
Main Bd. CN8 Pins 5, 6, 7, & 8 are
Connected Properly (Push Wires Into CN8
with Flat Blade Screwdriver)
- Disconnect Needle Drive Motor In-Line
Connection
- Measure Voltage at Main Bd. Side of
Connection
Replace Needle
(Z1) Home or
Limit Sensor
(PL-5.2; See
Interrelationship
Matrix - Pg. 3-4)
3
SL-131
Needle (Z1) In-Line
Connector
SL-132B
CN8
8..........................1
Pins 8, 7, 6, & 5
Needle Motor
Pin 15 Needle Limit
Pin 13 Needle Home


 
TP
Pin 9 Needle Limit
Pin 3 Needle Home
[CE MARK]
[NON-
CE MARK]
CN5
 


