CELL-DYN
®
3/35 Sample Loader TS Guide 9140234B-June 1997
TROUBLESHOOTING
IP - 12 Alarm 4 (f) Time-out Moving Pusher Y-Axis, 5 of 5
1 - 45
1
Search
Book TOC
Go Back

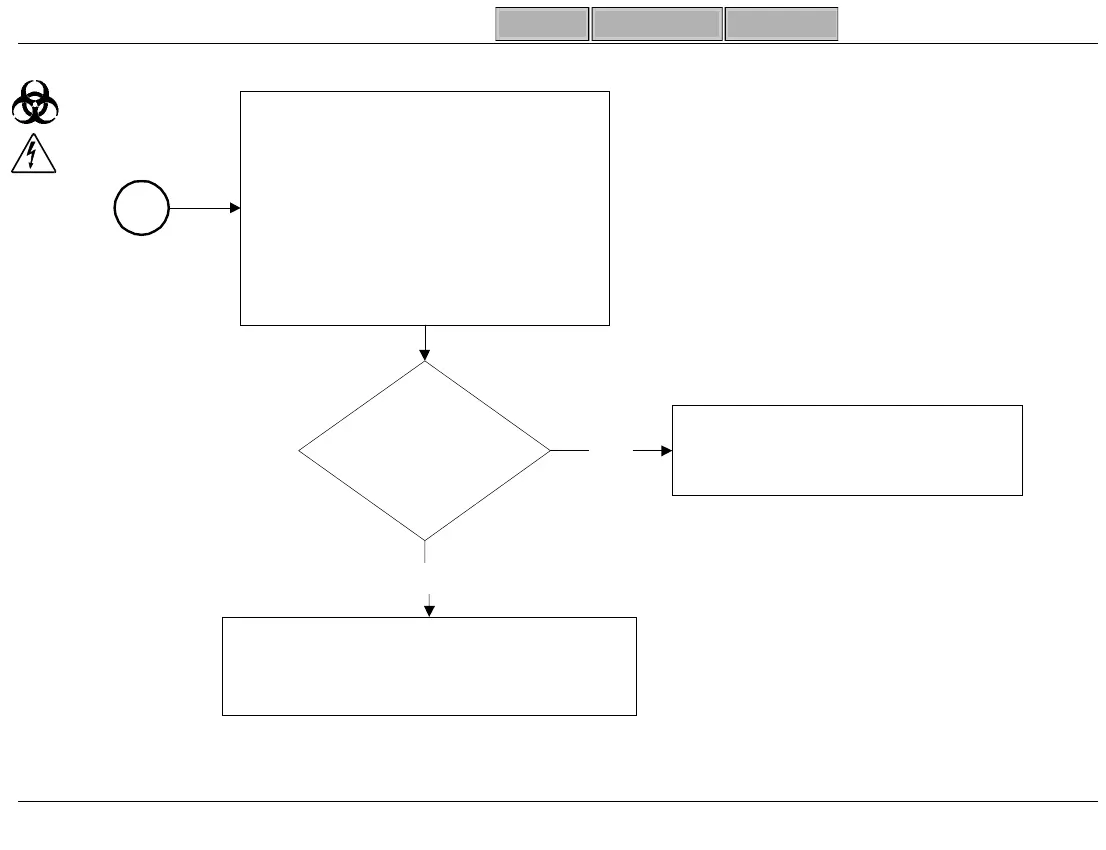

IP - 12 Alarm 4 (f) Time-out Moving Pusher Y-Axis, 5 of 5
Y-Pusher
Motor Check
OK
?
Replace Y-Pusher Motor and CPU
Main Bd. (PL-3.9 & PL-8.1; See
Interrelationship Matrix - Pg. 3-4)
Replace CPU Main Bd. (PL-8.1;
See Interrelationship Matrix -
Pg. 3-4)
Measure Ohms at Y-Pusher
Motor Side of In-Line Connection
1 to 2 =
≈
40 Ohms
3 to 4 =
≈
40 Ohms
1 to 3 = OPEN
1 to 4 = OPEN
2 to 3 = OPEN
2 to 4 = OPEN
4
Yes
No
