IP - 11 Alarm 4 (e and j) Time-out Moving X-Axis, 1 of 8
1 - 33
1
Search
Book TOC
Go Back

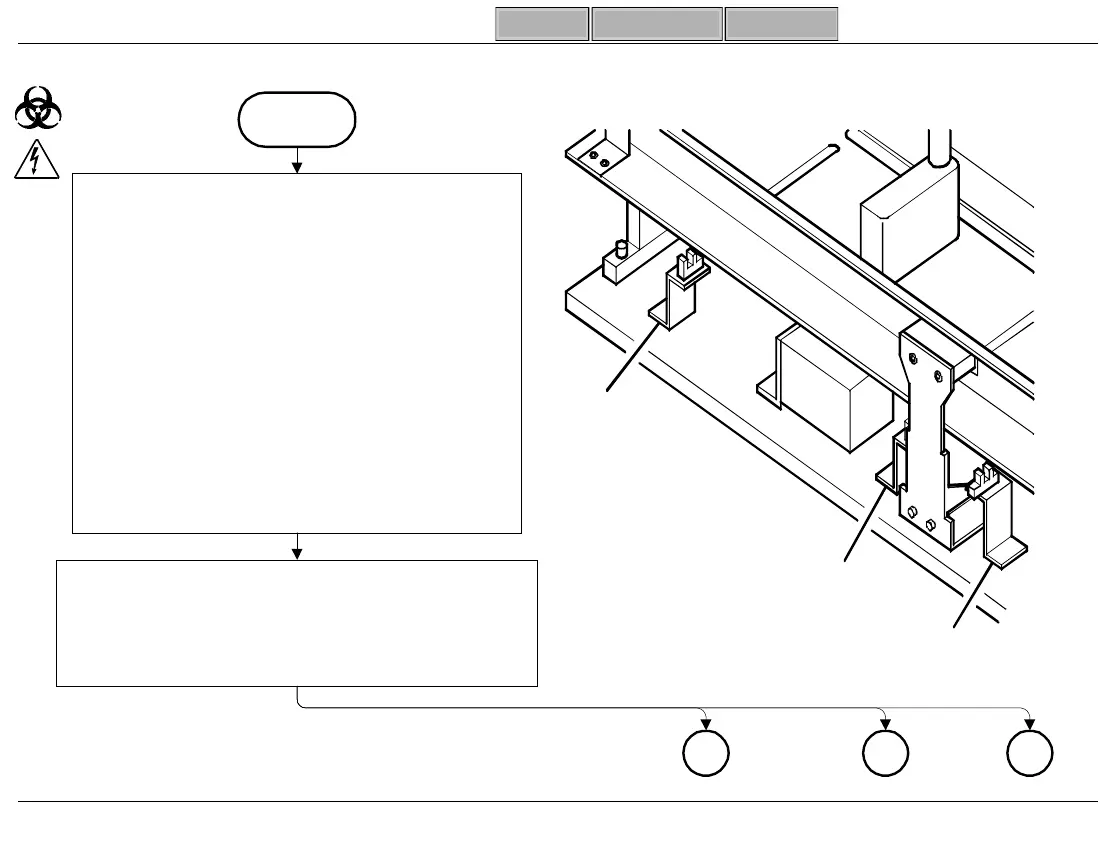

IP - 11 Alarm 4 (e and j) Time-out Moving X-Axis, 1 of 8
- Power Sample Loader OFF
- Remove Cover
- Enter Manual Mode
- Set
BAR (1/0) Switch
to
1
- Remove All Racks
- Clean & Lube X-Axis Rails
- Manually Move X-Axis to Center of
Platen
- Move X-Axis Mechanism with
←
X
→
Note: If X-Axis does not move,
ensure Needles are at maximum up
with
↑
N Key
START
Select Proper Situation
- Moves Left or Right Only (Go To A)
- No Movement (Go To B)
- Movement Both Directions (Go To C)
X-Limit
X-Axis Sensors
X-Slowdown
X-Home
SL-123
BA C
