CELL-DYN
®
3/35 Sample Loader TS Guide 9140234B-June 1997
TROUBLESHOOTING
IP - 19 Covers Open or Alarm 4 (t) Safety Cover Removed, 1 of 1
1 - 74
1
Search
Book TOC
Go Back

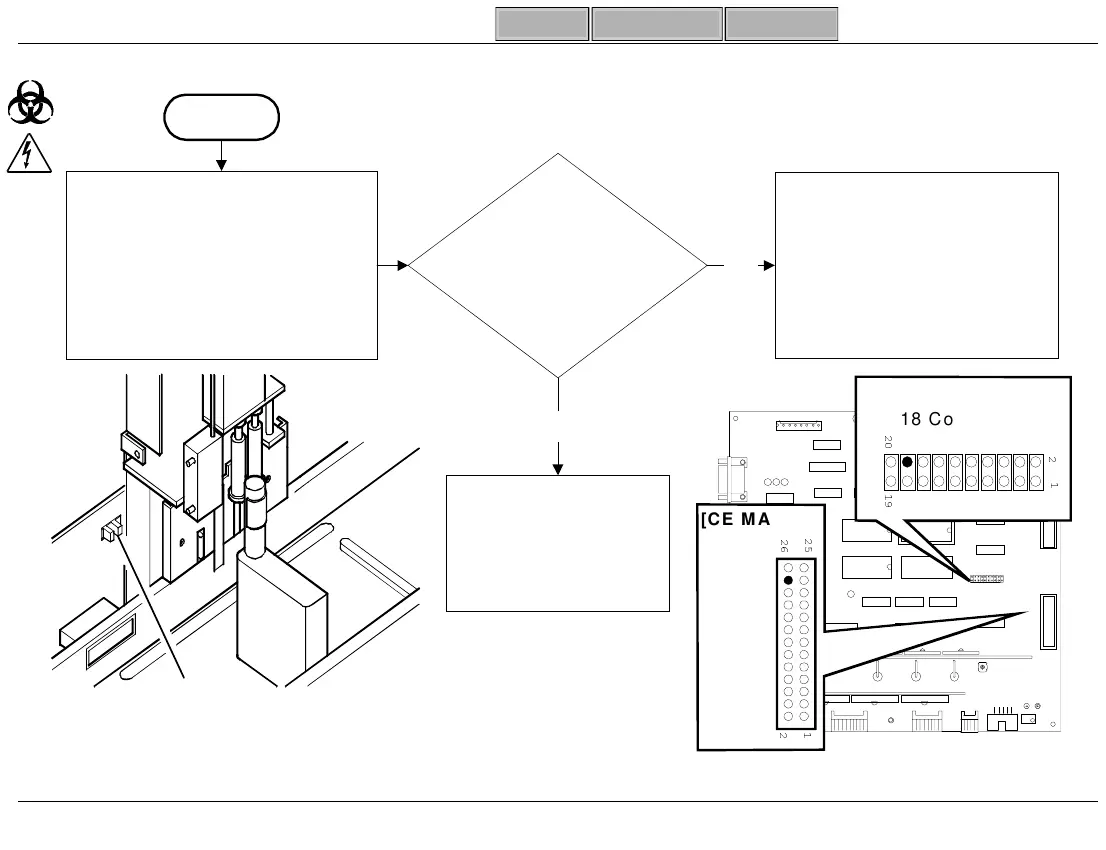

IP - 19 Covers Open or Alarm 4 (t) Safety Cover Removed, 1 of 1
- Seat Plastic Cover on
Knurl Screw on Tower
- Ensure Cover Flag Blocks
Sensor
- Check Cover Sensor
Operation
Replace CPU Main
Bd. (PL-8.1; See
Interrelationship
Matrix - Pg. 3-4)
- Check W iring of Cover
Sensor and CPU Main
Bd. CN5 Pin 24
- If OK Replace Cover
Sensor (PL-2.1)
CPU Main Bd.
+5.0V Blocked
0.0V Unblocked
(See Figure)
?
No
START
Yes
Cover Sensor
SL-151
SL-150
Pin 24
Cover
CN5




[CE MARK]


 
TP
Pin 18 Cover
[NON- CE MARK]
