CELL-DYN

3/35 Sample Loader TS Guide 9140234B-June 1997

TROUBLESHOOTING

IP - 7 Alarm 4 (a) Needle Home & Limit Sensors, 1 of 2

1 - 26

Book TOC

Go Back

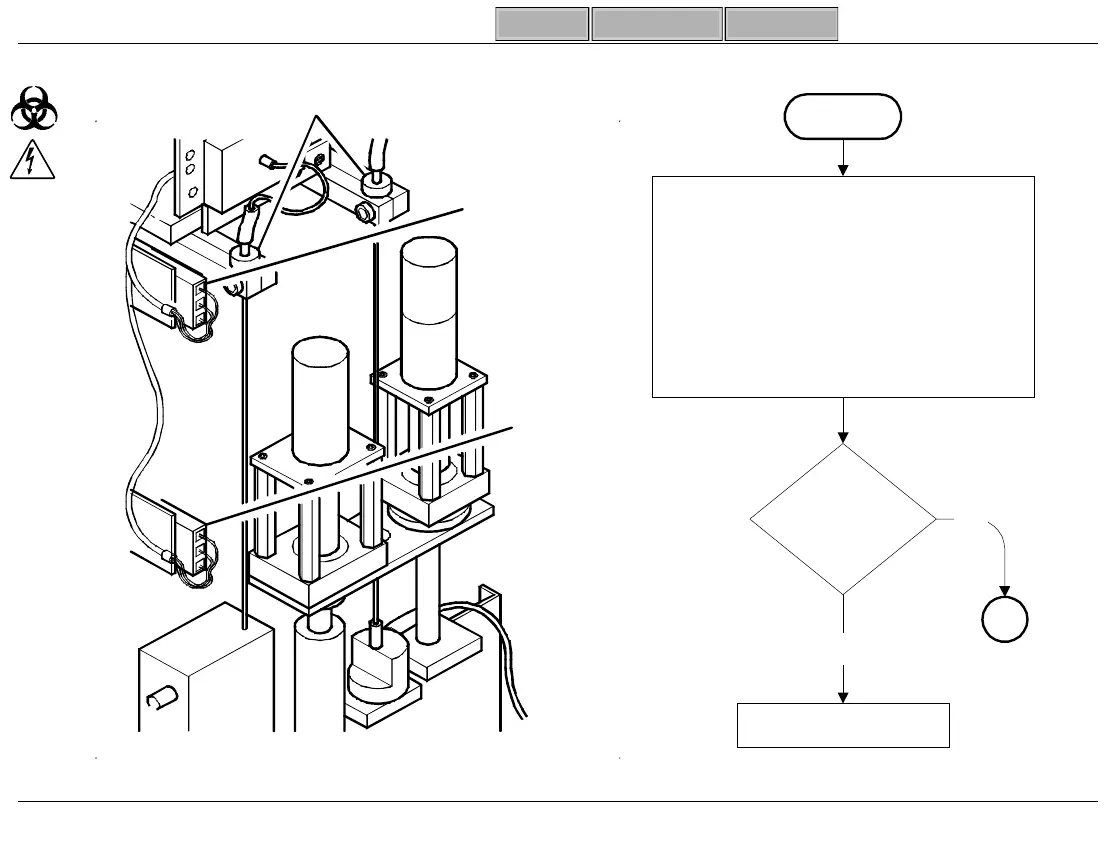

IP - 7 Alarm 4 (a) Needle Home & Limit Sensors, 1 of 2

START

- Power Sample Loader OFF

- Verify Good Electrical

Connection at Both Needle Home

and Limit Sensors, and at CPU

Main Bd. CN5 Connector

- Clean Both Sensors

Needle Sensors

SL-120B

Needle

Home

Needle

Limit

Collars

Problem

Corrected

Perform Total Call

Yes
