CELL-DYN
®
3/35 Sample Loader TS Guide 9140234B-June 1997
TROUBLESHOOTING
IP - 16 Alarm 4 (l) Time-out Moving Mixing Paddle, 6 of 7
1 - 65
1
Search
Book TOC
Go Back

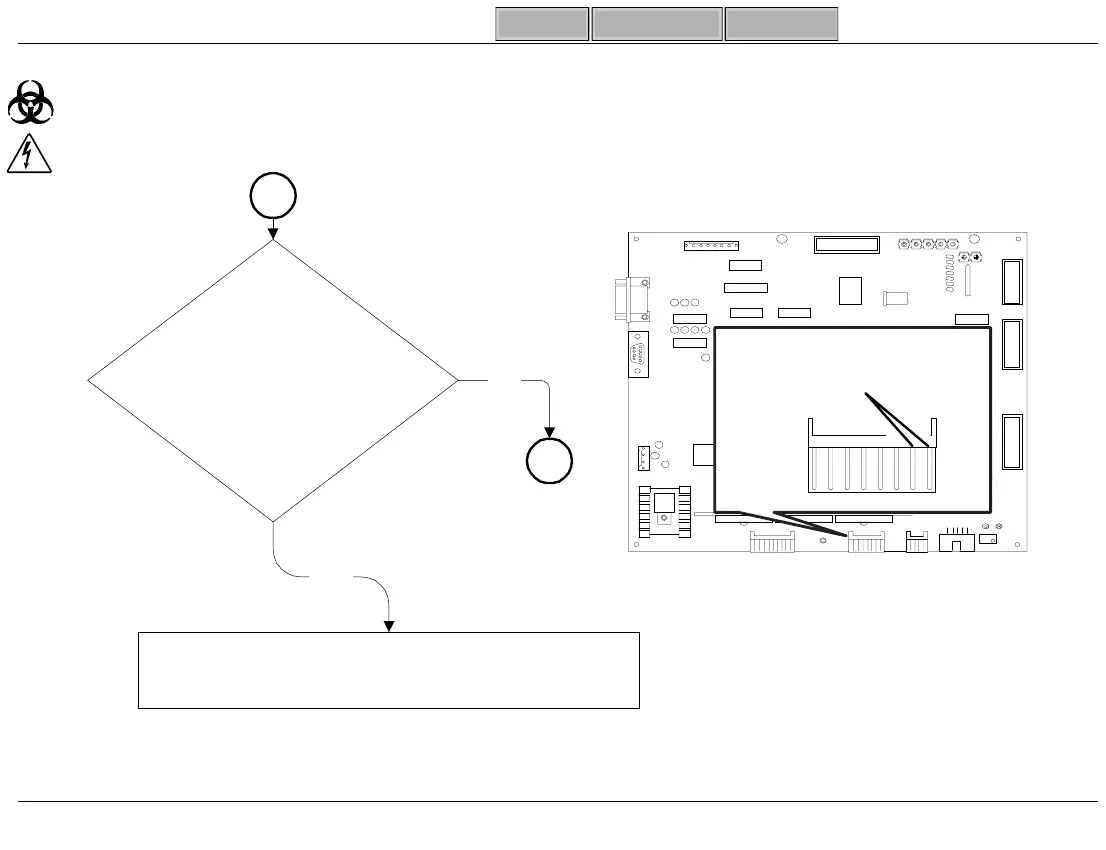

IP - 16 Alarm 4 (l) Time-out Moving Mixing Paddle, 6 of 7
Voltage
Across CPU Main
Bd. CN8 Pins 1 to 2 =
+12V & -12V When
Mixing (Z2) Motor
Should be
Turning
?
Yes
No
Replace Mixing (Z2) Motor (UP/DN) (PL-4.2;
See Interrelationship Matrix - Pg. 3-4)
4
SL-137C
CN8
8..........................1
Pins 2 & 1
(Z2) Mixing Motor
6
