TROUBLESHOOTING

IP - 22 Alarm 2, Mixing Failure 1 of 6

1 - 82

Book TOC

Go Back

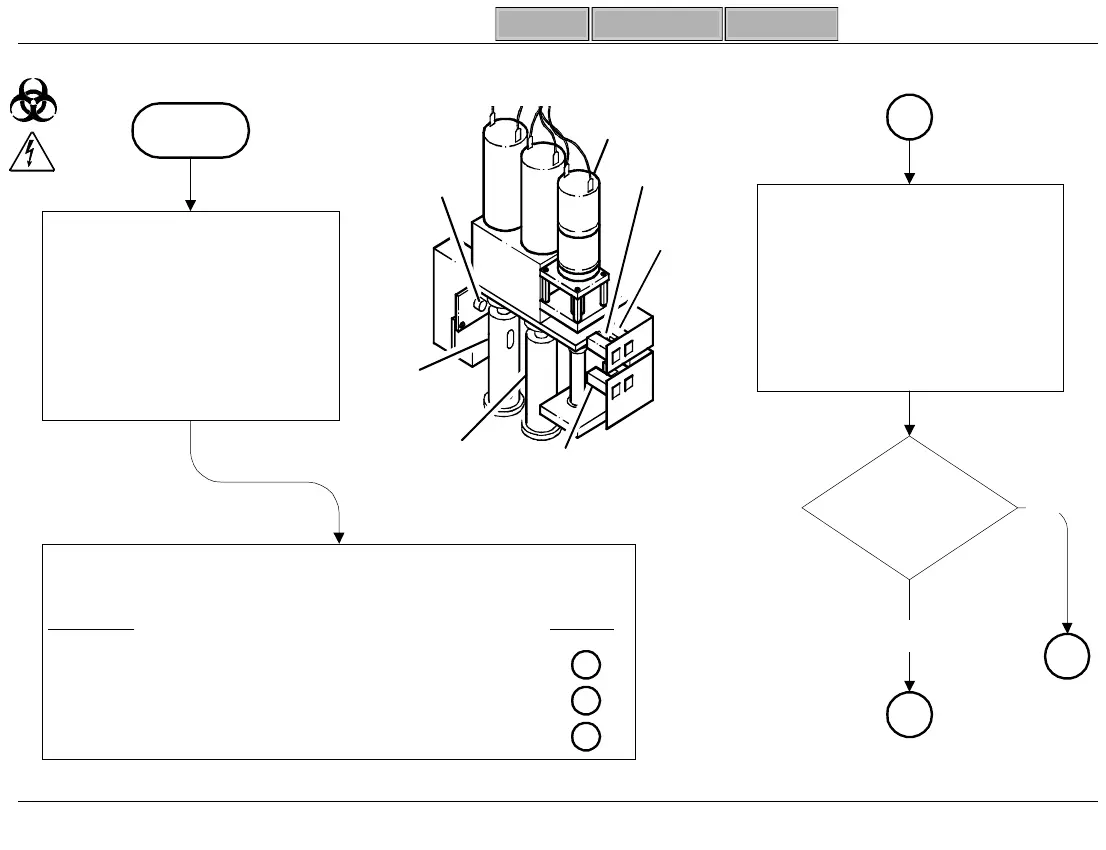

IP - 22 Alarm 2, Mixing Failure 1 of 6

Mixer

Moves

Verify Alarm 2 failure as

follows:

From the Analyzer Main

Menu, press:

DIAGNOSTICS

MORE (4 Times)

AUTOSAMP VER

Yes

START

SL-122E

Mixing (Z2)

Motor

Flag

Mixing

Home

Sensor

Mixing

Paddle

Mixing

Paddle

(E - Only)

Mixing

Limit

Sensor

Mixing

Contact

Sensor

Select Appropriate Troubleshooting Path:

ERROR

PATH

2ARN/00000/Mixer Not At Start

2ARN/00002/Mix Sensor Active Before Start

2ARN/00003/Possible Incomplete Mix

- Enter Manual Mode

- Move Mixing Assembly Up

and Down using

↑

↓

Keys

- Clean and Lubricate

Mixing Assembly Lead

Screw
