CELL-DYN
®
3/35 Sample Loader TS Guide 9140234B-June 1997
TROUBLESHOOTING
IP - 12 Alarm 4 (f) Time-out Moving Pusher Y-Axis, 2 of 5
1 - 42
1
Search
Book TOC
Go Back

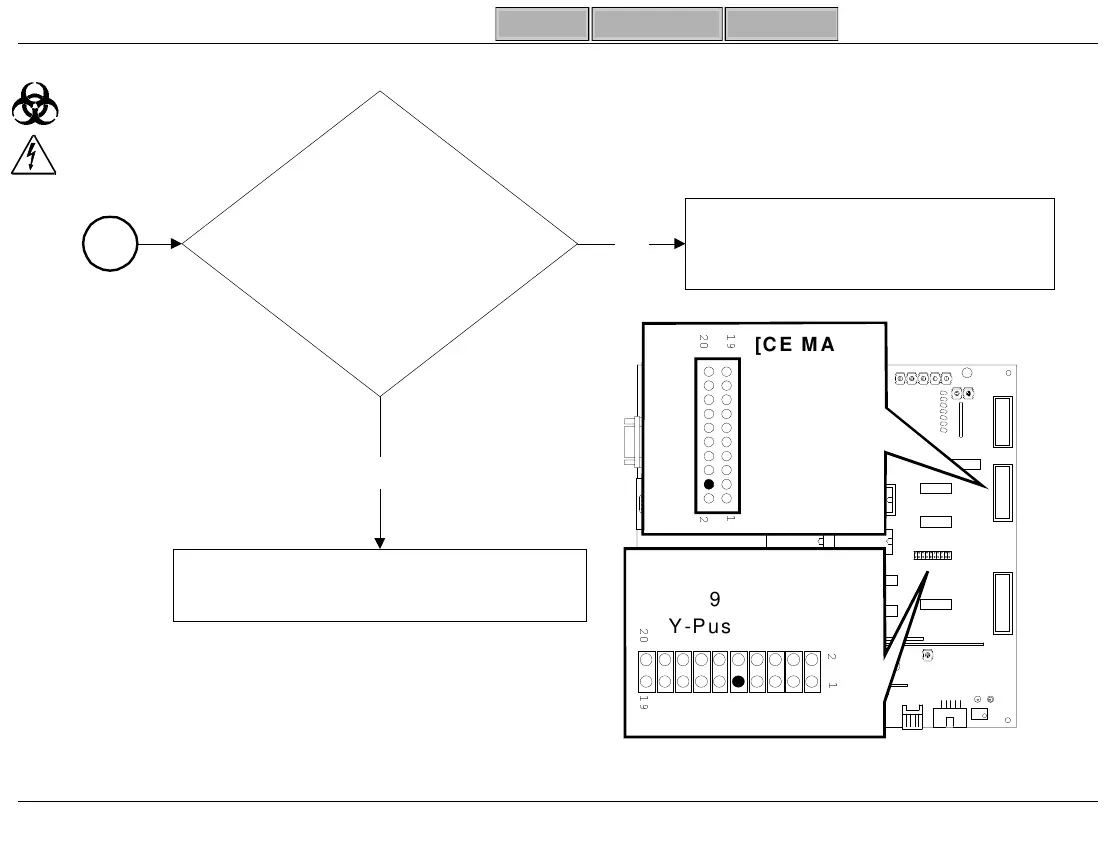

IP - 12 Alarm 4 (f) Time-out Moving Pusher Y-Axis, 2 of 5
No
Y-Pusher
Home Sensor at
CPU Main Bd. = 0.0V
Unblocked +5.0V Blocked
(See Figure)
?
1
Replace CPU Main Bd. (
PL-8.1
; See
Interrelationship Matrix -
Pg. 3-4
)
Replace Y-Pusher Home Sensor
(
PL-3.2
; see Interrelationship
Matrix -
Pg. 3-4
)
Yes
SL-134D
Pin 4
Y-Pusher
Home
CN4




[CE MARK]


 
TP
Pin 9
Y-Pusher Home
[NON- CE MARK]
