CELL-DYN
®
3/35 Sample Loader TS Guide 9140234B-June 1997
TROUBLESHOOTING
IP - 18 Alarm 4 (s) Sample Tube Not Sensed Properly, 1 of 4
1 - 70
1
Search
Book TOC
Go Back

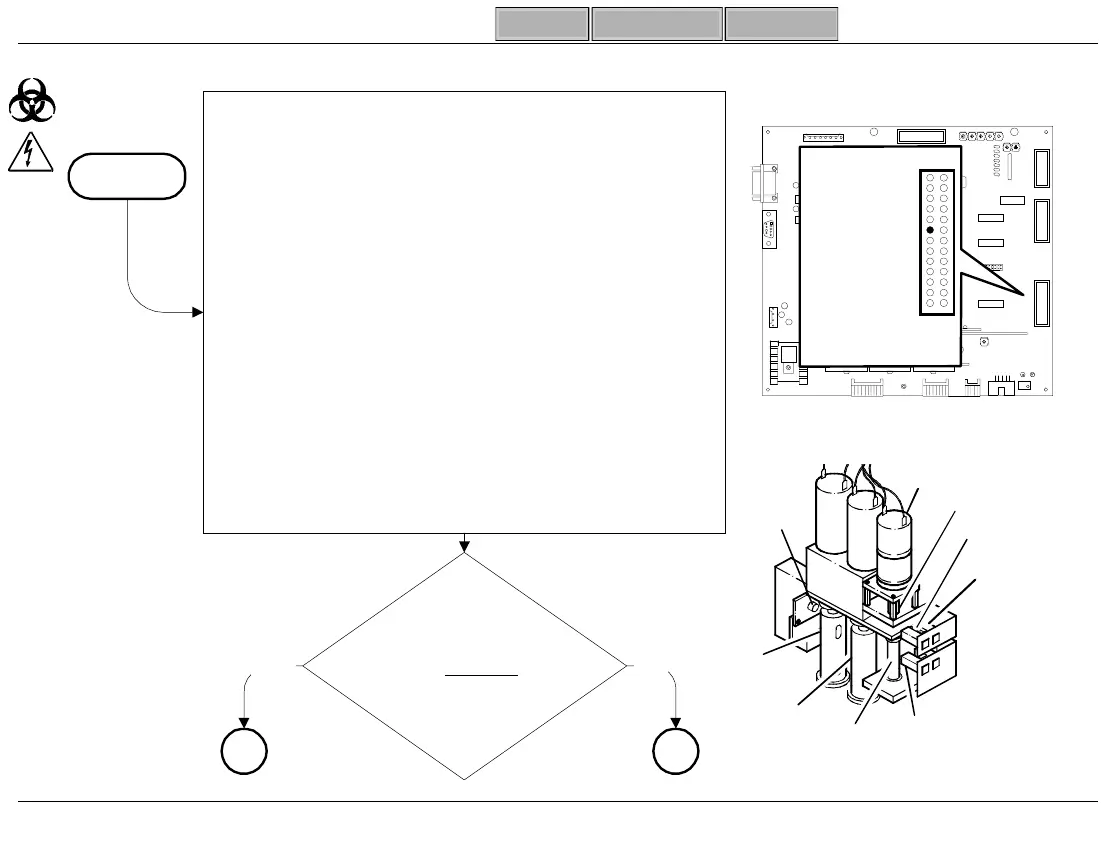

IP - 18 Alarm 4 (s) Sample Tube Not Sensed Properly, 1 of 4
SL-122E
Mixing (Z2)
Motor
Flag
Mixing
Home
Sensor
Mixing
Paddle
Mixing
Paddle
(E - Only)
Mixing
Limit
Sensor
Mixing
Contact
Sensor
Z2
Lead
Screw
Coupler
Screw
1
- Clean Contact Sensor
- Check Minimum Tube Height
[CE MARK]
E = 3.09 in. (78.5mm)
[NON-CE MARK]
E = 3.17 in. (80.5mm)
F = 3.09 in. (78.5mm)
G = 3.15 in. (80.1mm)
- Clean and Lube Mixing Paddle Drive Screw
- Tighten Mixing (Z2) Motor Shaft Coupling Set
Screw
- Check Mixing Contact Sensor Wiring
Connections at Sensor Bd. and CPU Main Bd.
CN5 Pin 16
- Enter Manual Mode
Keyboard
REPEAT LED
Flashes
ONLY
when
Contact Sensor
Blocked
?
2
NoYes
START
SL-147B
CN5
26
25
2
1
Pin 16
Contact Sensor
