CELL-DYN
®
3/35 Sample Loader TS Guide 9140234B-June 1997
TROUBLESHOOTING
IP - 12 Alarm 4 (f) Time-out Moving Pusher Y-Axis, 3 of 5
1 - 43
1
Search
BookTOC
GoBack

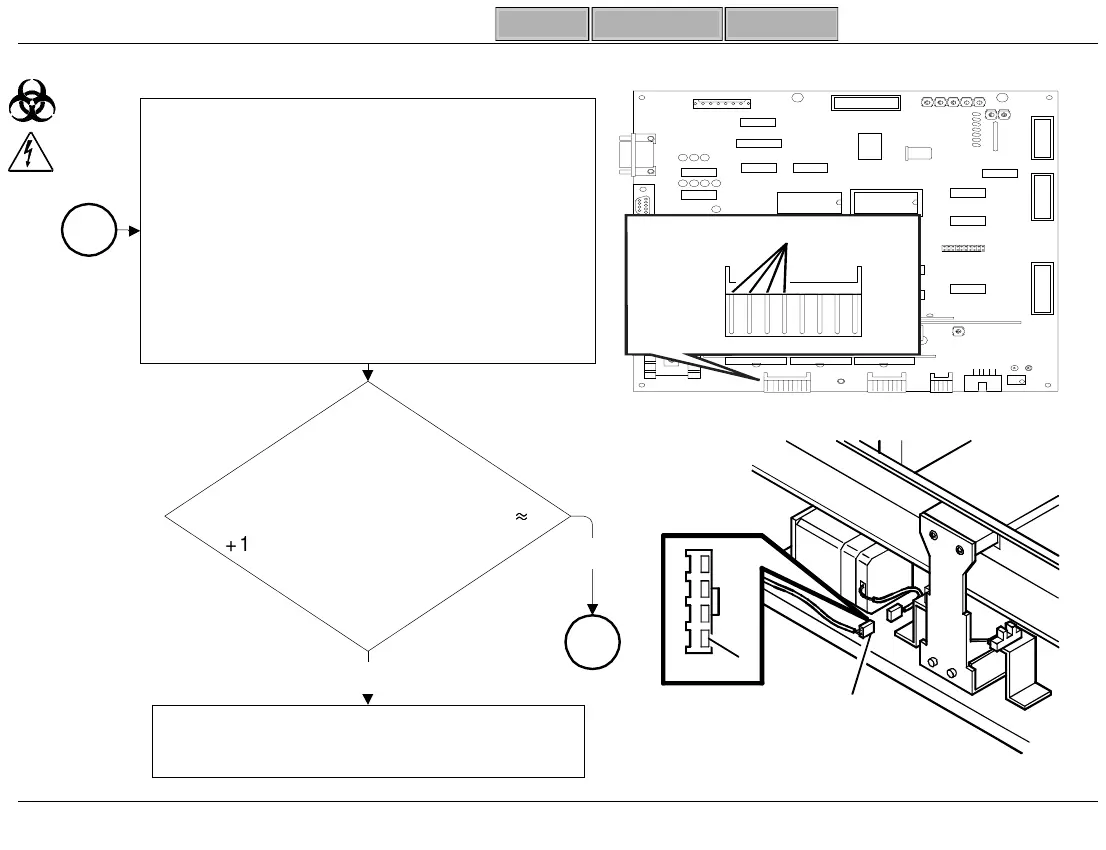

IP - 12 Alarm 4 (f) Time-out Moving Pusher Y-Axis, 3 of 5
2
Replace Y-Pusher Motor (PL-3.9; See
Interrelationship Matrix - Pg. 3-6)
Yes
SL-208B
1
Y-Pusher Motor
In-Line Connector
CPU Main
Bd. Side of In-Line
Connector (Pins 1, 2, 3, 4) =


+12V When Motor Should
Be Turning
?
3
-Ensure Y-Pusher Motor Wires are
Making Contact in CPU Main Bd. CN7
Pins 5, 6, 7 & 8 (Push Motor Wires into
CN7 with Flat Blade Screwdriver)
-Disconnect Y-Pusher Motor In-Line
Connector (See Art Next Page)
-Move Needles to Home
-Measure Voltage at CPU Main Bd. Side
of Connector
CPU Main Board
SL-135
CN7
8..........................1
CN7 Pins 8, 7, 6, & 5
No
