Commonly Used Procedures 6
Agilent Nano Indenter G200 User’s Guide 6-41

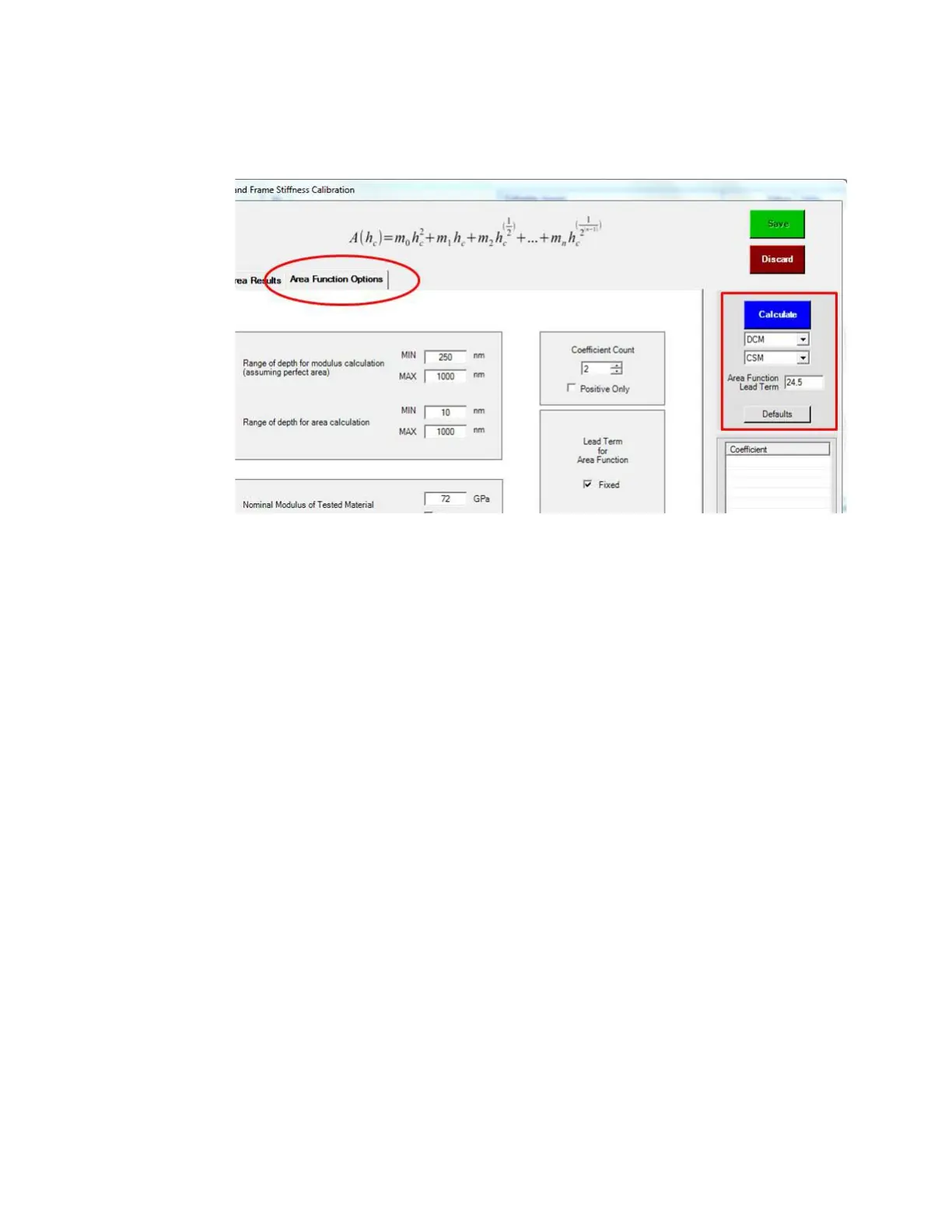

Figure 6-58Confirm head, method and lead term settings in Area
Function Options tab
Once the calibration is complete, view the calibration outputs by
selecting the Tip Area Results tab. Whether
Option 1 or Option 2 was
chosen, the percent difference between the experimental area, A(E), and
the calculated area from fit, A
fit
, should be centered about zero and be
less than 5
% for h
c
> 100 nm as shown in Figure 6-59 on page 6-42.
