Agilent Technologies Nano Indenter G200 User Manual

Quick Start Guide 2
Agilent Nano Indenter G200 User’s Guide 2-17

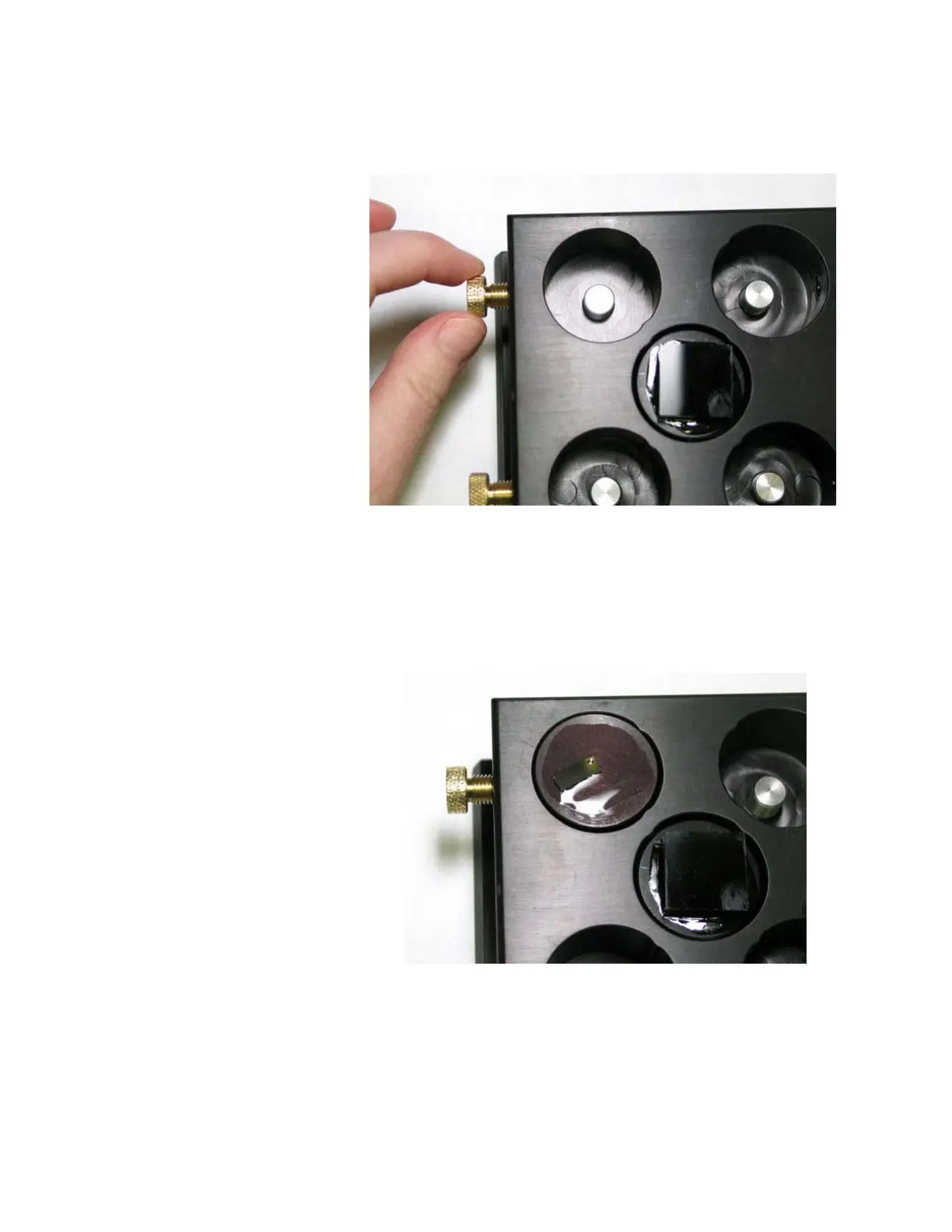

Figure 2-19Adjust brass thumbscrew to load sample
3 Install the disk into the hole such that the sample is level or slightly
above the surface of the sample tray, as shown in
Figure 2-20.
Figure 2-20Sample flush with sample tray surface
4 Turn the thumbscrew just enough to secure the disk in the hole but
not so tight that the disk cannot travel vertically in the sample tray.
