NanoSuite Explorer D
Agilent Nano Indenter G200 User’s Guide D-47
5 Select Save Method As… from the Method menu.
6 In the Save Method File As dialog box, type in XP CSM Standard
H, E, TC, mod defaults for the file name.
7 In the Save Method File As dialog box, click the Create New Folder
icon, as circled in
Figure D-57.

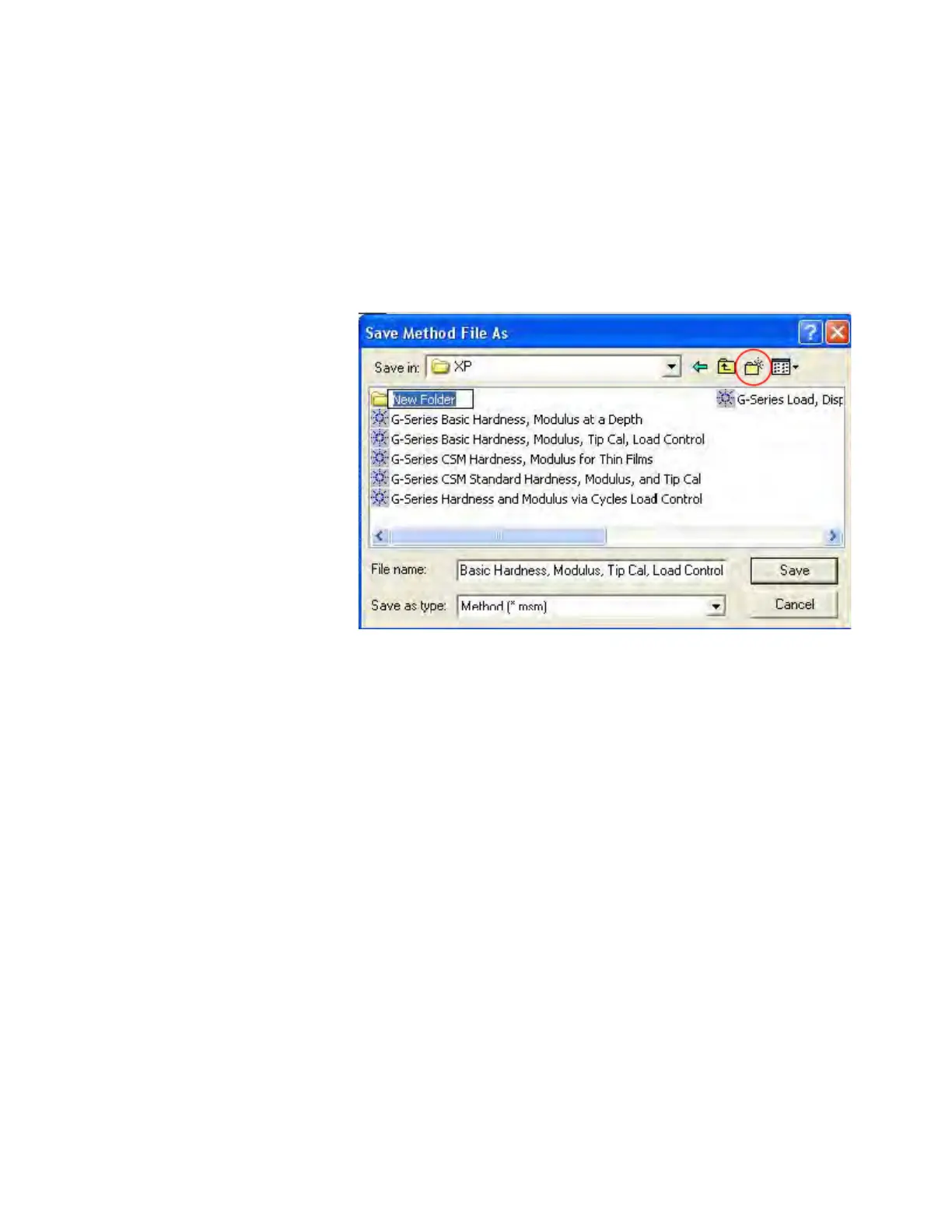

Figure D-57Create New Folder icon circled in red with New Folder
selected
8 Save the new folder as Modified Methods and press Enter.
9 Double-click on the Modified Methods folder to open it.
10 In the Save Method File As dialog box, click Save.
11 Click the Test tab to reveal the Test page.
12 Select Individual Mode from the Mode menu.
13 Click the Define tab to reveal the Define page.
14 Click the Configuration tab.
15 Click the Inputs folder.
16 In the Settings pane, click on the row for the Poisson’s Ratio input.
17 In the General tab for Inputs, select 0.25 from the Default Value
drop-down menu.
18 Click the Description tab.
19 Edit the existing description to read as shown in Figure D-58 on
page D-48.
