Chapter 4 INTERFACE SETTINGS
85

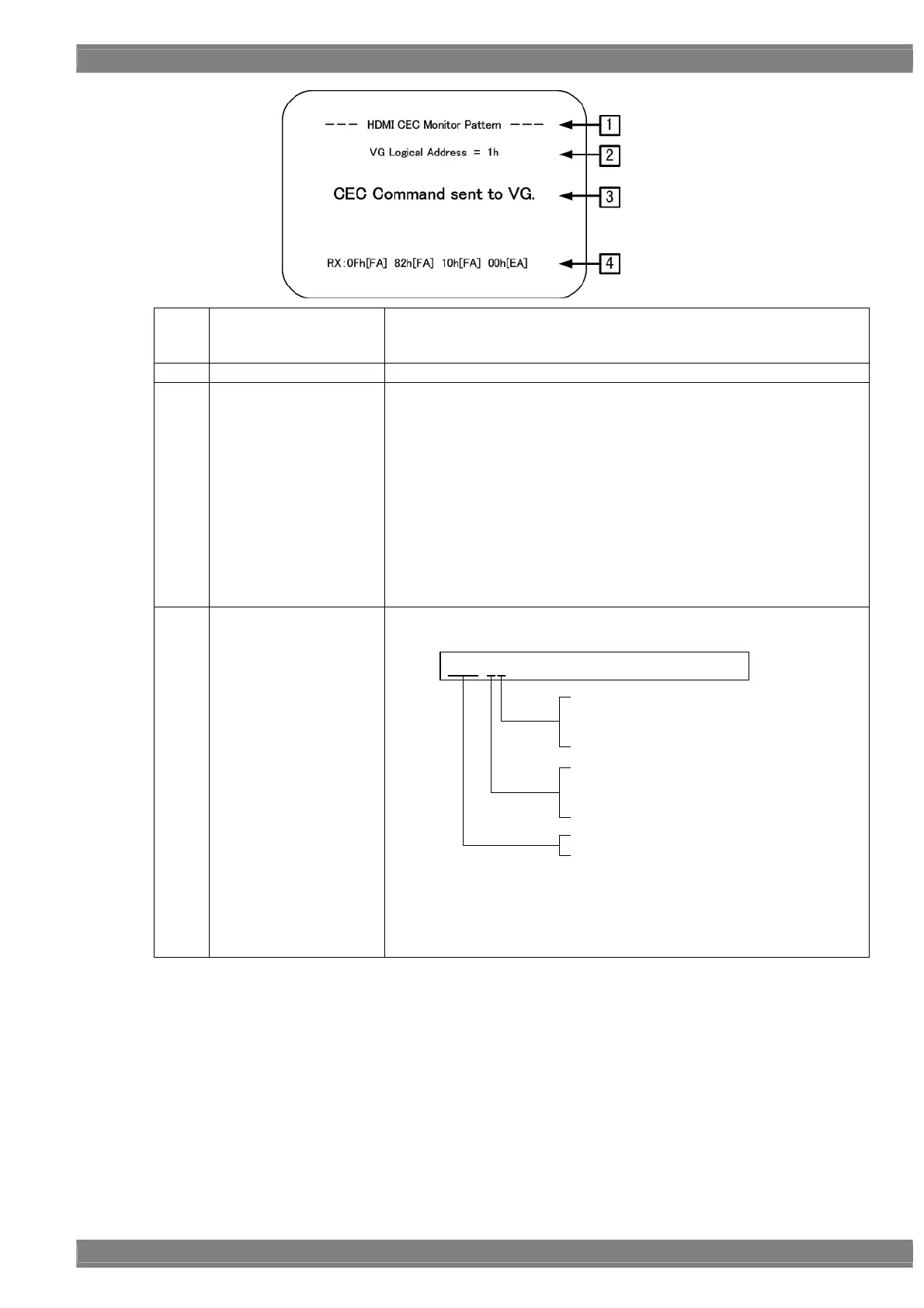

(1) CEC mode “HDMI CEC Monitor Pattern”: Monitor mode
“HDMI CEC Transmission Pattern”: Command transmission mode
“HDMI CEC Response Pattern”: Command response mode
(2) Logical Address VG logical address which has been set
(3)
Display of CEC command
transmission/reception
status
“CEC Command send to Device Xh”
: The command has been transmitted to the unit (Destination Logical
Address Xh) which has been set.
“CEC Command sent to VG”
: The generator has received a command. (Command destined to the
VG logical address which has been set.)
“CEC Command sent to Other Devices”
: A command has been transferred to a unit other than the generator. (A
command to a VG logical address other than the one which has been
set)
“Waiting Command …”
: Command wait status (which is established when a command is not
transmitted or received for 5 or more seconds)
(4) Command display
When the corresponding command has been transmitted or received, it is
displayed.
XXh[FA] XXh[FA] XXh[FA] XXh[EA]
Acknowledge
A: Provided
N: Not provided
End of Message
E: Yes
F: No
Data portion
TX is a command which is transmitted by the generator; RX is a command
which is received by the generator.
* Commands sent to the destination address of Fh are judged to be
broadcast messages and indicated using the polarity which is the reverse
of regular ACK polarity.
: CEC mode
: Logical address
: CEC command
: Command display
