Chapter 4 INTERFACE SETTINGS
95

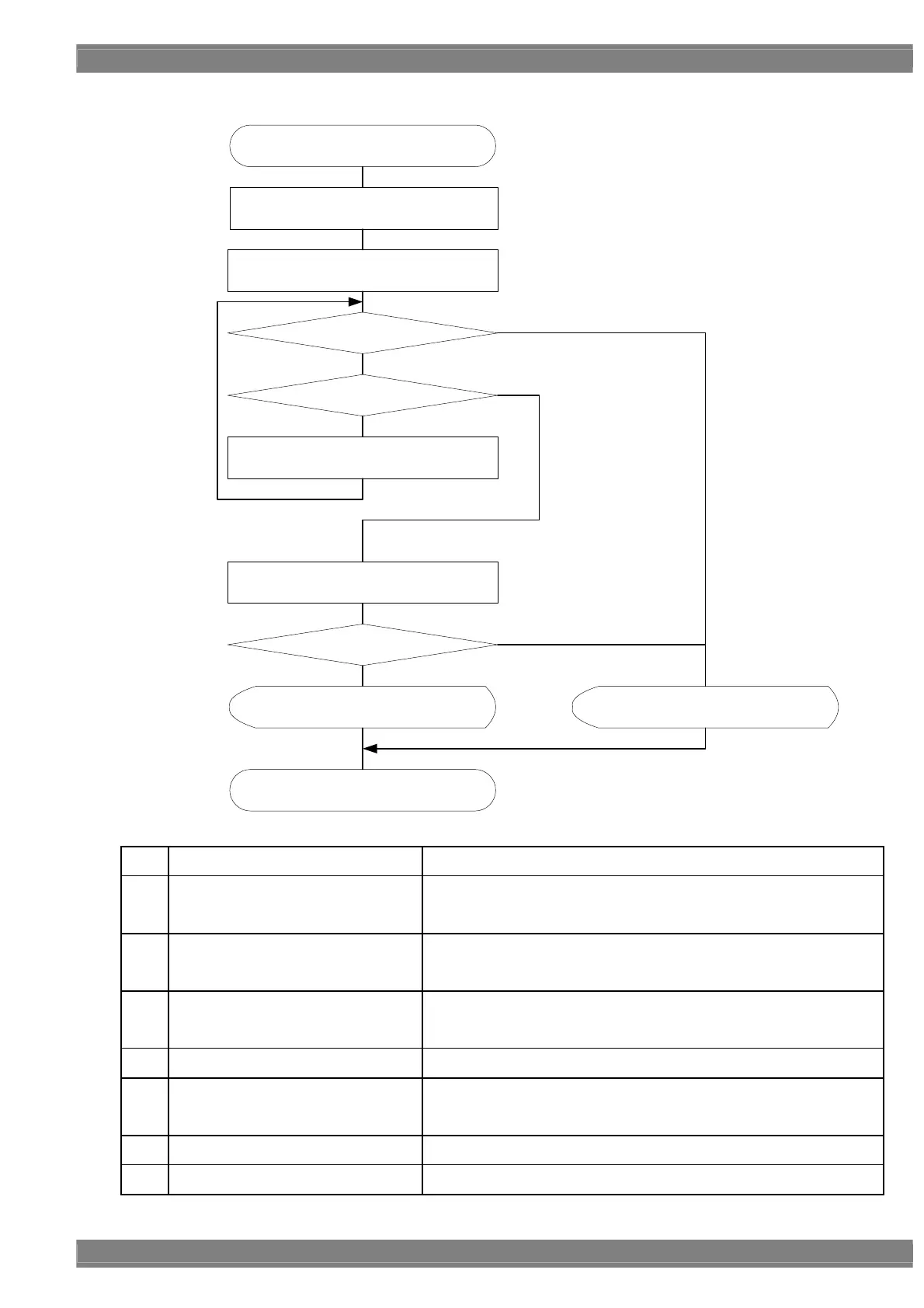

Sample1 Operation flow
【1】
START
【2】
【3】
END
Yes
FAILPASS
【4】
No
【5】
【6】
【7】
Yes
No
Yes
No
No.
Contents (Operation, condition to judge
Details
[1] Send <CDC_HEC_ReportState> Physical Address of Target : 0xFFFF
HEC Functionality State : HEC Active
[2] Send <CDC_HEC_InquireState> Terminating device 1 : VM-1823
Terminating device 2 : DUT (device under test)
[3] Whether DUT responds
<CDC_HEC_ReportState> or not.
[4] Whether DUT is HEC Active or not.
[5] Send <CDC_HEC_SetState> Terminating device 1 : VM-1823, Terminating device 2 : DUT
HEC Set State : Activate HEC
[6] Send Ping Source : VM-1823 IP Address, Destination : Target IP Address
[7] Whether there is response or not.
