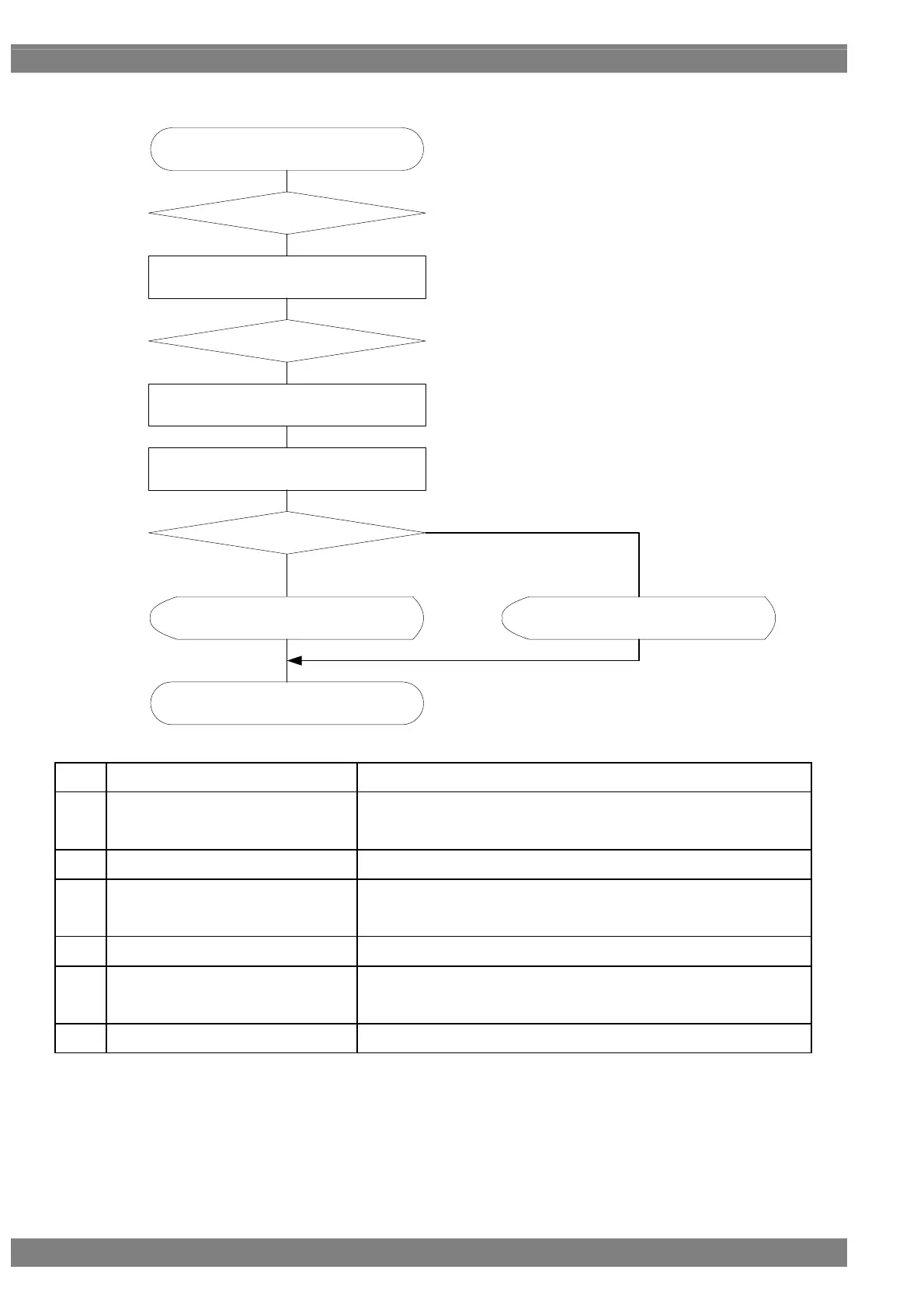

Sample2 Operation flow

START

【1】

END

FAILPASS

【2】

【5】

【6】

Yes

【3】

Yes

【4】

No.

Contents (Operation, condition to judge）

Details

[1] Whether DUT sends

<CDC_HEC_InquireState> or not.

[2] Send <CDC_HEC_ReportState>. HEC Functionality State : HEC Inactive

[3] Whether DUT sends

<CDC_HEC_SetState> or not.

HEC Set State : Activate HEC

[4] Send <CDC_HEC_ReportState> HEC Functionality State : HEC Active

[5] Send Ping Source : VM-1823 IP Address

Destination : Target IP Address

[6] Whether there is response or not.

Table of Contents5
Safety Precautions15
- Standard Accessories18
- Optional Accessories18
General Description19
Data Configuration20
Panel Parts and Their Functions21
- Names of the Keys and Their Functions23
- VG-870B/871B/873/874 Rear Panel25
- VG-870B/871B/873/874 Side Panel26
VG-870B/871B/873/874 Video Units27
- PC Analog Unit (VM-1811)28
- Displayport Unit (VM-182029
- K2K Itmds Quad Unit (VM-1824-A)30
- HDMI (3D, ARC) Unit (VM-1822)31
- Displayport, Edp Unit (VM-1826)32
Flow of Basic Operations33
- Selecting the Timing Data34
- Selecting the Pattern Data35
- Selecting the Actions37
Saving the Program Data40
Setting the Names41
Groups42
- Setting and Saving Groups43
Automatic Execution44
Displays Appearing on the VG-871B / 874 Fluorescent Display Tube46
Horizontal Timing Data Editing47
- Horizontal Timing Data Setting Procedure48
Vertical Timing Data Editing49
- Vertical Timing Data Setting Procedure52
- Concerning the Scanning Modes53
- Concerning Serration and EQP54
- Concerning EQP-Fp and EQP-Bp55
Output Settings59
- Setting the Sync Signals to on or off and Setting the Sync Signal Polarities60
- Setting the Level Mode62
- Setting the Aspect Ratio63
- Setting the Bit Length (Gray Scale) for Pattern Drawing65
- Selecting RGB or Ypbpr and Setting the Color Difference Coefficients67
- Setting the Analog Level69
- Setting the Digital Level70
- Audio Sweep Settings71
- Setting the Audio Level (Temporary Settings)72
- Digital Level Setting of 3D Pattern73
Hdmi75
- HDMI Setting Procedure77
- Infoframe/Packet79
- CEC Function101
- Embedded Audio, High Bit Rate Audio (Option)104
- Edid105
- VD-1673 (Hdmi Switcher)106
- Audio Return Channel107
- HDMI Ethernet Channel111
- Connectors and Pin Assignments123
- DVI Unit Setting Procedure124
- PC Analog Unit (DVI) Setting Procedure126
- DVI Data Transfer Systems127
- Sync Signal Polarity Setting130
K2K (Itmds, Itmds Quad) (VM-1824, VM-1824-A)131
- K2K (Itmds) Unit Setting Procedure132
- Itmds Data Transfer Systems136
- Sync Signal Polarity Settings162
Lvds163
- LVDS Setting Procedure164
- Data Transfer System168
- Bit Arrays181
Parallel184
- Parallel Data Setting Procedure185
Analog Component Signals188
- Setting the Analog Video Level189
- Composite Connector and Y/C Connector (S Connector)190
- Composite Signal Filter Settings191
- Setting the ID Signals (Y/C)192
D5 (D Connector)193
VGA (D-Sub)195
Scart196
- SCART Setting Procedure197
- Functions Available with TV Standard Signals198
- Concerning the Fast Blanking Signal199
Displayport / Edp200
- Displayport Setting Procedure203
- Displaying the Displayport Setting Information212
- Displayport Analysis215
- Embedded Audio219
- DDC/CI220
- Info Frame221
- Setting for Edp (for VM-1826)230
V-By-One HS (VM-1825)234
- V-By-One HS Setting Procedure235
- Data Transfer Systems238
- V-By-One HS Control271
Sdi (VM-1821)272
- Embedded Audio275
Analog Audio Settings276
Digital Audio278
Audio Sweep Settings285
Functions Available with287
Macrovision288
- Setting Procedure289
Closed Captions/V-Chip290
- Closed Caption Settings291
- V-Chip Settings296
- Changing the Data Superimposing Line301
Teletext302
- Setting Procedure303
- Description and Specifications307
- Setting Procedure308
Cgms -A/ID-1310
- Setting Procedure311
Color Bar Patterns313
- Color Bar Pattern Customizing314
Gray Scale Patterns317
- Gray Scale Pattern Customizing318
Ramp Patterns321
- Ramp Pattern Type Settings and Customizing322
Sweep Patterns325
- Sweep Pattern Selection326
Monoscope Patterns327
Raster Patterns329
Aspect Ratio Patterns331
- Aspect Ratio Pattern Type Settings and Customizing332
Checkerboard Patterns335
- Checkerboard Pattern Customizing336
Image/Opt339
- Option and Image Patterns Setting340
- Moving Images Settings (Option)341
- Marker (OPT No.76) Settings342
- D Image Pattern （OPT No.100）Setting344
- Setting the 3D Pattern (OPT No.101)347
- ABC Patterns354
- Color Settings355
- Character Patterns356
- Crosshatch Patterns357
- Dot Patterns359
- Circle Patterns360
- Burst Patterns363
Window Patterns365
- Window Pattern Settings366
Cursor Patterns369
- Cursor Operations372
Name/List374
- Name376
- Edid378
- DDC/CI381
- HDCP (High-Bandwidth Digital Content Protection)383
- HDMI List385
- Timing Data List386
- Image Pattern List387
- Subtitle388
Video Black/White Reversal390
- Simple Animation Settings393
Concerning the Planes395
Window Actions396
- Flickering398
- Level Up/Down Actions399
- Level Sequence Action400
Graphic Plane Scrolling Actions402
Character Plane Scrolling Actions404
Subtitle Scrolling406
And 0.125-Dot Scrolling Actions (Option)408
Motion Blur411
Scroll Sequence414
Lipsync416
- Black Insertion Action418
HDCP Settings419
- HDCP Execution420
  - Screen Displays During HDCP Execution422
  - HDCP/EDID/CEC Collective Display424
- System Settings427
- Copying and Erasing Data451
- Erasing User Optional Patterns461
- Erasing Subtitle462
- Erasing Automatic Executions463
Short-Cut Keys464
Information466
Data Initialization467
- Initializing the Short-Cut Data468
Formatting469
- Formatting CF Cards for Exclusive Use of Moving Images470
- Internal Memory Formatting and Data Installation471
Adjustments474
- Adjusting the Ypbpr Video Levels of the TV Encoder Unit475
- Adjusting the COMPOSITE/SCART Video Levels of the TV Encoder Unit476
Main Specifications477
- HDMI Unit478
- TV Encoder Unit (VM-1812)479
- DVI Unit (VM-1814)480
- DP Unit (VM-1820 / 1820A)481
- Dp/Edp Unit （VM-1826482
- K2K (Itmds, Itmds Quad) Unit (VM-1824, VM-1824-A)484
  - V-By-One HS Unit485
- SDI Unit (VM-1821)486
- Moving Image Module487
Connector Specifications488
Internal Data489
- Optional Pattern Data533
- User Character Pattern Data536
- Character Pattern Data541
- Tables of Standard Signals549
Precautionary Items555
- HDMI Unit (VM-1817, 1822, 1823)556
- TV Encoder Unit (VM-1812)558
- PC Analog Unit (VM-1811)559
- DVI Unit (VM-1814)560
- LVDS Unit (VM-1815)561
- Parallel Unit (VM-1816)562
- Displayport Unit (VM-1820, 1820A)563
- Dp/Edp Unit (VM-1826)566
- K2K (Itmds) Unit (VM-1824, 1824-A)568
- V-By-One HS Unit572
- Concerning the Maximum Current Consumption of the DDC (DP_PWR) Power Supply574
List of Error Messages575
- HDCP-Related Error578
