CDC Msg = 4 (Req Deactivation)
《Setting item》
(1) Act Physical Addr Set Physical Address of Activator.
(2) Dev Physical Addr1 Set Physical Address of the first Terminating Device.
(3) Dev Physical Addr2 Set Physical Address of the second Terminating Device.
《Criteria of result judgment》
If the below condition is fulfilled, the test result becomes PASS.
・ The device designated in the Act Physical Addr sends <CDC_HEC_SetState>[Dev Physical
Addr1][Dev Physical Addr2][HEC Deactivate].
Note : if the setting value of Act Physical Addr and Physical Address of VG main unit are same, the
result is FAIL.
Or, if the device set by Act Physical Addr does not exist, the result is FAIL.
CDC Msg = 5 (Notify Alive)
《Setting item》
(1) Send Interval1 Set interval of sending <CDC_HEC_NotifyAlive> (0-150sec)
(2) Send Interval2 Set interval of sending <CDC_HEC_NotifyAlive> (0-150sec)
(3) Send Interval3 Set interval of sending <CDC_HEC_NotifyAlive> (0-150sec)
(4) Send Time Suppose 3 times of sending <CDC_HEC_NotifyAlive> is counted as
one sequence, set how many sequence it is sent .

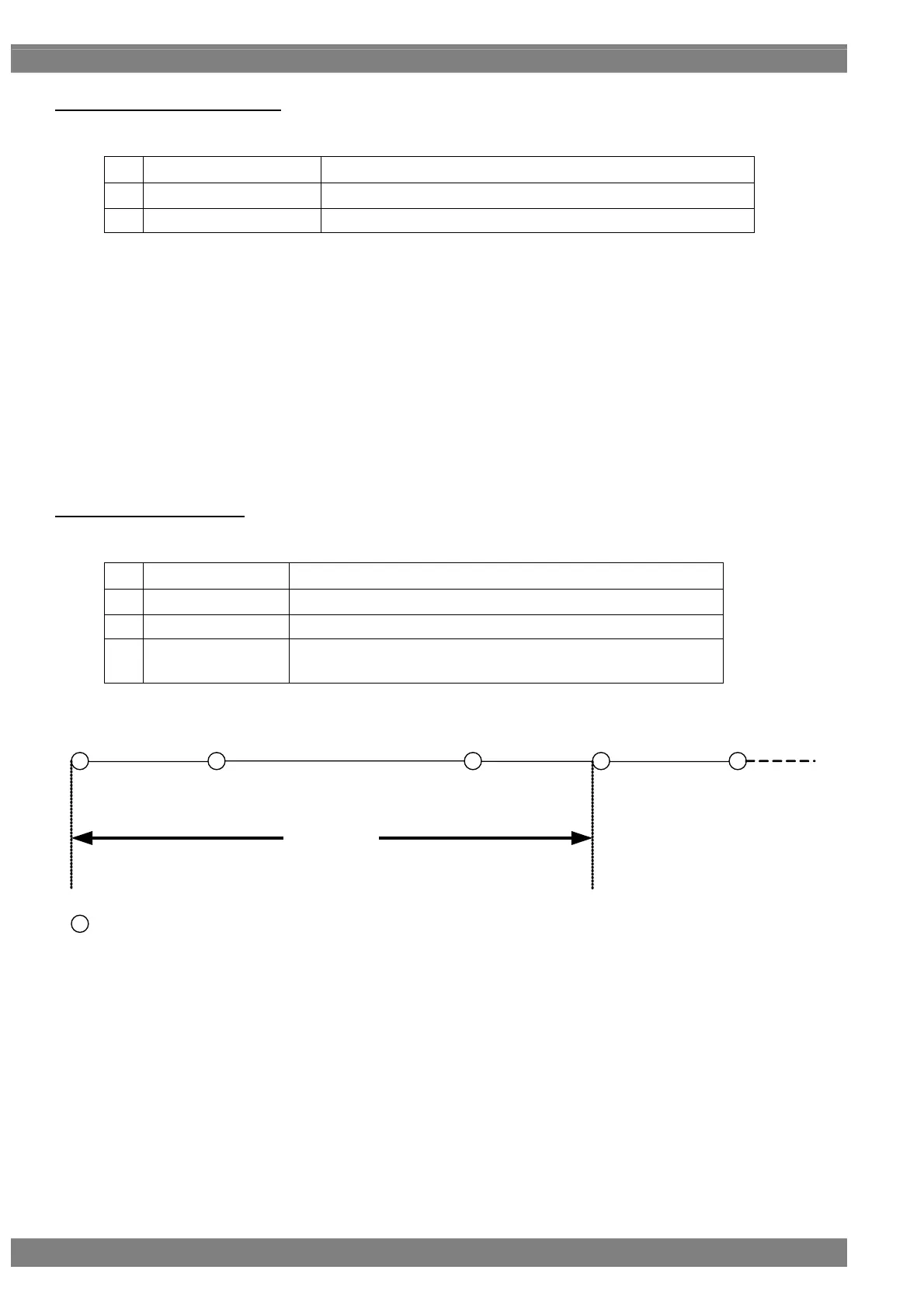

《Transmission image》
《Criteria of result judgment》
Under above condition, after <CDC_HEC_NotifyAlive> is sent, the result becomes PASS.
Send Interval1 Send Interval2 Send Interval3 Send Interval1
Send Time = 1
<CDC_HEC_NotifyAlive> 送信
