Chapter 6 PATTERN SETTINGS
333
[4] Checker BLOCK

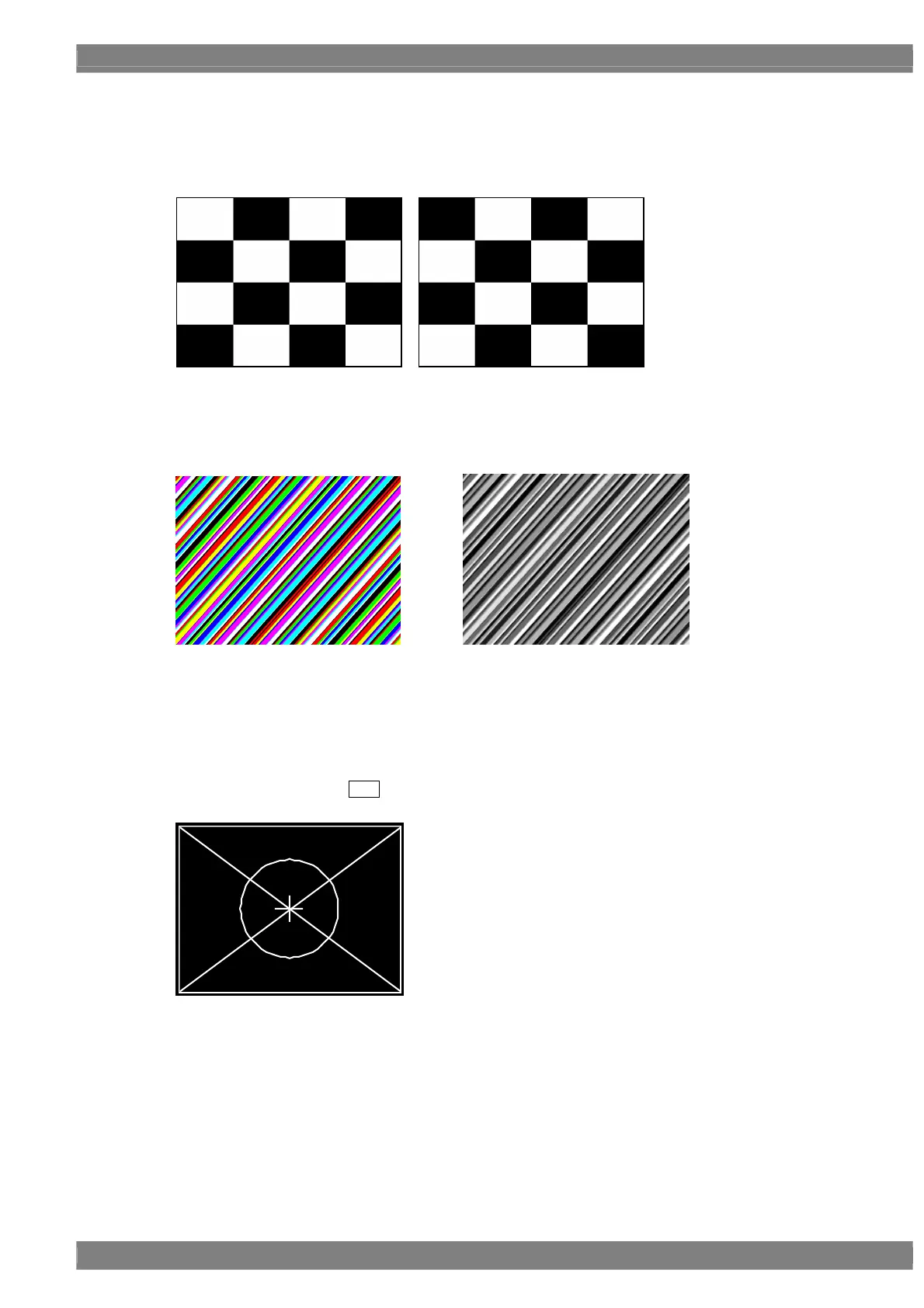

Checkerboard block by block patterns are output. The colors for the pattern on the left are reversed from the
colors in the pattern on the right.
The figures below show patterns where the number of blocks is defined as H=4/V=4.
LEFT RIGHT
[5] Slant Color Bar, [6] Slant Gray Bar
The different width color bar / gray bar in the slant direction. The right and the left output the same picture.
The drawing angle can be changed from 0 – 165 degrees.
[7] Rastar
A raster is output. The pattern is the same for the left and right.
[8] 
The , ,  and  of  × ABC pattern are superimposed and output. The pattern is the same for the left and
right.
