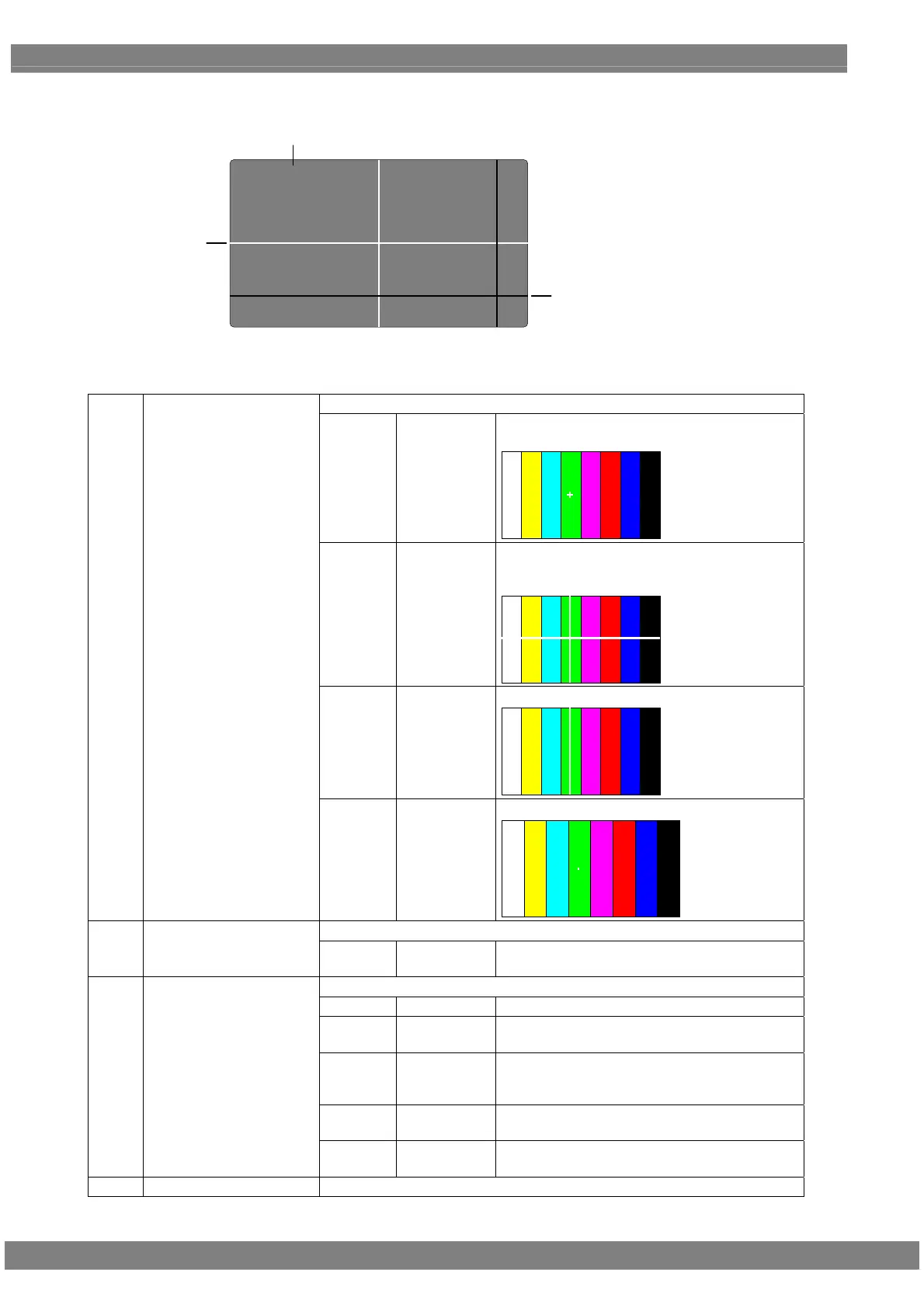

<Example of what is displayed>
<Table of cursor setting items>
The shape of the cursor is set here.
0
5 × 5 Cross
The cursor is displayed as a 5-pixel × 5-pixel
cross.
1
HV-Line
The cursor is displayed as a cross whose
horizontal and vertical dimensions extend to the
edges of the screen.
2
V-Line
The cursor is displayed as a vertical line.
(1)
Format (0-3)
3
Dot
The cursor is displayed as a 1-pixel × 1-pixel.
The amount of cursor movement when the cursor is to be moved is set here.(2)
Step
0 to 2 1 dot/10
dot/100 dot
The coordinate display method is set here.
0
OFF
No coordinates are displayed.
1
Normal-1
The horizontal and vertical coordinates and step
are displayed in 1-pixel increments.
2
Normal-2
The horizontal and vertical coordinates are
displayed in sub-pixel increments, and the step
is displayed in 1-pixel increments.
3
Reverse-1
Normal-1 is inverted at the top and bottom, and
displayed.
(3)
Coordinate
4
Reverse-2
Normal-2 is inverted at the top and bottom, and
displayed.
(4)
Blink
Whether the cursor is to blink and the blink interval are set here.
#1(GATE=541 :STEP10)
(R=2881 G=2882 B=2883)
Cursor 1
Cursor 2
Coordinates of target cursor (#1 = cursor 1, #2 = cursor 2 when Cursor 2 is ON)
