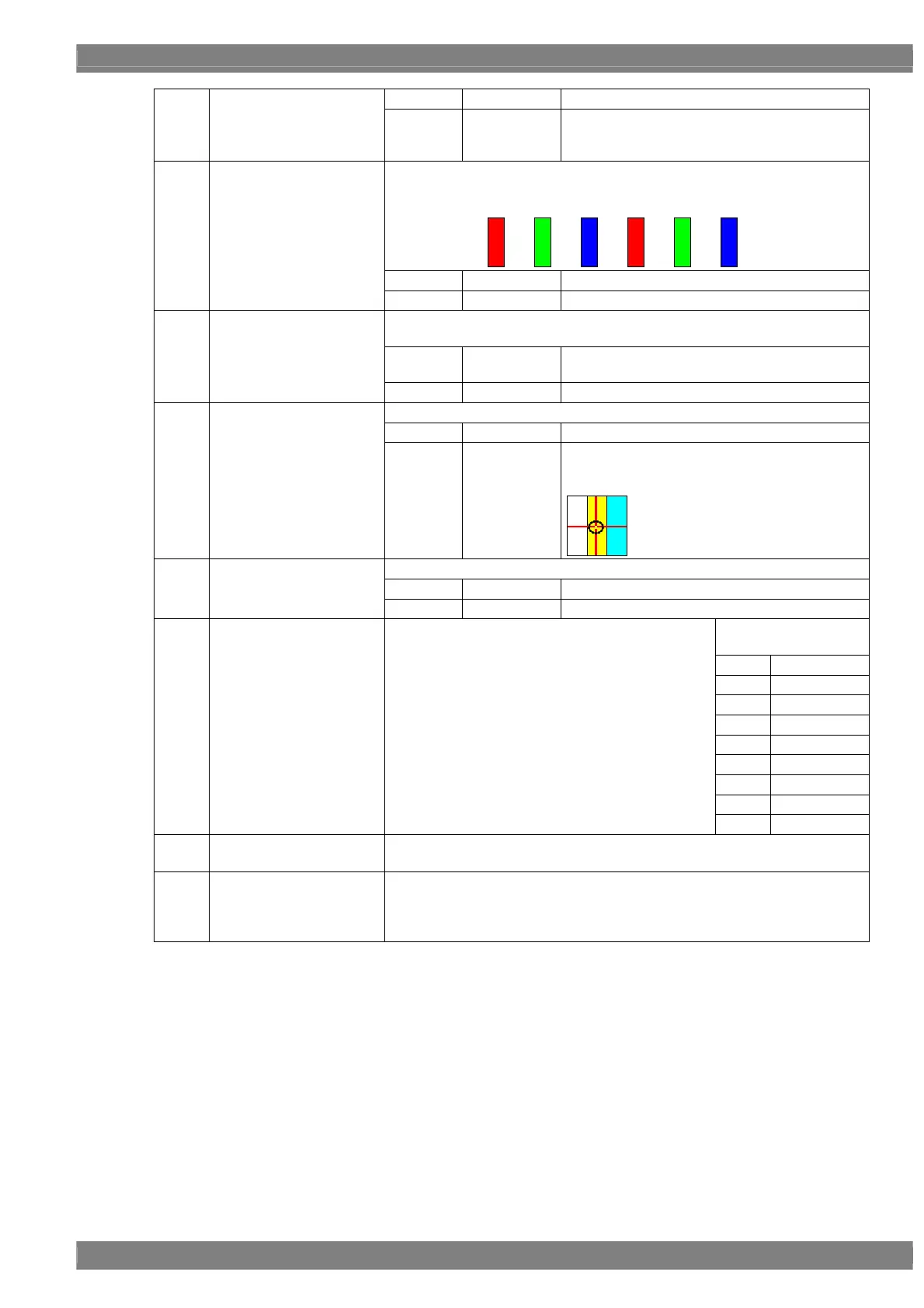

Chapter 6 PATTERN SETTINGS
353
0
None
The cursor does not blink.
1 to 7 1 V /2 V /4 V
/8 V /16 V /32
V /64 V
The cursor blinks for each 1 V (vertical sync
period) to 64 V and then goes off, and this is
repeated.
Whether the cursor is to be moved in 1-pixel increments or sub-pixel
increments is set here.
[Operation in sub-pixel increments]
0
OFF
The cursor is moved in 1-pixel increments.
(5)
Sub Pixel
1
ON
The cursor is moved in sub-pixel increments.
Whether the cursor is to be displayed on top of the test pattern or on top of
the background color set using the Color Back R G B item is set here.
0
OFF
The cursor is displayed on top of the background
color set by the Color Back R G B item.
(6)
Overlay
1
ON
The cursor is displayed on top of the test pattern.
The shape of the intersection is set here.
0 Normal The intersection is filled in as a cross.
(7)
Intersection
1 Space
The cursor is not displayed in the pixels of the
intersection and sub-pixels below it, but the
original background is displayed instead.
The display of the second cursor (cursor 2) is set here.
0
OFF
The cursor is not displayed.
(8)
Cursor 2
1
ON
The cursor is displayed.
Setting ranges by
color depth
8 BIT
0 to 255
9 BIT
0 to 511
10 BIT
0 to 1023
11 BIT
0 to 2047
12 BIT
0 to 4095
13 BIT
0 to 8191
14 BIT
0 to 16383
15 BIT
0 to 32767
(9)
Color Cursor 1 R G B
The cursor 1 color and level are set here.
The setting range differs depending on the color
depth.
16 BIT
0 to 65535
(10)
Color Cursor 2 R, G, B
The cursor 2 color and level are set here.
The setting procedure is the same as for the Color Cursor 1 R G B item.
(11)
Color Back R G B
The background color and level are set here. However, when On has been
selected as the Overlay item setting, the test pattern becomes the
background so that this setting is canceled.
The setting procedure is the same as for the Color Cursor 1 R G B item.
R G
⇀
↽
B R G B
⇀
↽
⇀
↽
⇀
↽
⇀
↽
Right
⇀
↽
Left
