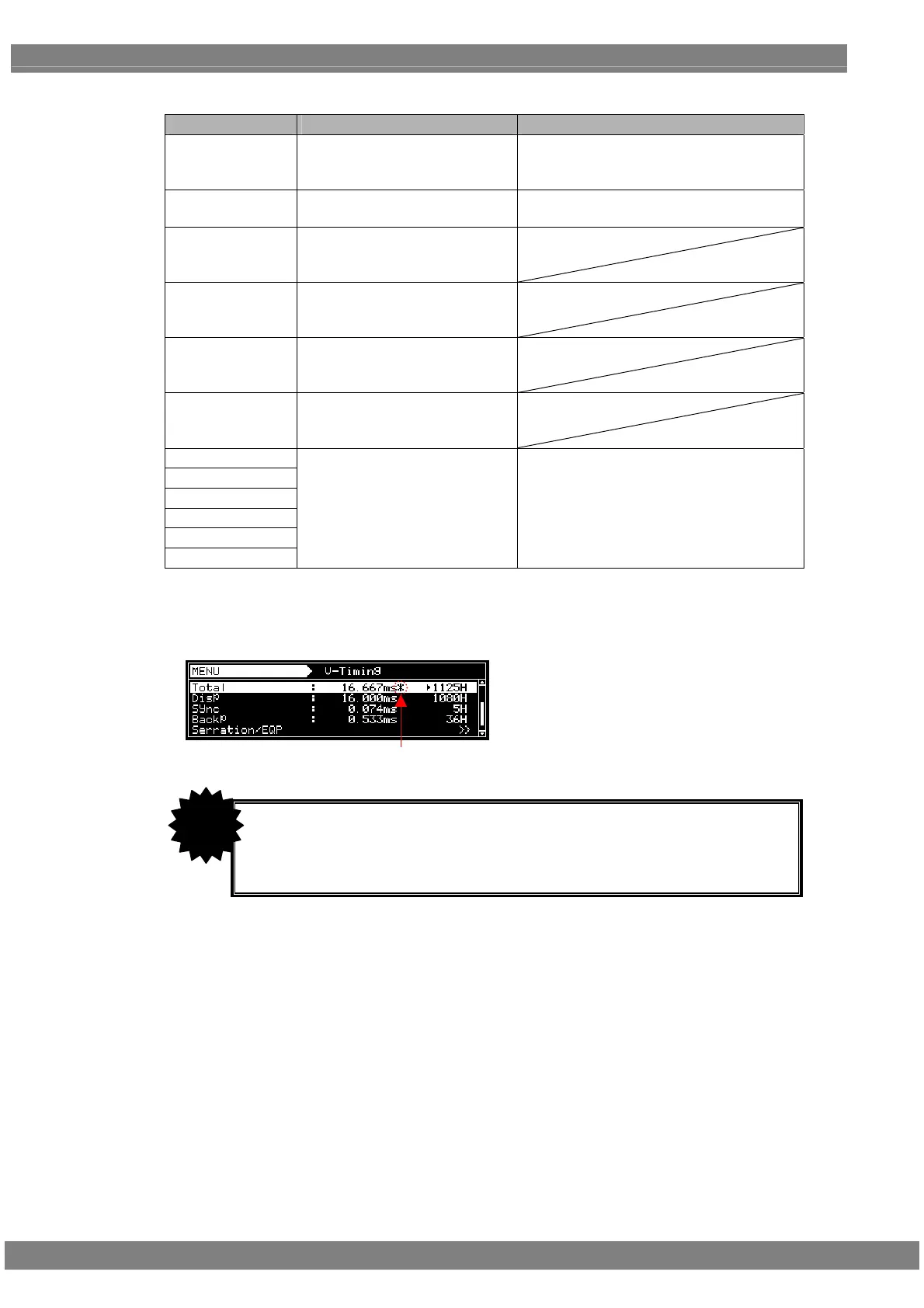

ASTRO VG Series User Manual

32
<For interlaced scanning>
Setting item
Setting range Parameter fixing function
Field-1 Total1
Time display: 0.00 to 999.999 ms
Dot display: 4.0 to 4096.0 H
(in 0.5H increments)
Fixed to ms setting using SHIFT+2
Fixed to H setting using SHIFT+3
Disp1
Time display: 0.00 to 999.999 ms
Dot display: 1 to 2048 H
Fixed to ms setting using SHIFT+0
Fixed to H setting using SHIFT+1
Sync1
Time display: 0.00 to 999.999 ms
Dot display: 1.0 to 99.0 H
(in 0.5H increments)
Backp1
Time display: 0.00 to 999.999 ms
Dot display: 0.0 to 4096.0 H
(in 0.5H increments)
VDstart1
Time display: 0.00 to 999.999 ms
Dot display: 0.0 to 4095.0 H
(in 0.5H increments)
VDline1
Time display: 0.00 to 999.999 ms
Dot display: 0.0 to 4095.0 H
(in 0.5H increments)
Field-2 Total2
Disp2
Sync2
Backp2
VDstart2
VDline2
Same as Field-1 Same as Field-1
* When a parameter is fixed, it is accompanied by an asterisk (*). Even when values other than ones
for parameters with an asterisk have been changed, the values of the parameters with the asterisks
remain fixed.
Example: When an ms setting has been fixed using SHIFT+2 for Total
When the time display (ms) is set for the items,
restrictions apply to these settings depending on the
H-period and other timing data used for drawing.
CAUTION
A
n asterisk is displayed here when the value is fixed.
