User's Manual 182 Document #: LTRT-68822

Mediant 2000

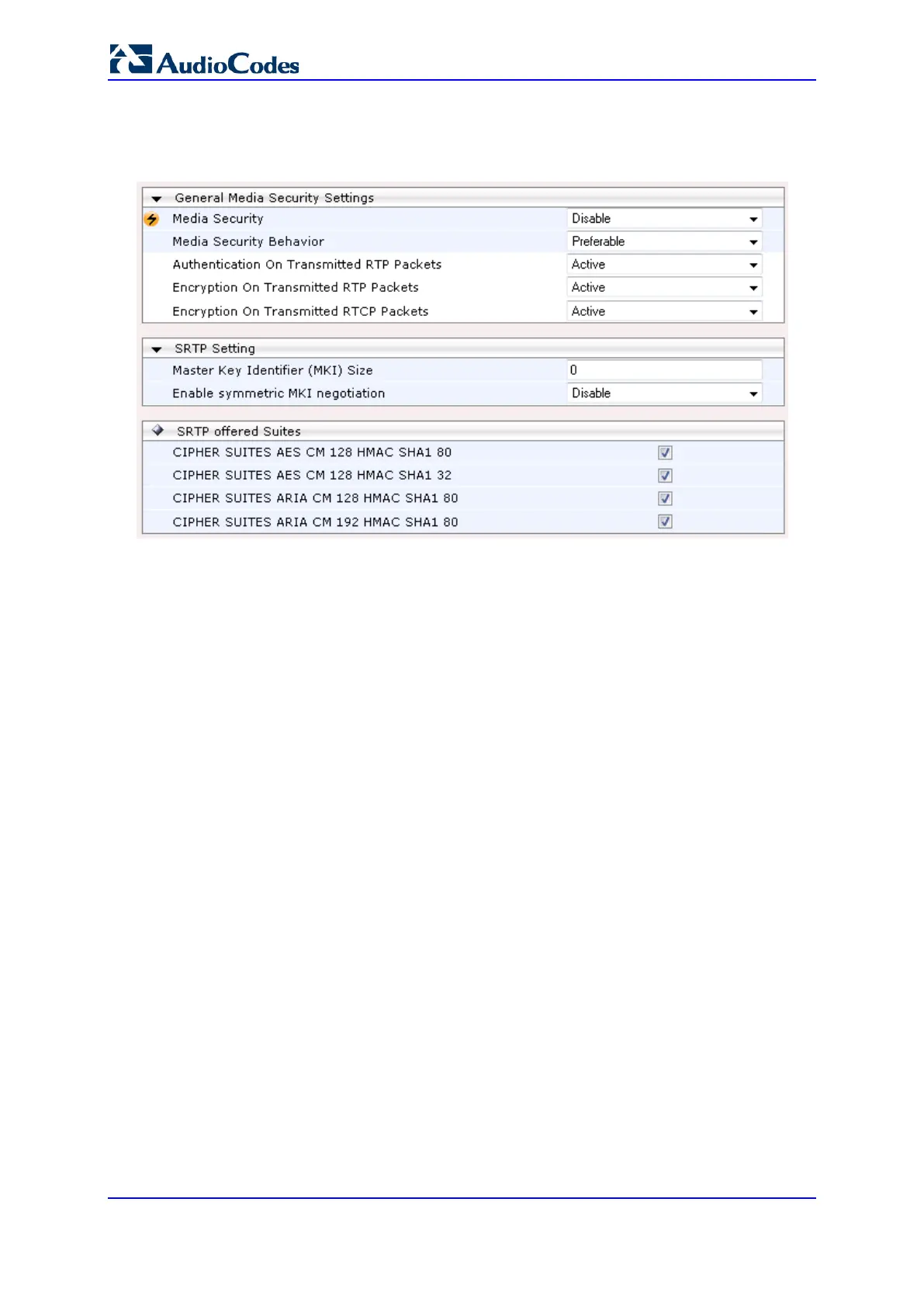

 To configure media security:

1. Open the Media Security page (Configuration tab > VoIP menu > Media submenu >

Media Security).

2. Configure the parameters as required.

3. Click Submit to apply your changes.

4. To save the changes to flash memory, see 'Saving Configuration' on page 396.

Default Chapter3
