Version 6.6 57 Mediant 2000
User's Manual 4. Web-Based Management
2. Click OK; you are logged off the Web session and the Web Login dialog box appears
enabling you to re-login, if required.
4.2 Viewing the Home Page

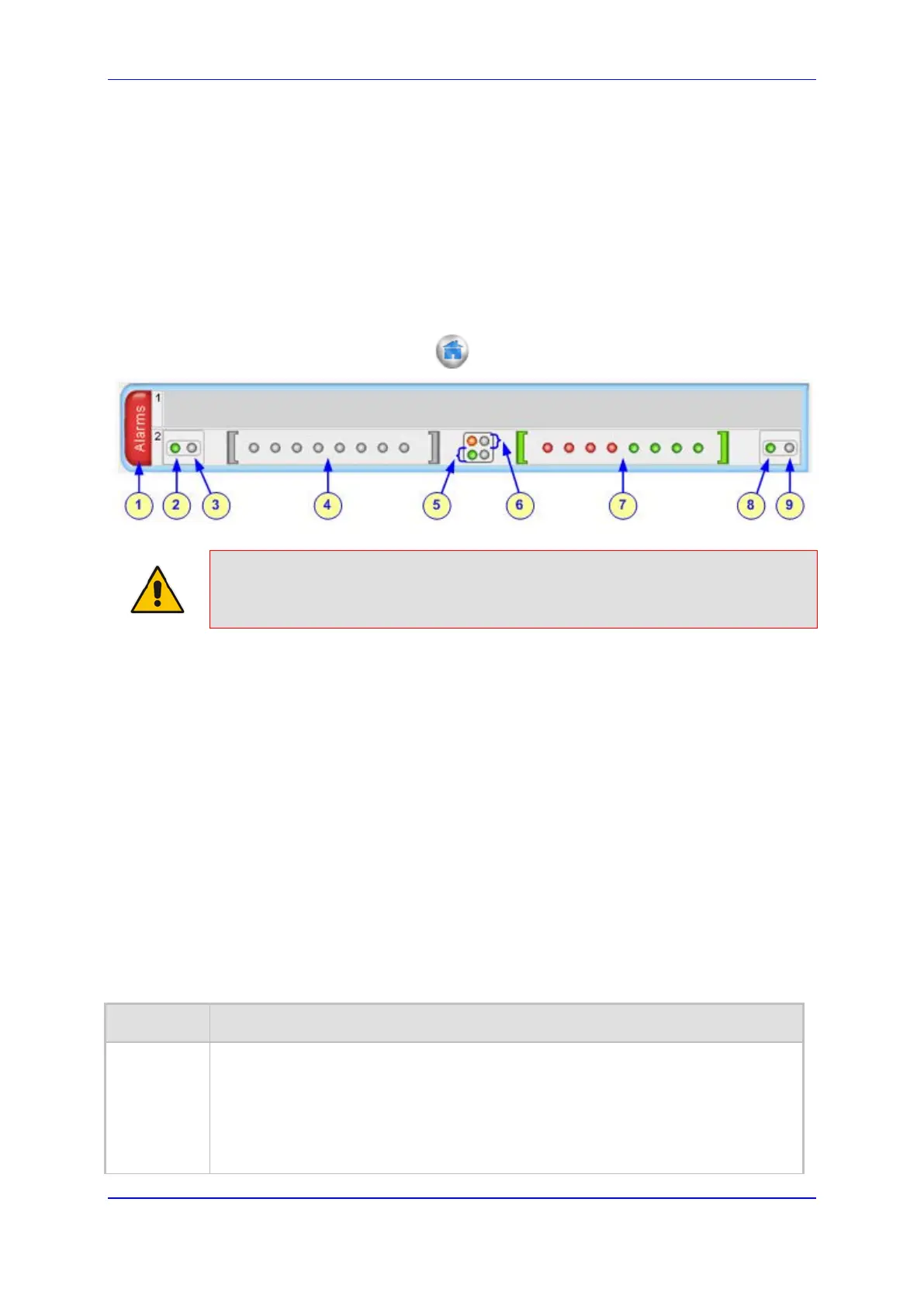

The Home page is displayed when you access the device's Web interface. The Home page
provides you with a graphical display of the device's front panel, showing color-coded
status icons for various operations device.
To access the Home page:
On the toolbar, click the Home icon.
Note: The displayed number of modules (trunks) depends on the ordered hardware
configuration.
In addition to the color-coded status information depicted on the graphical display of the
device, the Home page displays various read-only information in the General Information
pane:
IP Address: IP address of the device
Subnet Mask: Subnet mask address of the device
Default Gateway Address: Default gateway used by the device
Firmware Version: Software version running on the device
Protocol Type: Signaling protocol currently used by the device (i.e. SIP)
Gateway Operational State:
"LOCKED": device is locked (i.e. no new calls are accepted)
"UNLOCKED": device is not locked
"SHUTTING DOWN": device is currently shutting down
To perform these operations, see 'Basic Maintenance' on page 393.
The table below describes the areas of the Home page.
Home Page Description
Item # Description
1 Displays the highest severity of an active alarm raised (if any) by the device:
Green = No alarms
Red = Critical alarm
Orange = Major alarm
Yellow = Minor alarm
To view the active alarms, click this Alarms area to open the Active Alarms page
