Version 6.6 363 Mediant 2000

User's Manual 27. Overview

27.2.2 SAS Routing in Emergency State

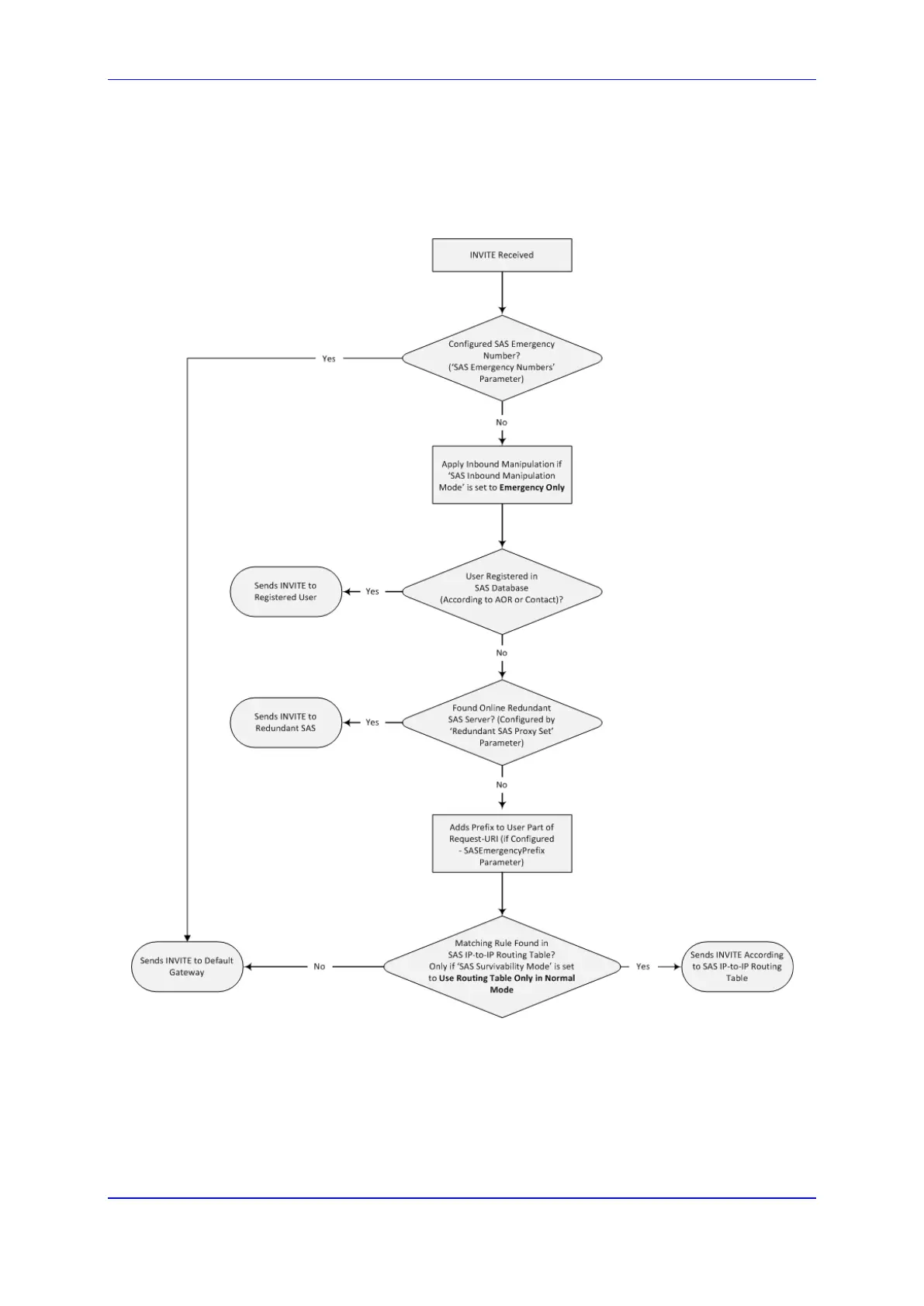

The flowchart below shows the routing logic for SAS in emergency state:

Figure 27-7: Flowchart for SAS Emergency State
