User's Manual 362 Document #: LTRT-68822

Mediant 2000

The flowchart below displays the routing logic for SAS in normal state for INVITE

messages received from the external proxy:

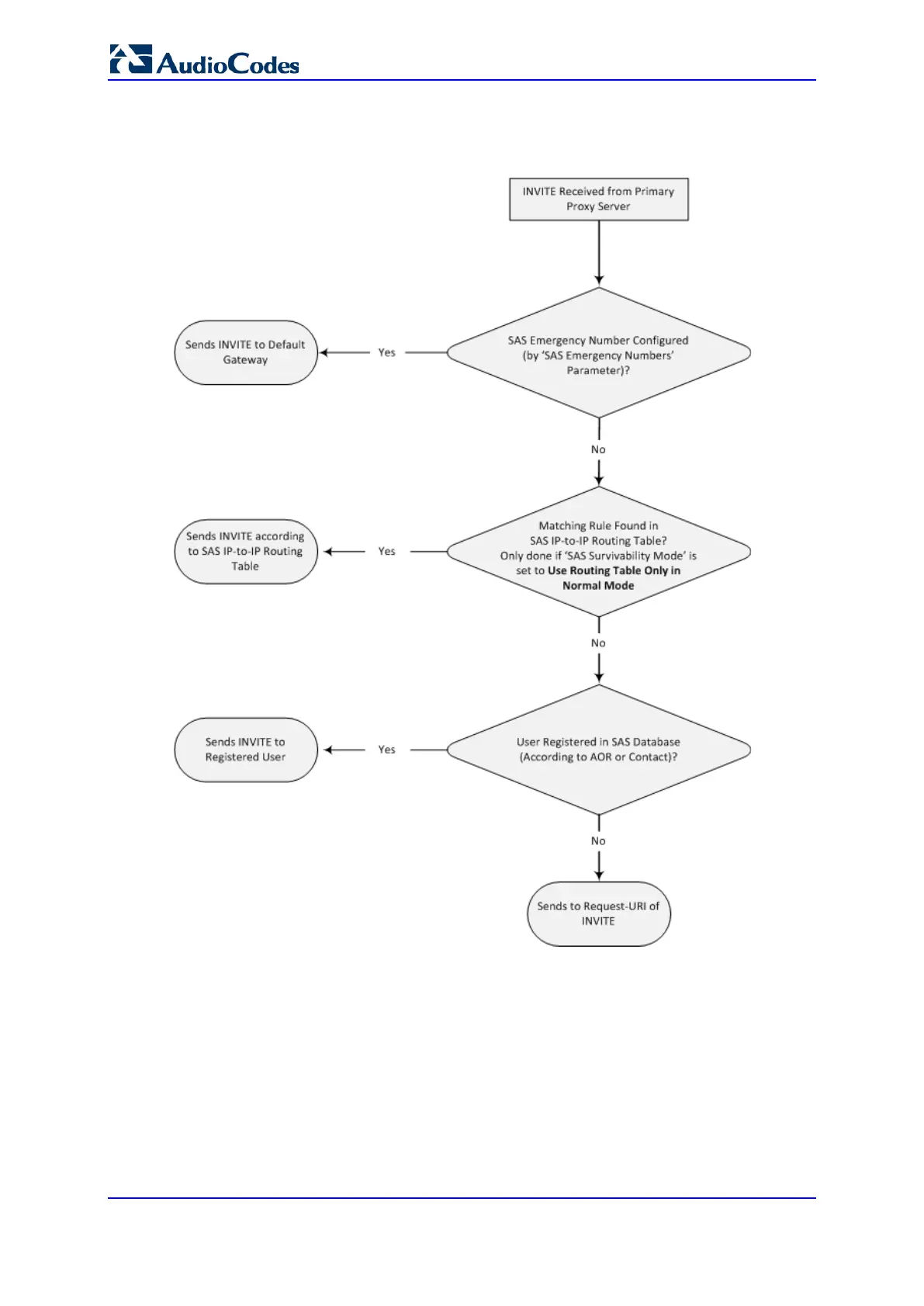

Figure 27-6: Flowchart of INVITE from Primary Proxy in SAS Normal State
