Version 6.6 309 Mediant 2000
User's Manual 24. Routing
24 Routing
This section describes the configuration of call routing rules.
24.1 Configuring General Routing Parameters
The Routing General Parameters page allows you to configure general routing parameters.
For a description of these parameters, see 'Configuration Parameters Reference' on page
503.
To configure general routing parameters:
1. Open the Routing General Parameters page (Configuration tab > VoIP menu > GW
and IP to IP submenu > Routing submenu > General Parameters).

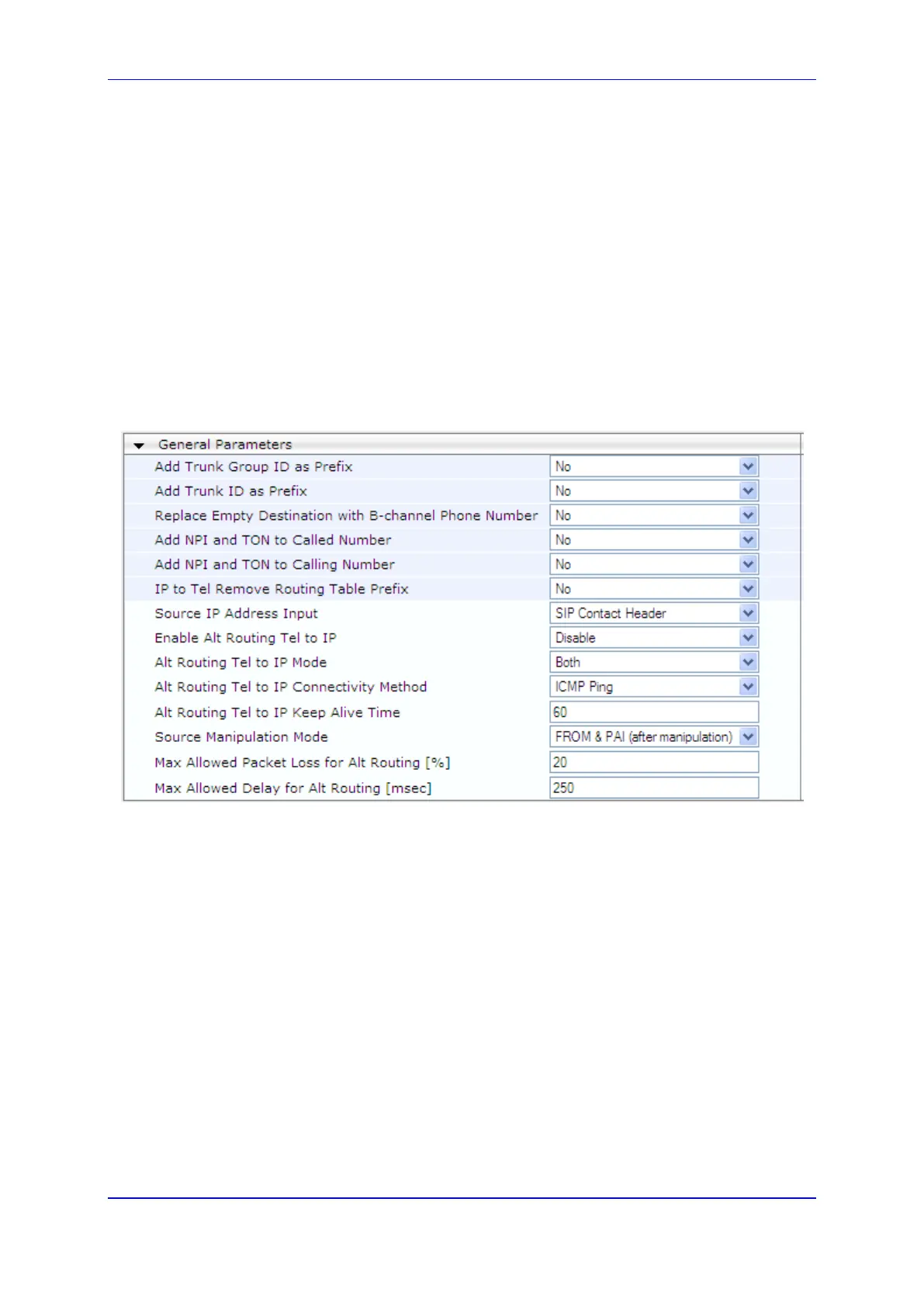

Figure 24-1: Routing General Parameters Page
2. Configure the parameters as required.
3. Click Submit to apply your changes.
24.2 Configuring Outbound IP Routing Table
The Outbound IP Routing Table page allows you to configure up to 180 Tel-to-IP or
outbound IP call routing rules. The device uses these rules to route calls from the Tel or IP
to a user-defined IP destination.
The Outbound IP Routing Table table provides two configuration areas:
Matching Characteristics: Characteristics of the incoming call. If the call
characteristics match a table entry, the routing rule is used to route the call to the
specified destination. One or more characteristics can be defined for the rule:
• Source IP Group (to which the call belongs)
• Source and destination Request-URI host name prefix
• Source Trunk Group (from where the call is received)
• Source (calling) and destination (called) telephone number prefix and suffix
• Source and destination Request-URI host name prefix
