User's Manual 370 Document #: LTRT-68822
Mediant 2000
28.4.1 Gateway with SAS Outbound Mode
The procedure below describes how to configure the Gateway application with SAS
outbound mode.
 To configure Gateway application with SAS outbound mode:
1. Define the proxy server address for the Gateway application:
a. Open the Proxy & Registration page (Configuration tab > VoIP menu > SIP
Definitions submenu > Proxy & Registration).
b. From the 'Use Default Proxy' drop-down list, select Yes.

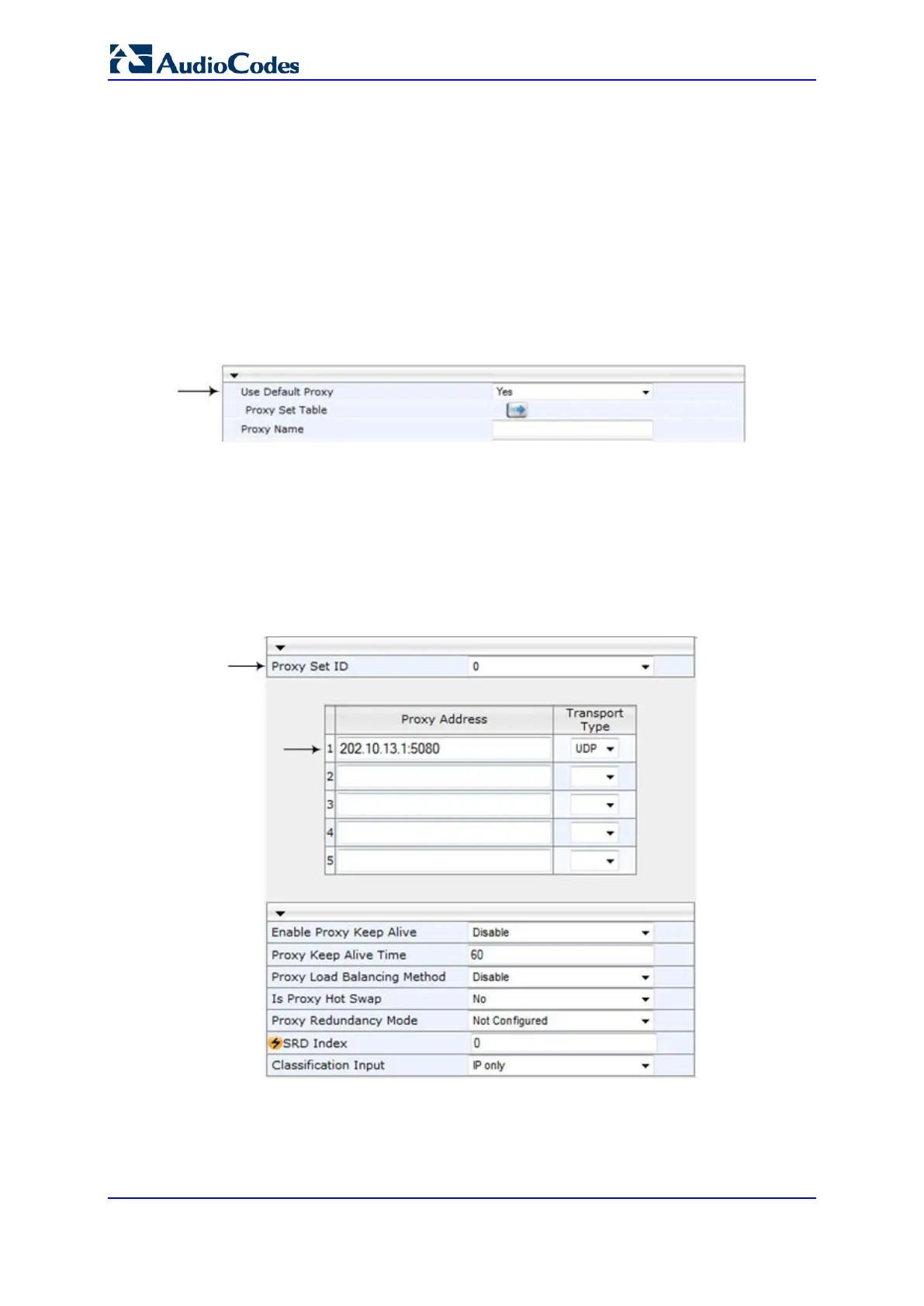

Figure 28-3: Enabling Proxy Server for Gateway Application
c. Click Submit.
d. Open the Proxy Sets Table page (Configuration tab > VoIP menu > Control
Network submenu > Proxy Sets Table).
e. From the 'Proxy Set ID' drop-down list, select 0.
f. In the first 'Proxy Address' field, enter the IP address and port of the device (in
the format x.x.x.x:port). This is the port as defined in the 'SAS Local
UDP/TCP/TLS Port' field (see 'Configuring Common SAS Parameters' on page
366).
Figure 28-4: Defining Proxy Server for Gateway Application
g. Click Submit.
2. Disable use of user=phone in SIP URL:
a. Open the SIP General Parameters page (Configuration tab > VoIP menu > SIP
Definitions submenu > General Parameters).
