Version 6.6 361 Mediant 2000

User's Manual 27. Overview

27.2 SAS Routing

This section provides flowcharts describing the routing logic for SAS in normal and

emergency states.

27.2.1 SAS Routing in Normal State

The flowchart below displays the routing logic for SAS in normal state for INVITE

messages received from UAs:

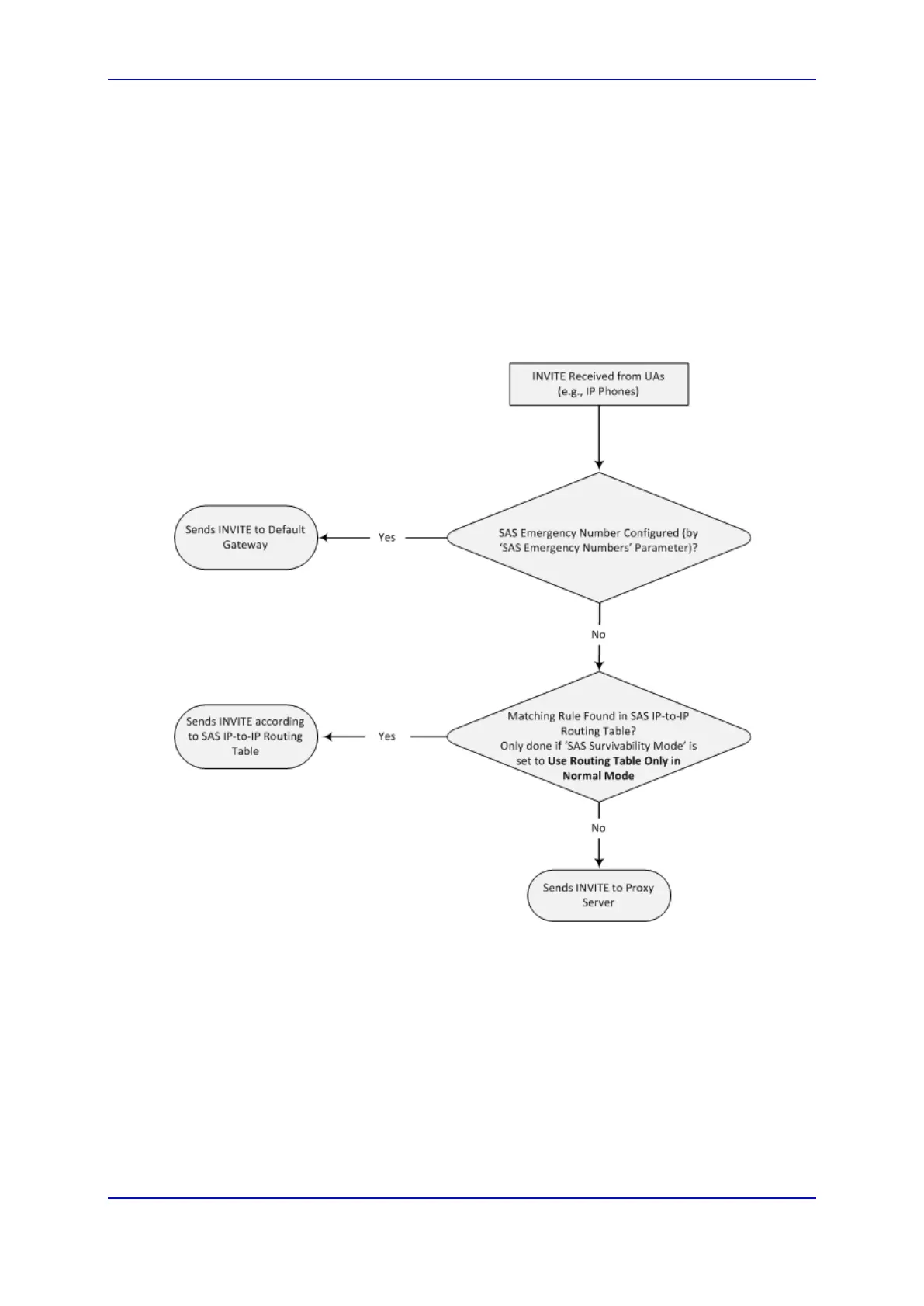

Figure 27-5: Flowchart of INVITE from UA's in SAS Normal State
