User's Manual 454 Document #: LTRT-68822
Mediant 2000
39.9 Viewing IP Connectivity
The IP Connectivity page displays on-line, read-only network diagnostic connectivity
information on all destination IP addresses configured in the Outbound IP Routing Table
page (see 'Configuring Outbound IP Routing Table' on page 309).
Note: The information in columns 'Quality Status' and 'Quality Info' (per IP address) is
reset if two minutes elapse without a call to that destination.
 To view IP connectivity information:
1. In the Routing General Parameters page, set the 'Enable Alt Routing Tel to IP'
parameter (AltRoutingTel2IPMode) to Enable or Status Only (see 'Configuring
General Routing Parameters' on page 309).
2. Open the IP Connectivity page (Status & Diagnostics tab > VoIP Status menu > IP
Connectivity).

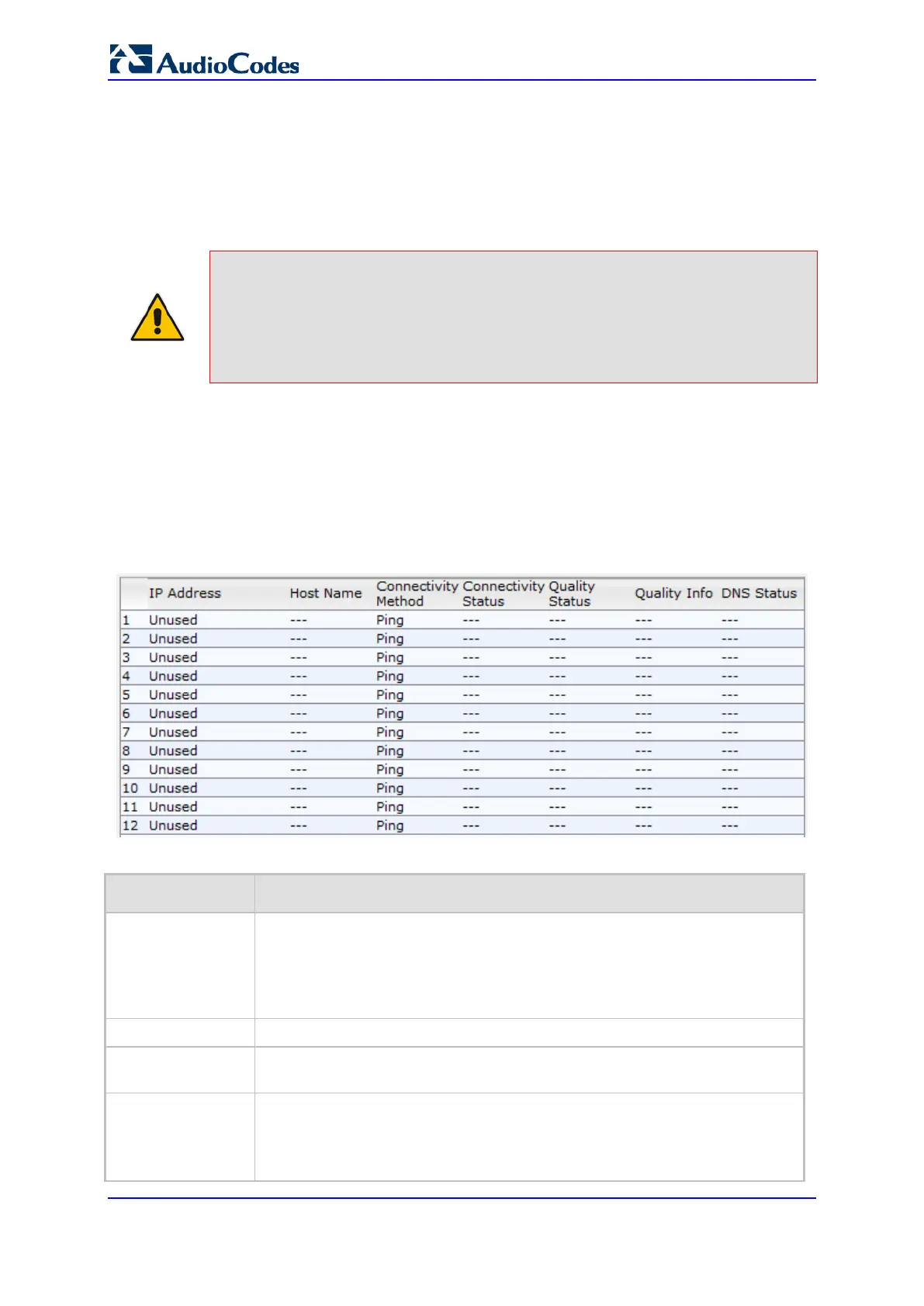

Figure 39-9: IP Connectivity Page
IP Connectivity Parameters
Column Name Description
IP Address
The IP address can be one of the following:
 IP address defined as the destination IP address in the Outbound IP
Routing Table.
 IP address resolved from the host name defined as the destination IP
address in the Outbound IP Routing Table.
Host Name
Host name (or IP address) as defined in the Outbound IP Routing Table.
Connectivity
Method
The method according to which the destination IP address is queried
periodically (ICMP ping or SIP OPTIONS request).
Connectivity
Status
The status of the IP address' connectivity according to the method in the
'Connectivity Method' field.
 OK = Remote side responds to periodic connectivity queries.
 Lost = Remote side didn't respond for a short period.
