User's Manual 446 Document #: LTRT-68822
Mediant 2000
Icon
Color
Trunk
Purple
Lower Layer Down (DS3 physical
layer is disabled)

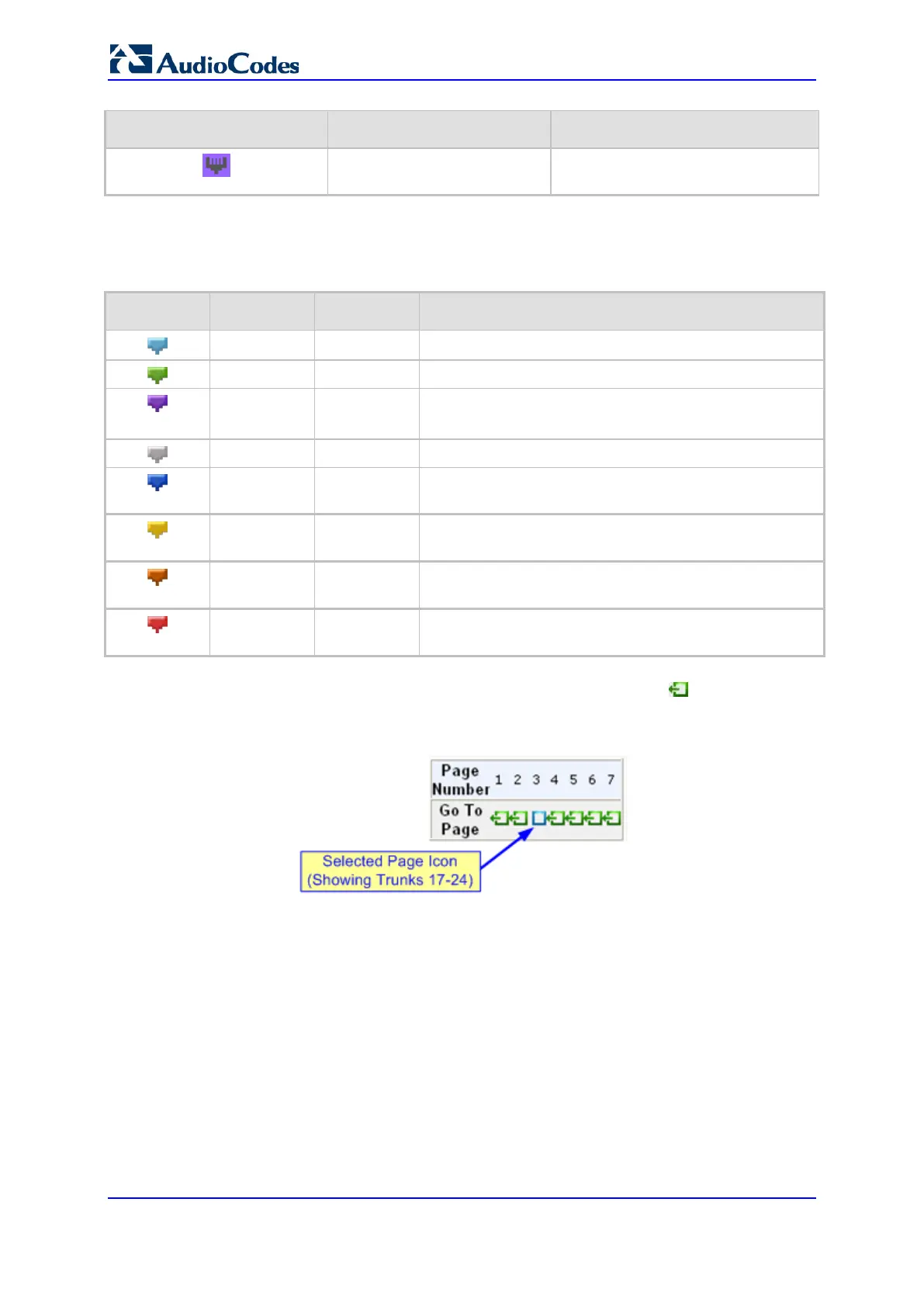

The status of the channels is depicted by color-coded icons, as described in the table
below:
Description of Color-Coded Icons for Channel Status
Icon Color Label Description
Light blue
Inactive
Channel is configured, but currently has no calls
Green
Active
Call in progress (RTP traffic) and no alarms
Purple
SS7
Channel is configured for SS7
Note: Currently, SS7 is not supported.
Gray
Non Voice
Channel is not configured
Blue
ISDN
Signaling
Channel is configured as a D-channel
Yellow
CAS
Blocked
-
Dark Orange
Maintenance
B-channel has been intentionally taken out of service
due to maintenance
Red
Out Of
Service
B-channel is out of service
2. To view the next consecutive eight trunks, click the Go To Page icon, described in
the figure below:
Figure 39-1: Example of a Selected Page Icon for Displaying Trunks 17-24
To Next Page
